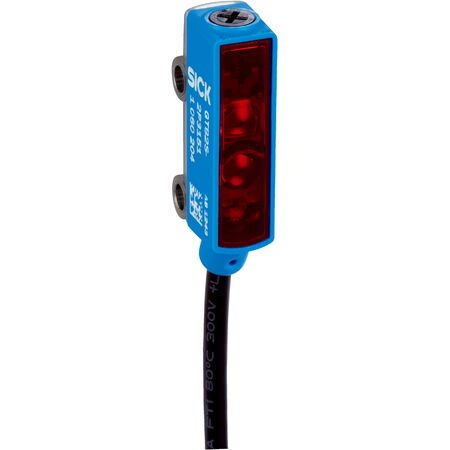

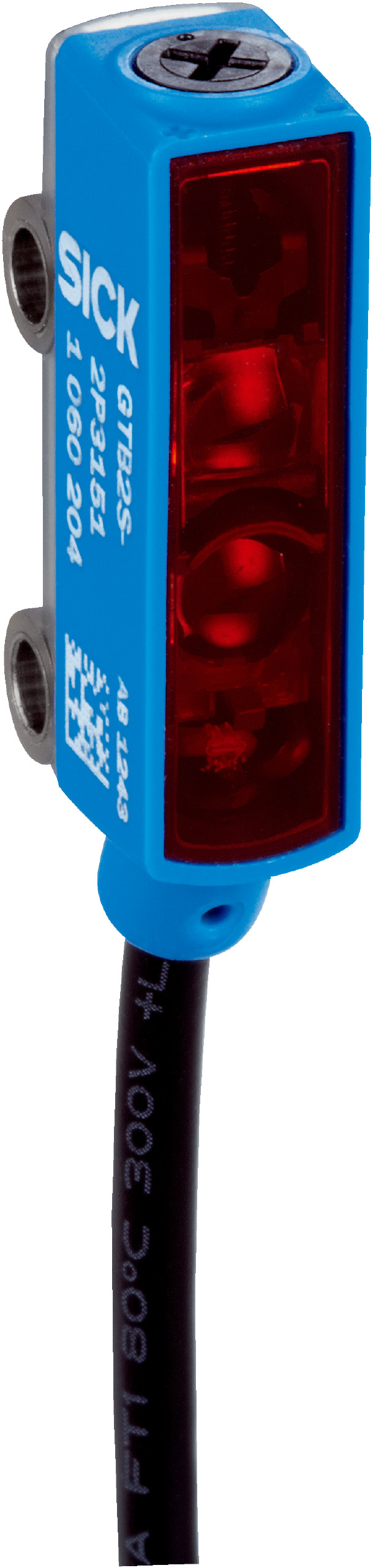

Photoelectric Proximity Sensor GTB2S-E5451 | Background Suppression | IP67 Rated | 25mm to 90mm Sensing Range | by SICK
The Photoelectric Proximity Sensor GTB2S-E5451 is designed for industrial automation, featuring a sensing range of 25 mm to 90 mm and background suppression technology. With a robust IP67 rating, it ensures reliable performance in harsh environments, making it ideal for manufacturing process control and safety monitoring in machinery.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 25 mm to 90 mm
- Light source: PinPoint LED, 640 nm wavelength
- Adjustment: Potentiometer, 3 turns
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching output: NPN, dark switching
- Output current max: ≤ 50 mA
- Response time: < 0.6 ms
- Switching frequency: 800 Hz
- Connection type: Cable with M8, 3-pin connector, 200 mm length
- Cable material: Plastic, PVC
- Enclosure rating: IP67
- Operating temperature: -25°C to +50°C
- Storage temperature: -40°C to +75°C
- Housing material: Plastic, ABS
- Optics material: Plastic, PMMA
- Weight: 17.9 g
- Dimensions (H x L x W): 28mm x 14mm x 8mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Rectangular housing design with visible red light
- Sensing range from 25 mm to 90 mm
- PinPoint LED light source with 640 nm wavelength
- Potentiometer adjustment with 3 turns
- NPN switching output with dark switching mode
- High switching frequency of 800 Hz
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -25°C to +50°C
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with photoelectric sensor wiring and safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption of 20 mA reduces energy usage
- Durable IP67 housing extends product life and reduces waste
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK GTB2S-E5451 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
