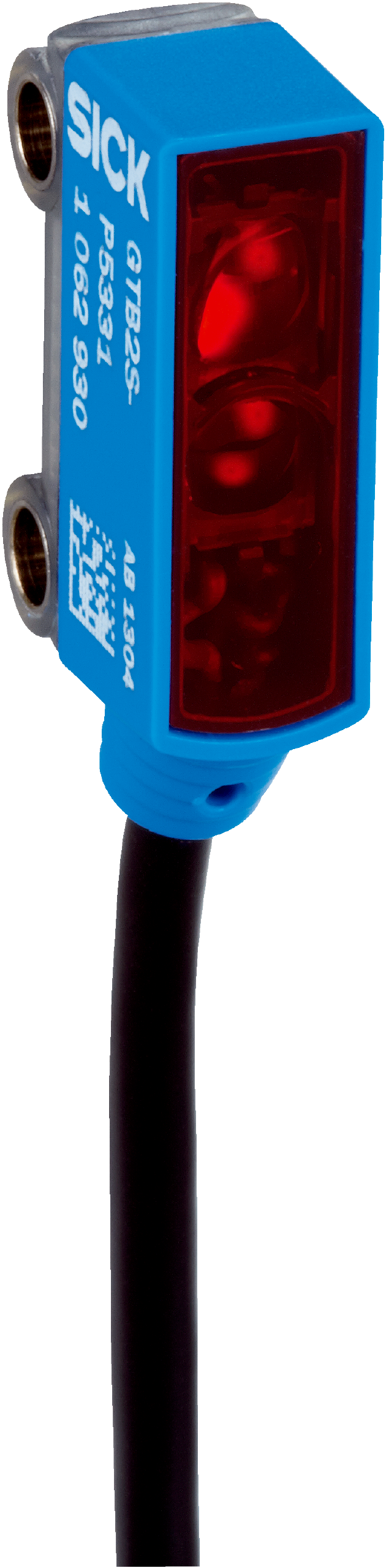

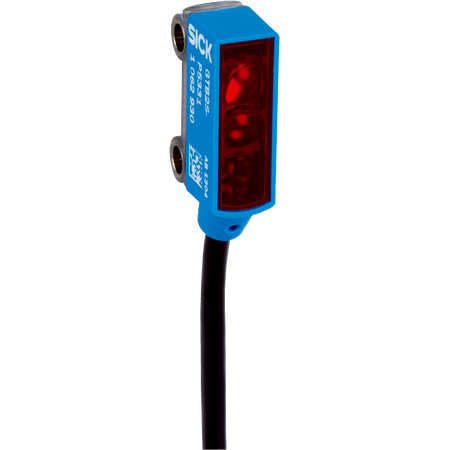

Photoelectric Proximity Sensor GTB2S-N1331 | IP67 Rated | Fast Response Time | 800 Hz Switching Frequency | by SICK
The Photoelectric Proximity Sensor GTB2S-N1331 is designed for precision in industrial automation, featuring a fast response time of under 0.6 ms and an impressive switching frequency of 800 Hz. With an IP67 rated enclosure, it ensures reliable performance in harsh environments, making it ideal for detecting small objects and position sensing in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Photoelectric proximity sensor, Background suppression sensor, SICK proximity sensor, GTB2S sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching output: NPN, light switching mode
- Output current max: ≤ 50 mA
- Response time: < 0.6 ms
- Switching frequency: 800 Hz
- Cable: 3-wire, 2 m length, PVC material
- Housing material: Plastic ABS
- Optics material: Plastic PMMA
- Enclosure rating: IP67
- Operating temperature: -25 °C to +50 °C
- Storage temperature: -40 °C to +75 °C
- Light source: PinPoint LED, 640 nm wavelength
- Light spot size: Ø 3 mm at 15 mm distance
- Dimensions (H x L x W): 22mm x 14mm x 8mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Rectangular housing design with visible red light
- Sensing range from 5 mm to 30 mm
- PinPoint LED light source with 640 nm wavelength
- High switching frequency of 800 Hz
- IP67 rated enclosure for dust and water protection
- Cable connection with 3-wire, 2 m PVC cable
- Fast response time under 0.6 ms
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper wiring and sensor alignment.
Applications
- Detecting small objects in industrial automation
- Position sensing in manufacturing processes
- Object detection in packaging and material handling
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with 20 mA current draw
- Durable IP67 rated housing reduces waste from replacements
- Complies with China RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK GTB2S-N1331 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
