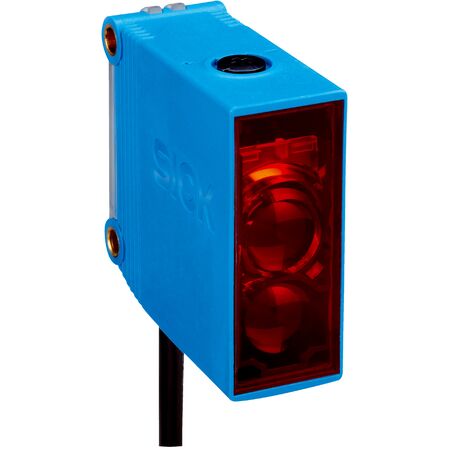

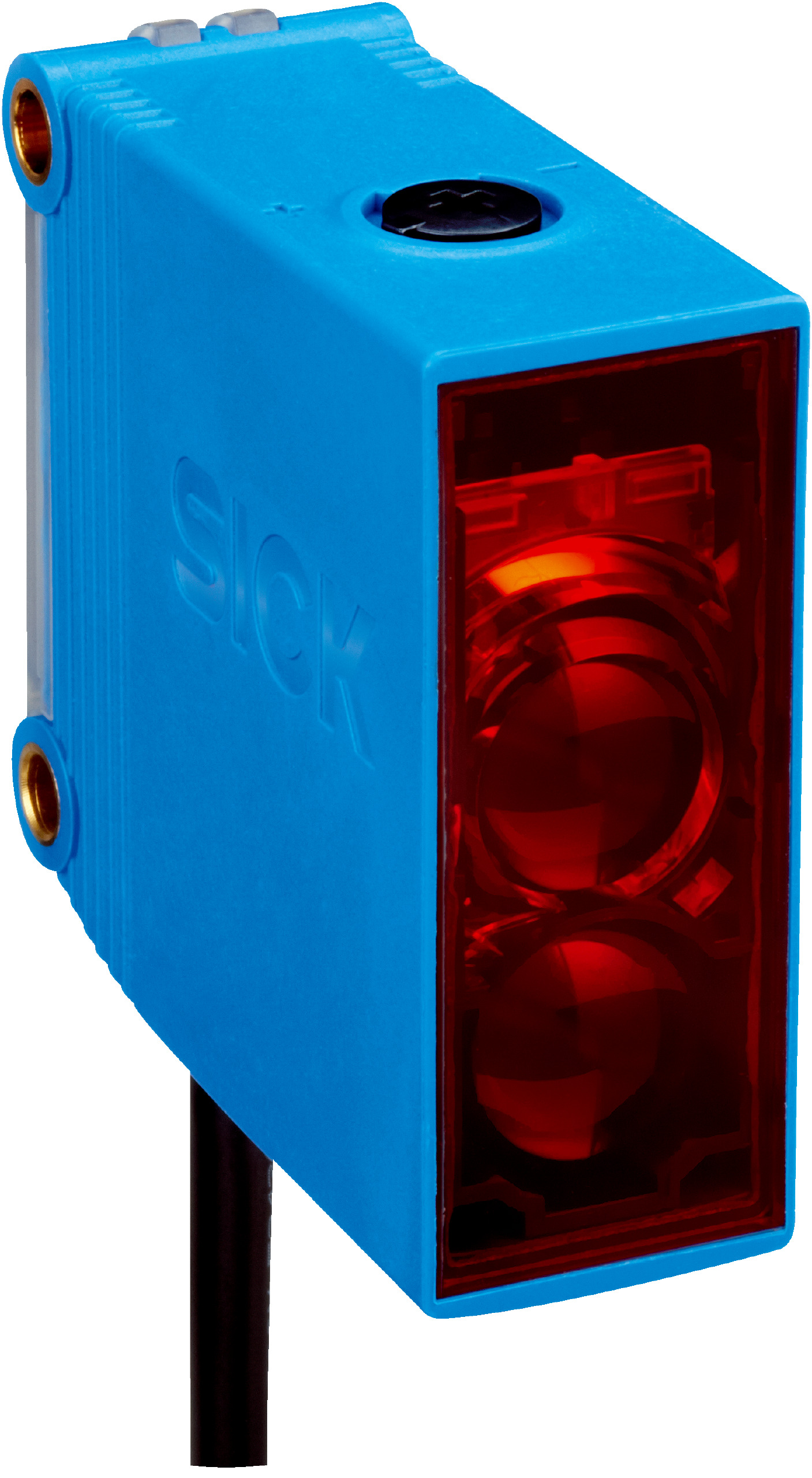

Photoelectric Proximity Sensor GTE10-R3811 | 20mm to 1300mm Range | IP67 Rated | by SICK
The GTE10-R3811 Photoelectric Proximity Sensor is designed for industrial automation, featuring a sensing range from 20 mm to 1,300 mm and a visible red light emission. With a robust IP67 rating, it ensures reliable performance in harsh environments, making it ideal for safety monitoring and object detection in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor, energetic
- Sensing range max.: 20 mm to 1,300 mm
- Type of light: Visible red light
- Light source: PinPoint LED
- Light spot size at 1,400 mm: Ø 28 mm
- Wave length: 625 nm
- Adjustment: Potentiometer, 270°
- Supply voltage: 24 V AC/DC to 240 V AC/DC
- Ripple: < 10%
- Power consumption: ≤ 2.5 VA
- Switching output: Relay, SPDT, electrically isolated
- Switching mode: Light/dark switching
- Max switching load: 0.11 A (250 V DC), 3 A (30 V DC), 3 A (250 V AC)
- Response time: ≤ 10 ms
- Switching frequency: 20 Hz
- Connection type: Cable, 5-wire, 2 m, PVC
- Protection class: II
- Enclosure rating: IP67
- Relay switching cycles min.: 100,000 cycles (3 A)
- Usage category: DC-13 and AC-15 according to EN 60947-1
- Electromagnetic compatibility: EN 60947-5-2, EN 61000-6-3
- Operating temperature: –30 °C to +60 °C
- Storage temperature: –40 °C to +70 °C
- Housing material: Plastic, ABS/PMMA
- Dimensions (H x L x W): 50mm x 52mm x 20mm
- Weight: 0.115 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Rectangular housing design with visible red light emission
- Sensing range from 20 mm up to 1,300 mm
- PinPoint LED light source with 625 nm wavelength
- Potentiometer adjustment with 270° rotation
- Relay SPDT electrically isolated switching output
- Light/dark switching mode
- High protection rating IP67 suitable for harsh environments
- Wide supply voltage range from 24 V AC/DC to 240 V AC/DC
- Fast response time ≤ 10 ms and switching frequency 20 Hz
- Robust plastic ABS/PMMA housing material
- Operating temperature range from –30 °C to +60 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption of ≤ 2.5 VA reduces energy usage
- Durable IP67 rated housing minimizes waste through long service life
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK GTE10-R3811 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
