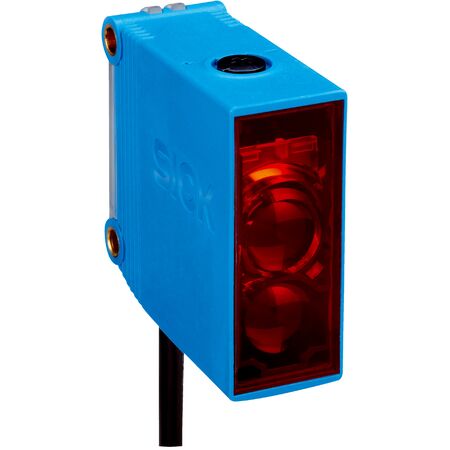

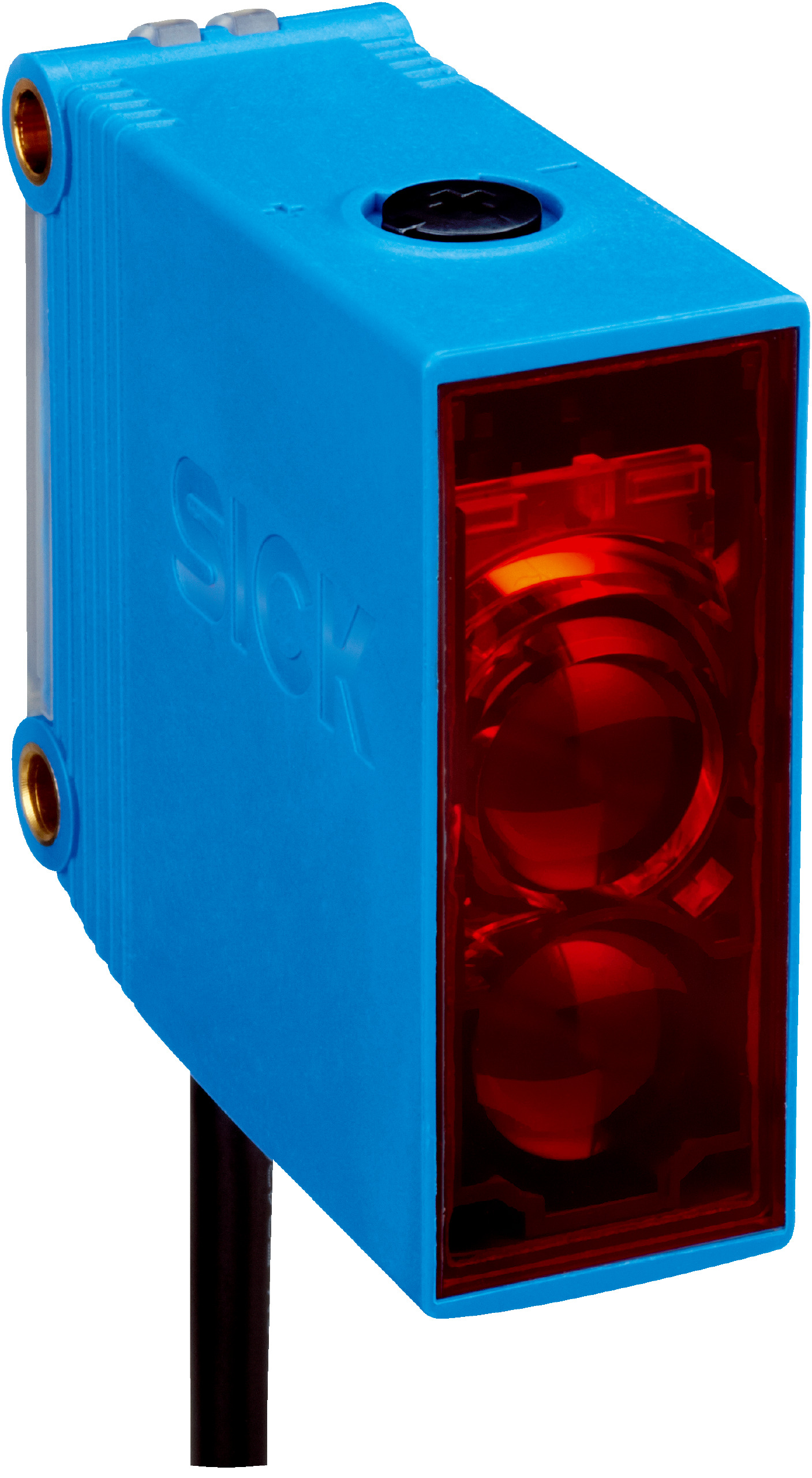

Photoelectric Proximity Sensor GTE10-R3812 | 40mm to 950mm Sensing Range | IP67 Rated | by SICK
The GTE10-R3812 Photoelectric Proximity Sensor is designed for industrial automation, featuring a sensing range from 40 mm to 950 mm and a robust IP67 rating for harsh environments. With a fast response time of ≤ 10 ms and a versatile relay SPDT output, this sensor is perfect for object detection and safety monitoring in manufacturing and material handling applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor, energetic
- Sensing range: 40 mm to 950 mm (max 1300 mm)
- Light source: PinPoint LED, wavelength 625 nm
- Adjustment: Potentiometer, 270°
- Supply voltage: 24 V AC/DC to 240 V AC/DC
- Power consumption: ≤ 2.5 VA
- Switching output: Relay, SPDT, electrically isolated
- Switching mode: Light/dark switching
- Switching load max: 0.11 A (250 V DC), 3 A (30 V DC), 3 A (250 V AC)
- Response time: ≤ 10 ms
- Switching frequency: 20 Hz
- Connection type: Cable, 5-wire, 2 m, PVC
- Protection class: II
- Enclosure rating: IP67
- Operating temperature: -30 °C to +60 °C
- Storage temperature: -40 °C to +70 °C
- Housing material: Plastic ABS/PMMA
- Relay switching cycles min.: 100,000 cycles (3 A)
- Dimensions (H x L x W): 50mm x 51.5mm x 20mm
- Weight: 0.115 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Rectangular housing design with visible red light emission
- Sensing range from 40 mm to 950 mm, max up to 1300 mm
- PinPoint LED light source with 625 nm wavelength
- Potentiometer adjustment with 270° rotation
- Relay SPDT electrically isolated switching output
- Light/dark switching mode
- High protection rating IP67 for harsh environments
- Wide supply voltage range from 24 V AC/DC to 240 V AC/DC
- Fast response time ≤ 10 ms and switching frequency 20 Hz
- Cable connection with 5-wire, 2 m length, PVC material
- Housing made of durable ABS/PMMA plastic
- Operating temperature range from -30 °C to +60 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption of ≤ 2.5 VA reduces energy usage
- Durable IP67 housing extends product life and reduces waste
- Complies with China-RoHS for restricted hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK GTE10-R3812 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
