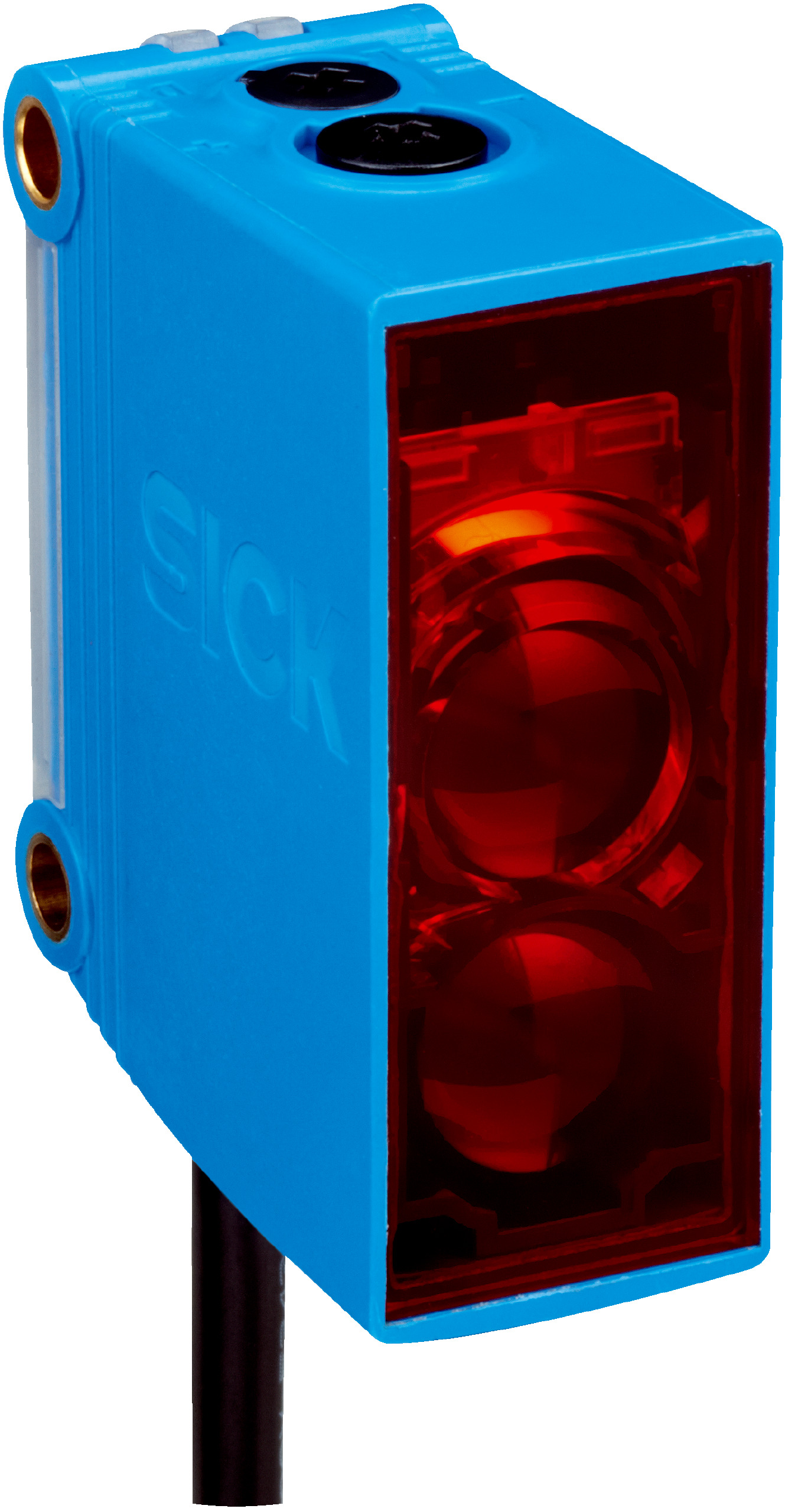

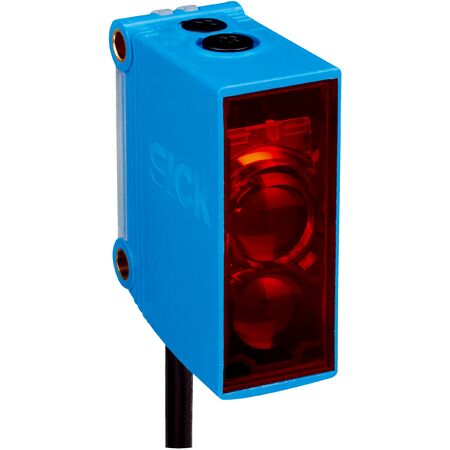

Photoelectric Proximity Sensor GTE10-N1212 | 20mm to 1300mm Sensing Range | NPN Output | IP67 Rated | by SICK
The GTE10-N1212 Photoelectric Proximity Sensor is designed for industrial automation, featuring a sensing range from 20 mm to 1,300 mm and a visible red light emission. With a robust IP67-rated housing and a high switching frequency of 1,000 Hz, this sensor is perfect for manufacturing process control and safety systems, ensuring reliable object detection in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor (energetic)
- Sensing range max.: 20 mm to 1,300 mm
- Type of light: Visible red light
- Light source: PinPoint LED
- Light spot size at 1,400 mm: Ø 28 mm
- Wavelength: 625 nm
- Adjustment: Potentiometer, 270°
- Supply voltage: 10 V DC to 30 V DC
- Ripple: < 5 V pp
- Current consumption: 20 mA
- Switching output: NPN
- Switching mode: Light/dark switching selectable
- Output current max: ≤ 100 mA
- Response time: ≤ 500 µs
- Switching frequency: 1,000 Hz
- Connection type: Cable, 3-wire, 2 m
- Cable material: Plastic, PVC
- Conductor cross section: 0.14 mm²
- Circuit protection: A, B, C, D
- Protection class: III
- Housing material: Plastic, ABS/PMMA
- Enclosure rating: IP67
- Electromagnetic compatibility: EN 60947-5-2
- Operating temperature: –30 °C to +60 °C
- Storage temperature: –40 °C to +70 °C
- Dimensions (H x L x W): 50mm x 39mm x 20mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Rectangular housing design with visible red light emission
- Sensing range from 20 mm up to 1,300 mm
- PinPoint LED light source with 625 nm wavelength
- Adjustable potentiometer with 270° rotation
- NPN switching output with selectable light/dark switching mode
- High switching frequency of 1,000 Hz and response time ≤ 500 µs
- Robust plastic ABS/PMMA housing with IP67 enclosure rating
- Wide ambient operating temperature range from –30 °C to +60 °C
- Includes mounting bracket BEF-G10DC01
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper wiring and sensor alignment for optimal performance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and security systems
- Material handling and packaging
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 housing minimizes environmental impact by extending product lifespan
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK GTE10-N1212 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
