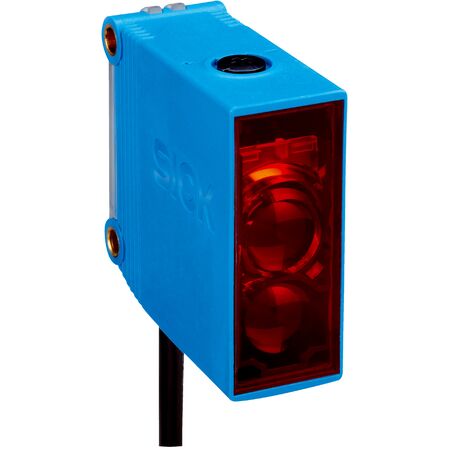

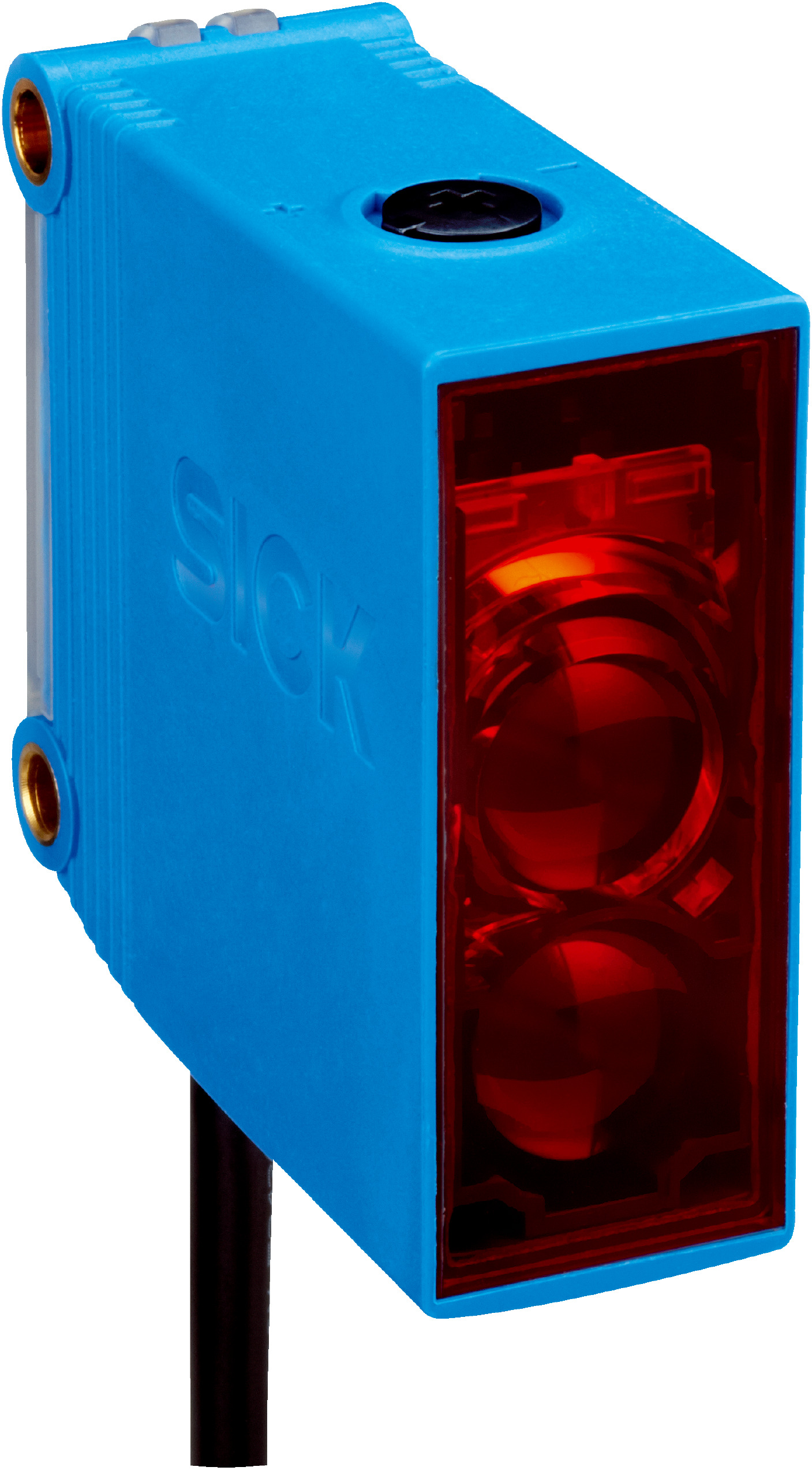

Photoelectric Proximity Sensor GTE10-R3821 | Infrared LED | Adjustable Sensing Range | IP67 Rated | by SICK
The GTE10-R3821 Photoelectric Proximity Sensor is designed for industrial automation, featuring an adjustable sensing range from 40 mm to 1400 mm and a fast response time of ≤ 10 ms. With its robust IP67-rated housing, this sensor is perfect for harsh environments, ensuring reliable object detection and safety monitoring in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor, energetic
- Sensing range max: 20 mm to 2000 mm
- Sensing range typical: 40 mm to 1400 mm
- Type of light: Infrared light, wavelength 850 nm
- Light source: LED
- Light spot size at 1500 mm: Ø 57 mm
- Adjustment: Potentiometer, 270°
- Supply voltage: 24 V AC/DC to 240 V AC/DC
- Ripple: < 10%
- Power consumption: ≤ 2.5 VA
- Switching output: Relay, SPDT, electrically isolated
- Switching mode: Light/dark switching
- Switching load max: 0.11 A (250 V DC), 3 A (30 V DC), 3 A (250 V AC)
- Response time: ≤ 10 ms
- Switching frequency: 20 Hz
- Connection type: Cable, 5-wire, 2 m, PVC
- Conductor cross section: 0.25 mm²
- Circuit protection: C
- Protection class: II
- Enclosure rating: IP67
- Relay switching cycles min: 100,000 cycles (3 A)
- Usage category: DC-13 and AC-15 according to EN 60947-1
- Electromagnetic compatibility: EN 60947-5-2, EN 61000-6-3
- Ambient operating temperature: -30 °C to +60 °C
- Storage temperature: -40 °C to +70 °C
- Housing material: Plastic, ABS/PMMA
- Dimensions (H x L x W): 50mm x 52mm x 20mm
- Weight: 0.115 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Rectangular housing design with infrared LED light source
- Adjustable sensing range from 40 mm to 1400 mm
- Potentiometer adjustment with 270° rotation
- Relay SPDT electrically isolated switching output
- Light/dark switching mode
- High protection rating IP67 for harsh environments
- Wide supply voltage range from 24 V AC/DC to 240 V AC/DC
- Fast response time ≤ 10 ms and switching frequency 20 Hz
- Robust plastic ABS/PMMA housing material
- Operating temperature range from -30 °C to +60 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption of ≤ 2.5 VA reduces energy usage
- Durable IP67 housing extends product life and reduces waste
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK GTE10-R3821 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
