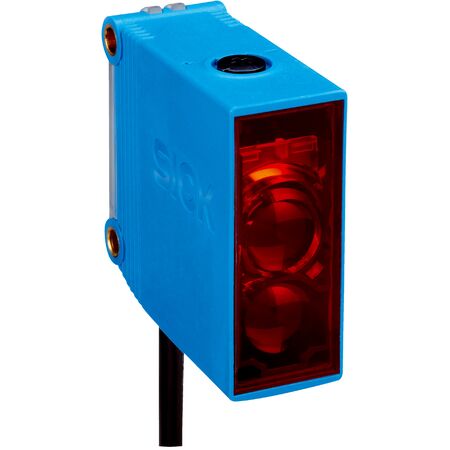

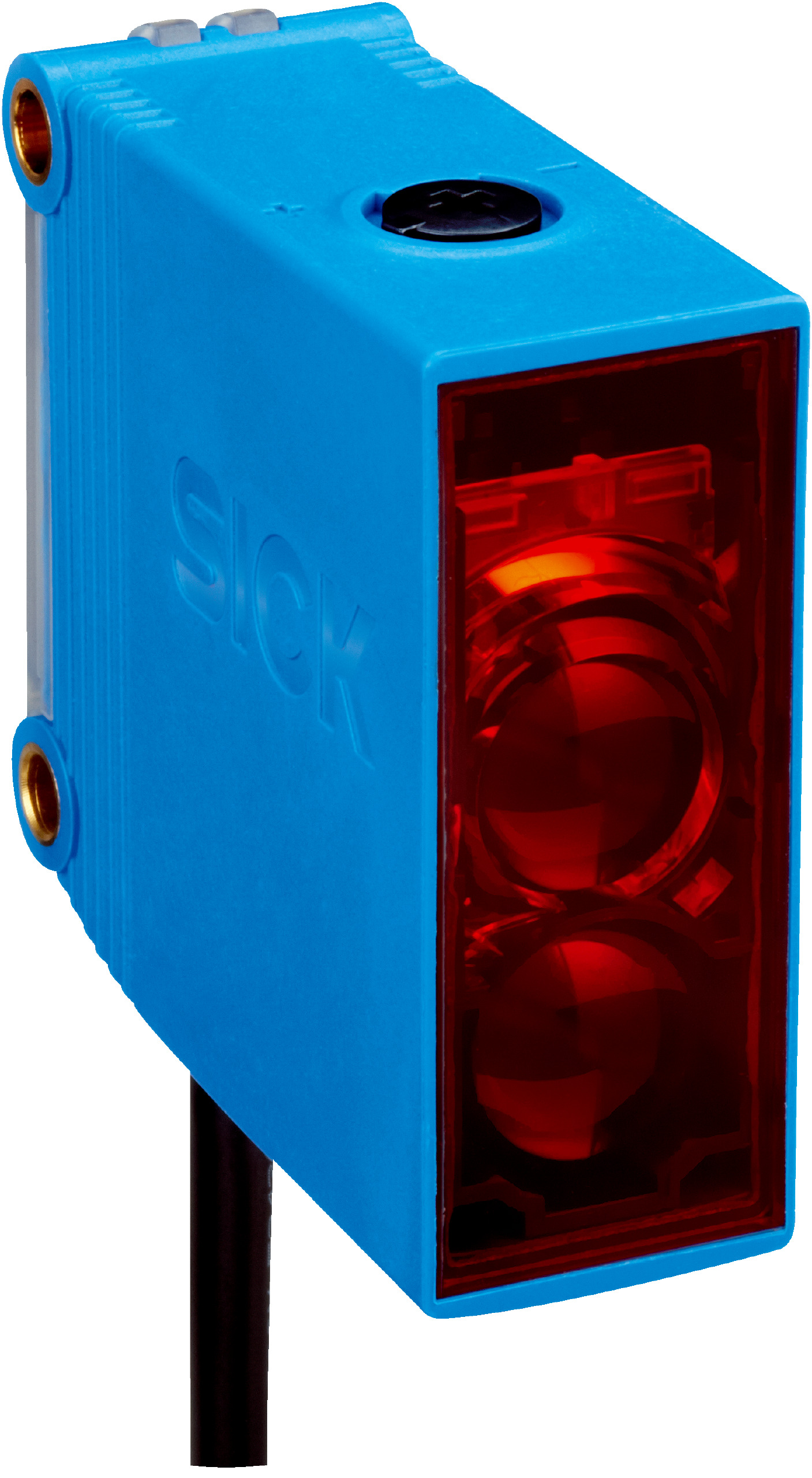

Photoelectric Proximity Sensor GTE10-R3822 | Infrared LED | Adjustable Range 40mm to 1400mm | IP67 Rated | by SICK
The GTE10-R3822 Photoelectric Proximity Sensor is designed for industrial automation, featuring an adjustable sensing range from 40 mm to 1400 mm and an infrared LED light source. With a fast response time of ≤ 10 ms and a robust IP67-rated housing, this sensor is perfect for object detection and safety monitoring in manufacturing processes, ensuring reliable performance in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor (energetic)
- Sensing range max: 20 mm to 2000 mm
- Sensing range typical: 40 mm to 1400 mm
- Type of light: Infrared light, wavelength 850 nm
- Light source: LED
- Light spot size at 1500 mm: Ø 57 mm
- Adjustment: Potentiometer, 270°
- Supply voltage: 24 V AC/DC to 240 V AC/DC
- Ripple: < 10%
- Power consumption: ≤ 2.5 VA
- Switching output: Relay, SPDT, electrically isolated
- Switching mode: Light/dark switching
- Max switching load: 0.11 A (250 V DC), 3 A (30 V DC), 3 A (250 V AC)
- Response time: ≤ 10 ms
- Switching frequency: 20 Hz
- Connection type: 5-wire cable, 2 m, PVC insulation
- Circuit protection: C
- Protection class: II
- Interference emission: EN 61000-6-3 (2011-09)
- Housing material: Plastic ABS/PMMA
- Enclosure rating: IP67
- Relay switching cycles minimum: 100,000 cycles (3 A)
- Usage category: DC-13 and AC-15 according to EN 60947-1
- Electromagnetic compatibility: EN 60947-5-2, EN 61000-6-3
- Operating temperature: -30 °C to +60 °C
- Storage temperature: -40 °C to +70 °C
- Certifications: UL File No. NRKH.E348498 & NRKH7.E348498, UL325
- Dimensions (H x L x W): 50mm x 52mm x 20mm
- Weight: 0.115 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Rectangular housing design with infrared LED light source
- Adjustable sensing range from 40 mm to 1400 mm
- Potentiometer adjustment with 270° rotation
- Relay SPDT electrically isolated switching output
- Light/dark switching mode
- High protection rating IP67 suitable for harsh environments
- Wide supply voltage range from 24 V AC/DC to 240 V AC/DC
- Fast response time ≤ 10 ms and switching frequency of 20 Hz
- Robust plastic ABS/PMMA housing material
- Includes mounting bracket BEF-G10UC01
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with industrial sensor wiring and safety standards.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption of ≤ 2.5 VA reduces energy usage
- Durable IP67 rated housing minimizes waste by extending product life
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK GTE10-R3822 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
