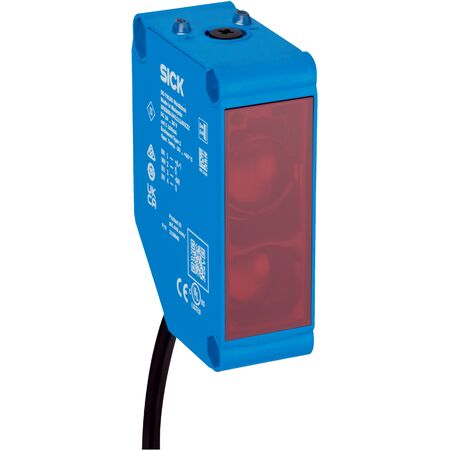

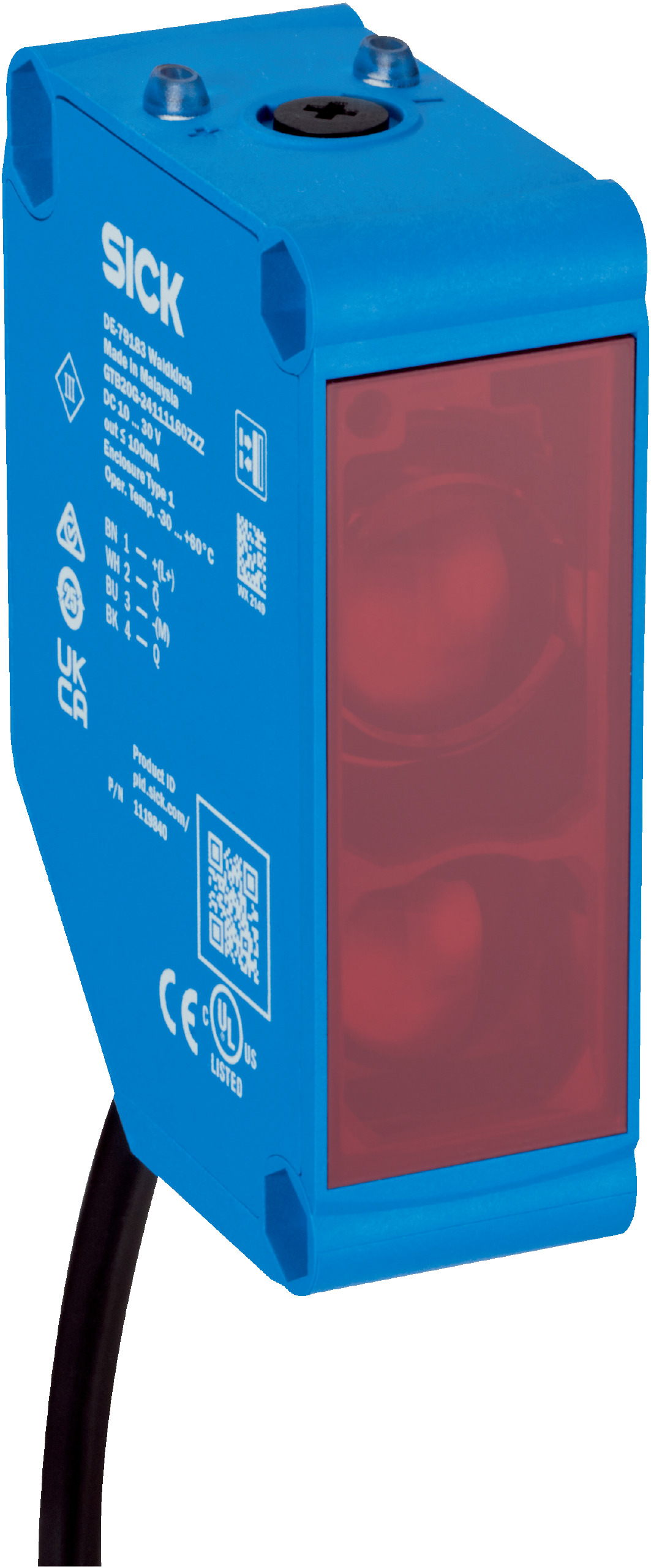

Photoelectric Proximity Sensor GTE20G-1H111170ZZZ | 0.02m to 2m Sensing Range | IP67 Rated | by SICK
The GTE20G-1H111170ZZZ Photoelectric Proximity Sensor is designed for industrial automation, featuring a sensing range of 0.02m to 2m and a visible red LED light source. With an IP67 rating for dust and water resistance, this sensor is perfect for manufacturing process control and safety monitoring, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor (energetic)
- Sensing range: 0.02 m to 2 m for objects with 90% remission factor
- Light source: Visible red LED, wavelength 630 nm
- Light spot size: Ø 28 mm at 500 mm distance
- Maximum beam dispersion: < +/- 1.5° at 23 °C
- LED indicators: Green for power, yellow for object detection
- Adjustment: 270° potentiometer for sensitivity
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 30 mA at 24 V
- Output: 2 complementary push-pull outputs (PNP/NPN), light/dark switching
- Output current max: ≤ 100 mA
- Response time: ≤ 500 µs
- Switching frequency: 1000 Hz
- Protection: Reverse polarity, overcurrent, short-circuit
- Housing material: Plastic ABS, front screen PMMA
- Cable: 4-wire, 2 m length, PVC
- Enclosure rating: IP67
- Operating temperature: -30 °C to +60 °C
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 Hz to 1000 Hz, amplitude 1 mm
- Dimensions (H x L x W): 74.5mm x 52.5mm x 23.5mm
- Weight: 0.12 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Sensing range from 0.02 m to 2 m for objects with 90% remission factor
- Visible red light LED with wavelength 630 nm and rectangular light spot
- LED indicators for power and object presence status
- Potentiometer for 270° sensitivity adjustment
- High switching frequency of 1000 Hz and response time ≤ 500 µs
- Protection class III with reverse polarity, overcurrent, and short-circuit protection
- IP67 rated enclosure for dust and water resistance
- Wide ambient operating temperature range from -30 °C to +60 °C
- Shock resistance of 30 g and vibration resistance from 10 Hz to 1000 Hz
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper wiring and sensor alignment for optimal performance and safety.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in production lines
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Long LED service life of 100,000 hours reduces waste and replacement frequency
- Energy-efficient LED light source minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK GTE20G-1H111170ZZZ Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
