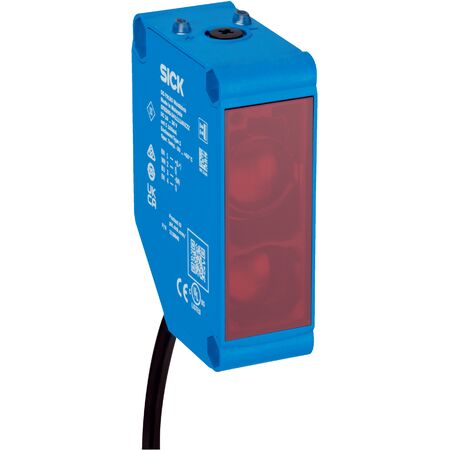

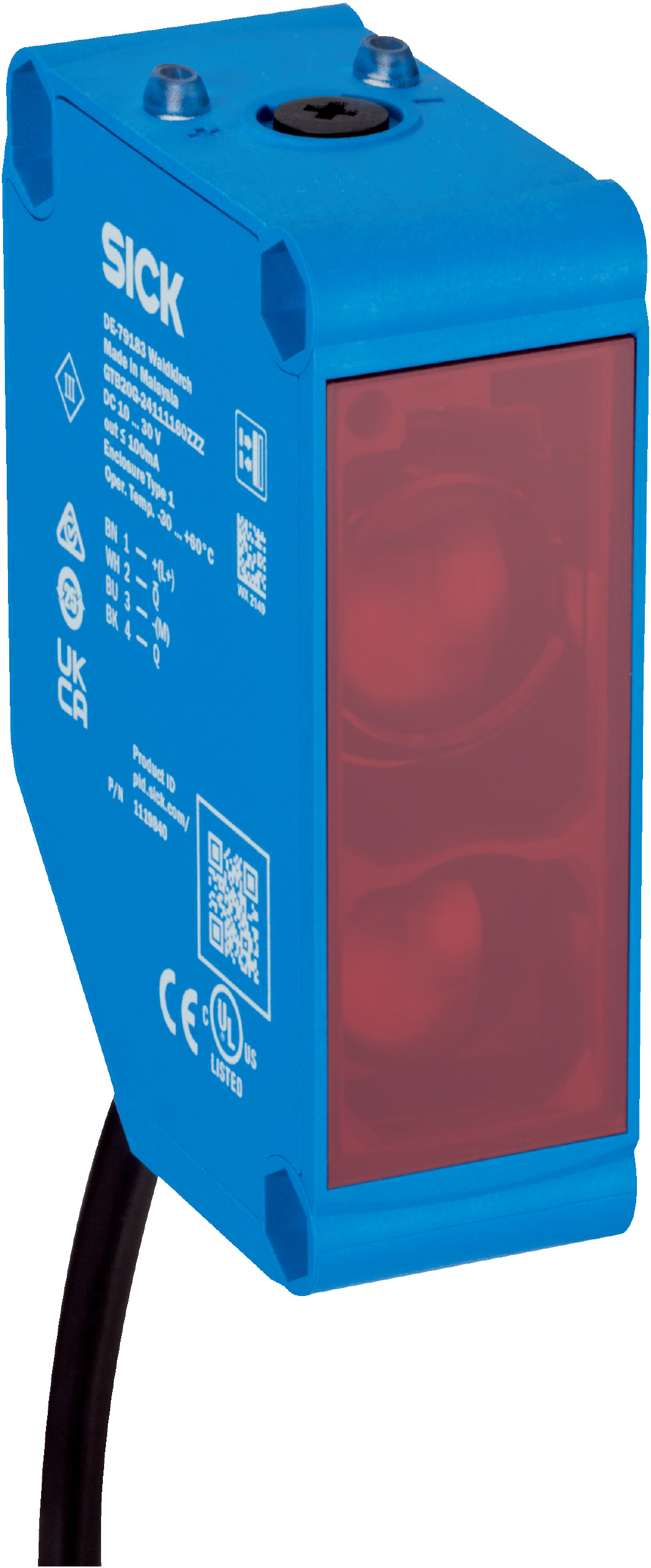

Photoelectric Proximity Sensor GTE20G-1IRC1170ZZZ | 0.02m to 2m Sensing Range | IP67 Rated | by SICK
The Photoelectric Proximity Sensor GTE20G-1IRC1170ZZZ is designed for industrial automation, featuring a sensing range of 0.02m to 2m and a visible red LED light source. With an IP67 enclosure rating and robust design, it ensures reliable object detection in manufacturing processes, making it ideal for safety and monitoring applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor, energetic
- Sensing range: 0.02 m to 2 m for objects with 90% remission factor
- Light source: Visible red LED, wavelength 630 nm
- Light spot size: Ø 28 mm at 500 mm distance
- Maximum beam dispersion: < +/- 1.5° at 23 °C
- Supply voltage: 24 V AC/DC to 240 V AC/DC
- Current consumption: ≤ 10 mA (230 V AC/DC), ≤ 45 mA (24 V AC/DC)
- Output: 2 relay SPDT, electrically isolated, light/dark switching
- Output current max: 4 A @ 250 V AC, 4 A @ 24 V DC
- Response time: ≤ 15 ms
- Switching frequency: 10 Hz
- Protection class: II
- Enclosure rating: IP67
- Operating temperature: -30 °C to +60 °C
- Storage temperature: -40 °C to +70 °C
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 Hz to 1000 Hz, amplitude 1 mm
- Electromagnetic compatibility: EN 60947-5-2, EN 61000-6-3
- Dimensions (H x L x W): 74.5mm x 63mm x 23.5mm
- Weight: 0.153 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Sensing range from 0.02 m to 2 m for objects with 90% remission factor
- Visible red light LED with wavelength 630 nm and rectangular light spot
- LED indicators for power and object presence status
- Potentiometer for 270° sensitivity adjustment
- Relay outputs with light/dark switching and electrically isolated SPDT contacts
- High protection class II and IP67 enclosure rating
- Wide ambient operating temperature range from -30 °C to +60 °C
- Shock resistance of 30 g and vibration resistance from 10 Hz to 1000 Hz
- Complies with multiple international certifications including EU, UK, ACMA, CCC, cULus
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper wiring and configuration.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in production lines
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source with long service life of 100,000 hours
- Robust design reduces need for frequent replacements, minimizing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK GTE20G-1IRC1170ZZZ Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing process control applications.
