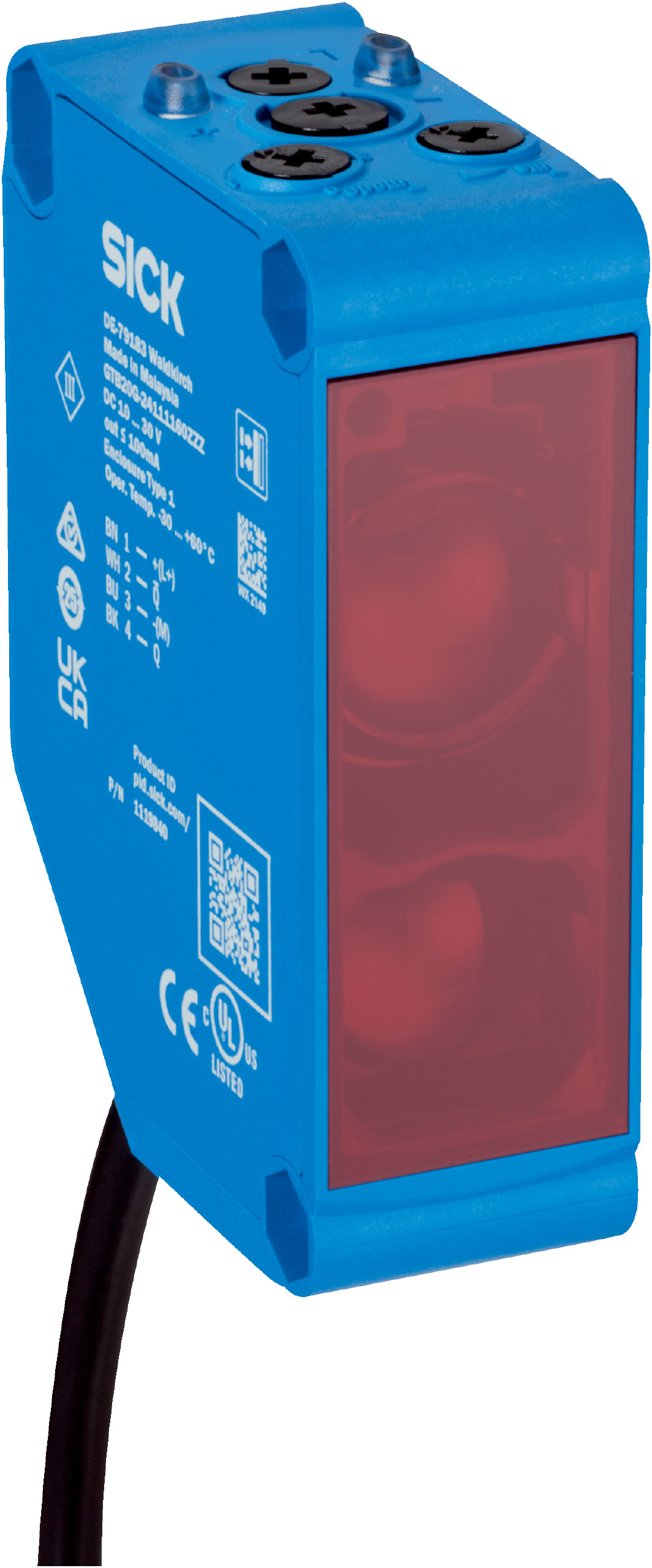

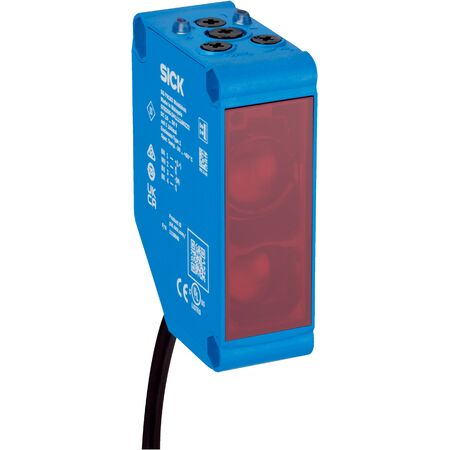

Photoelectric Proximity Sensor GTE20G-1IRC117GZZZ | 0.02m to 2m Sensing Range | IP67 Rated | by SICK
The Photoelectric Proximity Sensor GTE20G-1IRC117GZZZ is designed for reliable object detection in industrial automation, featuring a sensing range of 0.02m to 2m and a visible red LED light source. With an IP67 rating and robust design, it operates effectively in harsh environments, making it ideal for manufacturing process control and safety monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor, energetic
- Sensing range: 0.02 m to 2 m with 90% remission factor reference object
- Light source: LED, visible red light, wavelength 630 nm
- Light spot size: Ø 28 mm at 500 mm distance
- Maximum beam dispersion: < +/- 1.5° at 23 °C
- LED risk group: Free group according to EN 62471
- Supply voltage: 24 V AC/DC to 240 V AC/DC
- Current consumption: ≤ 10 mA (230 V AC/DC), ≤ 45 mA (24 V AC/DC)
- Digital outputs: 2 complementary relay outputs, SPDT, electrically isolated
- Switching mode: Light/dark switching
- Output current max: 4 A at 250 V AC or 24 V DC
- Response time: ≤ 15 ms
- Switching frequency: 10 Hz
- Time functions: Switch-on delay, off delay, ON and OFF delay adjustable 0-10,000 ms
- Housing material: Plastic ABS, front screen PMMA
- Cable: 5-wire, 2 m length, PVC
- Protection class: II
- Enclosure rating: IP67
- Operating temperature: -30 °C to +60 °C
- Storage temperature: -40 °C to +70 °C
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 Hz to 1000 Hz, amplitude 1 mm
- Dimensions (H x L x W): 74.5mm x 63mm x 23.5mm
- Weight: 0.209 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Sensing range from 0.02 m to 2 m for reliable detection
- Visible red LED light source with rectangular light spot
- LED green and yellow indicators for power and object presence
- Adjustable sensitivity via 270° potentiometer
- Relay outputs with light/dark switching and adjustable delay time
- High protection class II and IP67 rated enclosure
- Wide ambient operating temperature range from -30 °C to +60 °C
- Robust against shock and vibration
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper wiring and configuration according to electrical standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in production lines
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source with long service life of 100,000 hours
- Durable design reduces waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK GTE20G-1IRC117GZZZ Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
