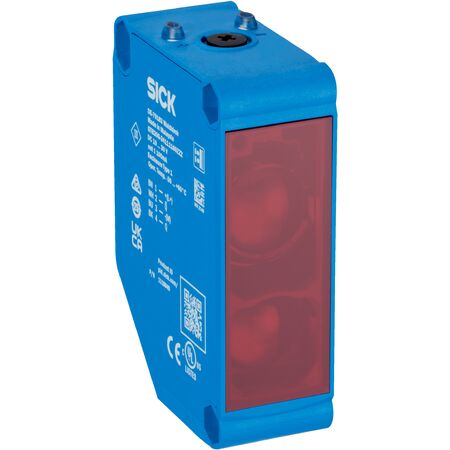

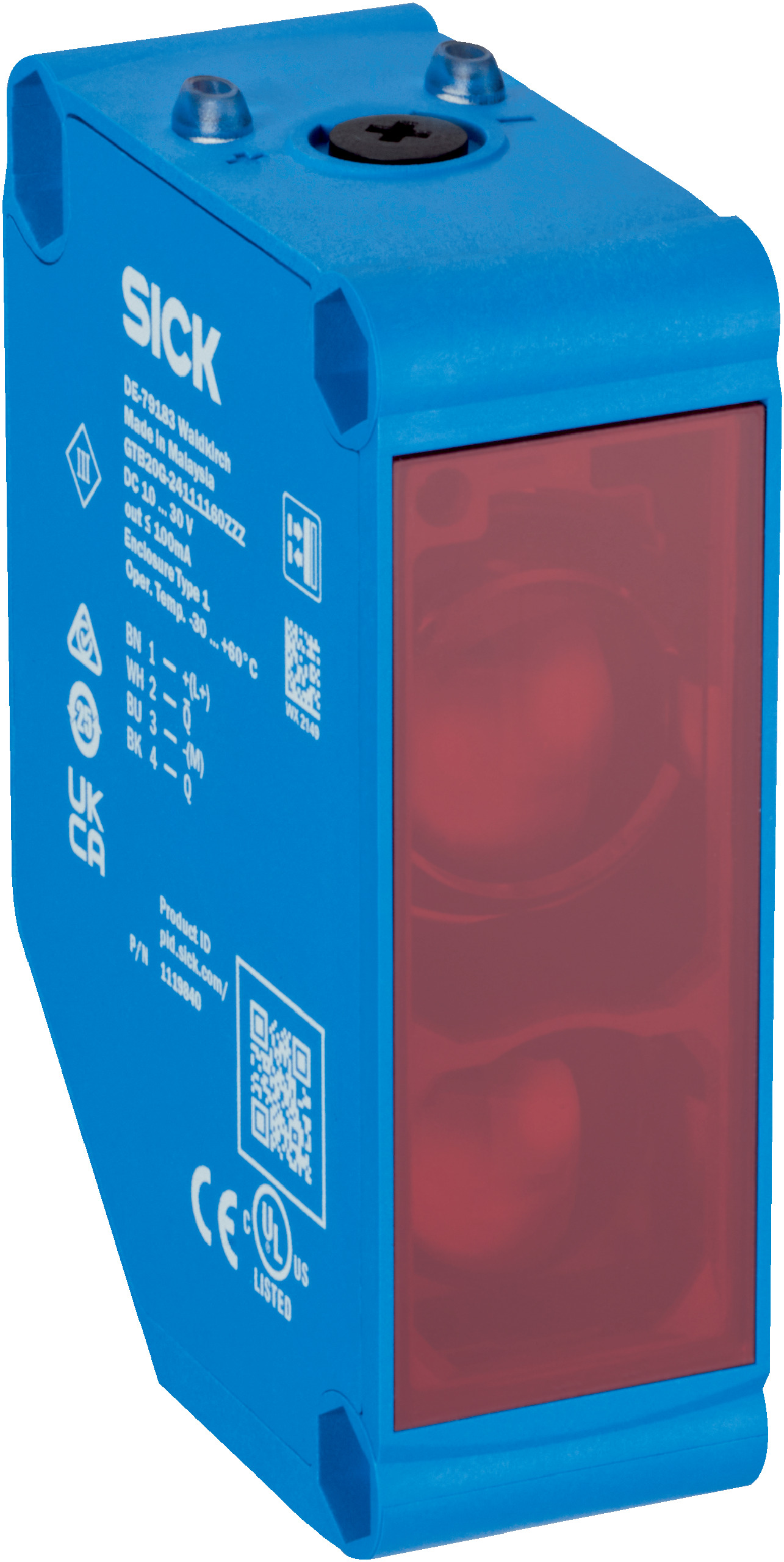

Photoelectric Proximity Sensor GTE20G-24111170ZZZ | 0.02m to 2m Sensing Range | IP67 Rated | by SICK
The GTE20G-24111170ZZZ photoelectric proximity sensor is designed for precise object detection in industrial automation. With a sensing range of 0.02m to 2m and a robust IP67 rating, it ensures reliable performance in harsh environments. Ideal for manufacturing process control and safety monitoring, this sensor features a high switching frequency of 1,000 Hz and a quick response time of ≤ 500 µs, making it perfect for dynamic applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor (energetic)
- Sensing range: 0.02 m to 2 m for objects with 90% remission factor
- Light source: Visible red LED, wavelength 630 nm
- Light spot size: Ø 28 mm at 500 mm distance
- Maximum beam dispersion: < +/- 1.5° at 23 °C
- LED risk group: Free group according to EN 62471 and IEC 62471
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 30 mA at 24 V
- Digital outputs: 2 complementary push-pull (PNP/NPN), light/dark switching
- Output current max: ≤ 100 mA
- Response time: ≤ 500 µs
- Switching frequency: 1,000 Hz
- Protection: Reverse polarity, overcurrent, short-circuit
- Housing material: Plastic ABS, front screen PMMA
- Connection: Male M12, 4-pin connector
- Enclosure rating: IP67
- Operating temperature: -30 °C to +60 °C
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 Hz to 1,000 Hz, amplitude 1 mm
- EMC: EN 60947-5-2
- Dimensions (H x L x W): 74.5mm x 52.5mm x 23.5mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Sensing range from 0.02 m to 2 m for objects with 90% remission factor
- Visible red light LED with rectangular light spot of Ø 28 mm at 500 mm distance
- LED green and yellow indicators for power and object presence status
- Potentiometer for sensitivity adjustment with 270° rotation
- High switching frequency of 1,000 Hz and response time ≤ 500 µs
- Protection class III with reverse polarity, overcurrent, and short-circuit protection
- Robust plastic ABS housing with IP67 rating for harsh environments
- Operating temperature range from -30 °C to +60 °C
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in production lines
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source with long service life of 100,000 hours reduces power consumption and waste
- Durable IP67 rated housing minimizes replacement frequency and electronic waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK GTE20G-24111170ZZZ photoelectric proximity sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
