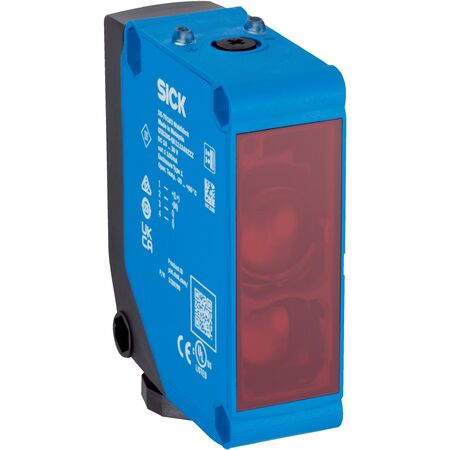

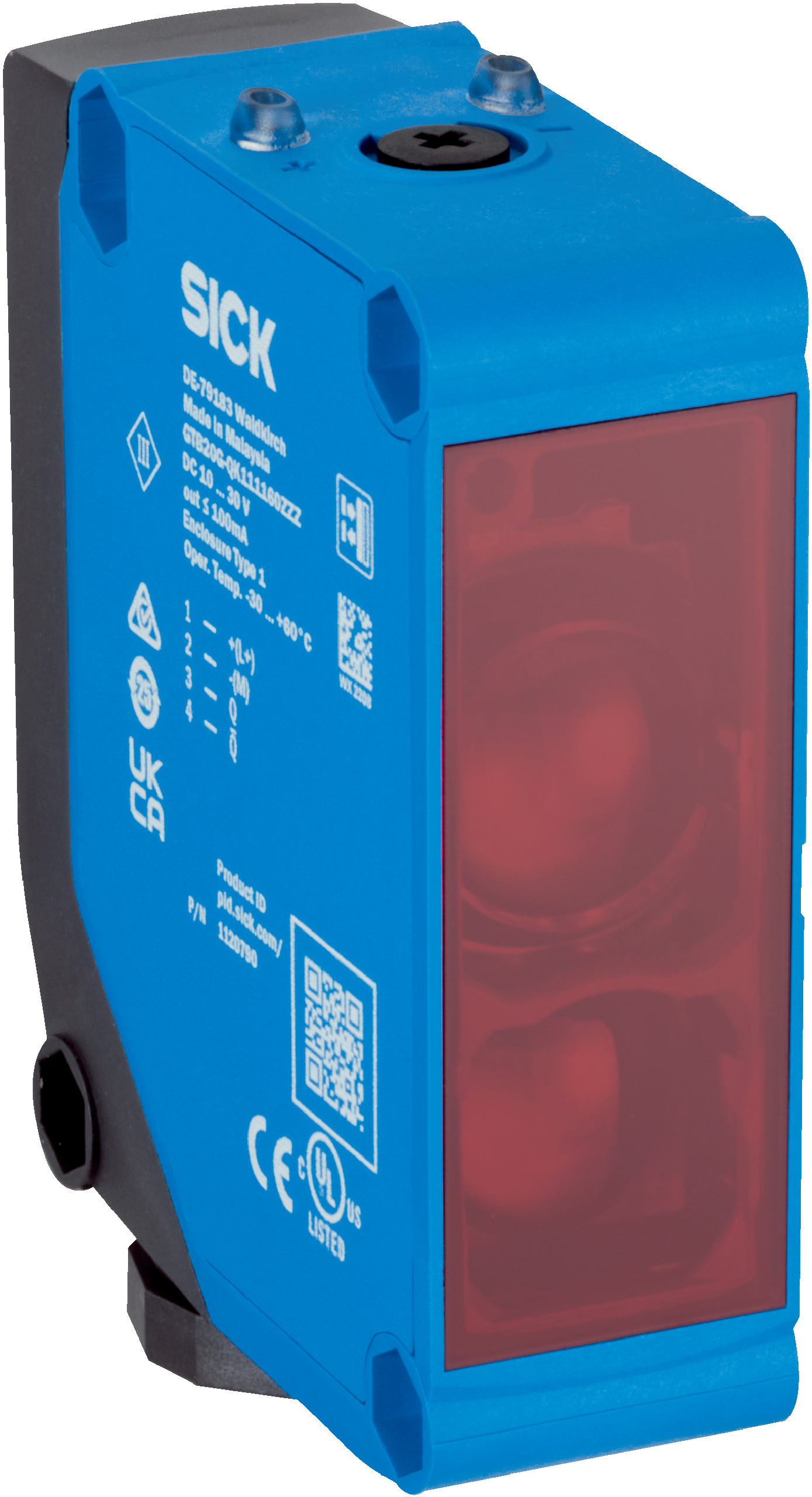

Photoelectric Proximity Sensor GTE20M-QK111170ZZZ | 0.005m to 3.5m Sensing Range | IP67 Rated | by SICK
The GTE20M-QK111170ZZZ photoelectric proximity sensor is designed for industrial automation, featuring a versatile sensing range from 0.005 m to 3.5 m. With an infrared LED light source and robust IP67-rated housing, it ensures reliable performance in challenging environments. Ideal for material handling and safety monitoring, this sensor offers dual complementary outputs and adjustable sensitivity for optimal detection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor (energetic)
- Sensing range: 0.005 m to 3.5 m with 90% remission factor object
- Light source: Infrared LED, wavelength 850 nm
- Light spot size: Ø 28 mm at 500 mm distance
- Maximum beam dispersion: < +/- 1.5° at 23°C
- LED risk group: Free group according to EN 62471
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 30 mA at 24 V
- Output: 2 complementary push-pull PNP/NPN digital outputs
- Switching mode: Light/dark switching
- Response time: ≤ 500 µs
- Switching frequency: 1,000 Hz
- Protection class: III
- Housing material: Plastic ABS with PMMA front screen
- Connection: 4-terminal terminal connection
- Enclosure rating: IP67
- Operating temperature: -30°C to +60°C
- Storage temperature: -40°C to +70°C
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 Hz to 1,000 Hz, amplitude 1 mm
- EMC compliance: EN 60947-5-2
- Certifications: EU, UK, ACMA, Morocco, China-RoHS, cRUus
- Dimensions (H x L x W): 74.5mm x 52.5mm x 23.5mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Sensing range from 0.005 m to 3.5 m for versatile detection
- Infrared LED light source with rectangular light spot of Ø 28 mm at 500 mm
- High LED service life of 100,000 hours at 25°C
- Adjustable sensitivity via 270° potentiometer
- Dual complementary push-pull PNP/NPN digital outputs with light/dark switching
- Robust plastic ABS housing with IP67 protection rating
- Operating temperature range from -30°C to +60°C
- High shock and vibration resistance for industrial environments
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper wiring and sensor alignment for optimal performance and safety.
Applications
- Industrial automation for object detection
- Material handling and conveyor systems
- Safety and monitoring in manufacturing processes
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Long LED service life reduces waste and replacement frequency
- Energy-efficient LED technology minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK GTE20M-QK111170ZZZ photoelectric proximity sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
