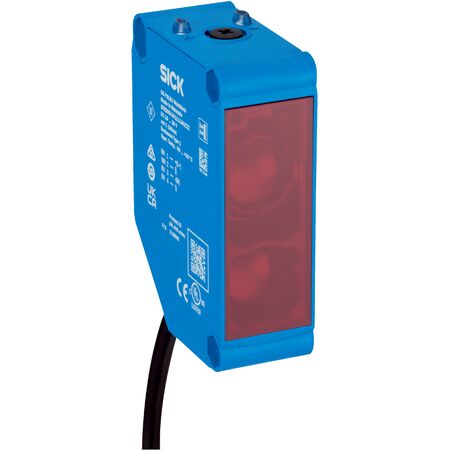

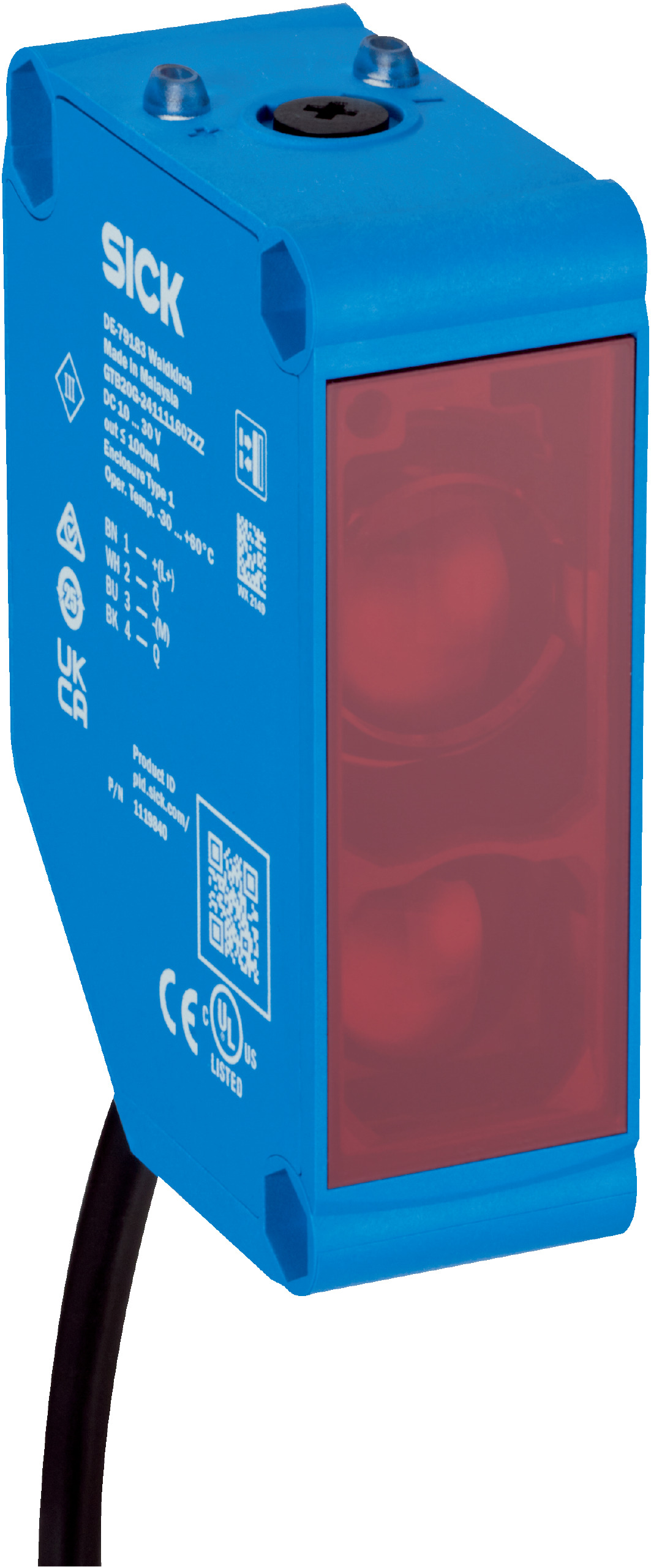

Photoelectric Proximity Sensor GTE20M-1H111170ZZZ | 0.005m to 3.5m Sensing Range | IP67 Rated | by SICK
The GTE20M-1H111170ZZZ Photoelectric Proximity Sensor is designed for industrial automation, featuring a versatile sensing range from 0.005m to 3.5m and an infrared LED light source. With robust IP67 protection and high shock resistance, it's perfect for object detection in manufacturing processes and production line safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor (energetic)
- Sensing range: 0.005 m to 3.5 m with 90% remission factor reference object
- Light source: Infrared LED, wavelength 850 nm
- Light spot size: Ø 28 mm at 500 mm distance
- LED risk group: Free group according to EN 62471
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 30 mA at 24 V
- Digital outputs: 2 complementary push-pull PNP/NPN with light/dark switching
- Output current max: ≤ 100 mA
- Response time: ≤ 500 µs
- Switching frequency: 1,000 Hz
- Protection class: III
- Housing material: Plastic ABS
- Front screen material: Plastic PMMA
- Cable: 4-wire, 2 m length, PVC
- Enclosure rating: IP67
- Operating temperature: -30°C to +60°C
- Storage temperature: -40°C to +70°C
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 Hz to 1,000 Hz, amplitude 1 mm
- Dimensions (H x L x W): 74.5mm x 52.5mm x 23.5mm
- Weight: 0.12 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Sensing range from 0.005 m to 3.5 m for versatile detection
- Infrared LED light source with rectangular light spot of Ø 28 mm at 500 mm
- High LED service life of 100,000 hours at 25°C
- Adjustable sensitivity via 270° potentiometer
- Dual complementary push-pull PNP/NPN digital outputs with light/dark switching
- Robust plastic ABS housing with IP67 protection rating
- Wide ambient operating temperature range from -30°C to +60°C
- High shock and vibration resistance for industrial environments
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper wiring and sensor alignment for optimal performance and safety.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in production lines
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Long LED service life reduces waste and replacement frequency
- Energy-efficient infrared LED light source minimizes power consumption
- Robust design reduces environmental impact through durability
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK GTE20M-1H111170ZZZ Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
