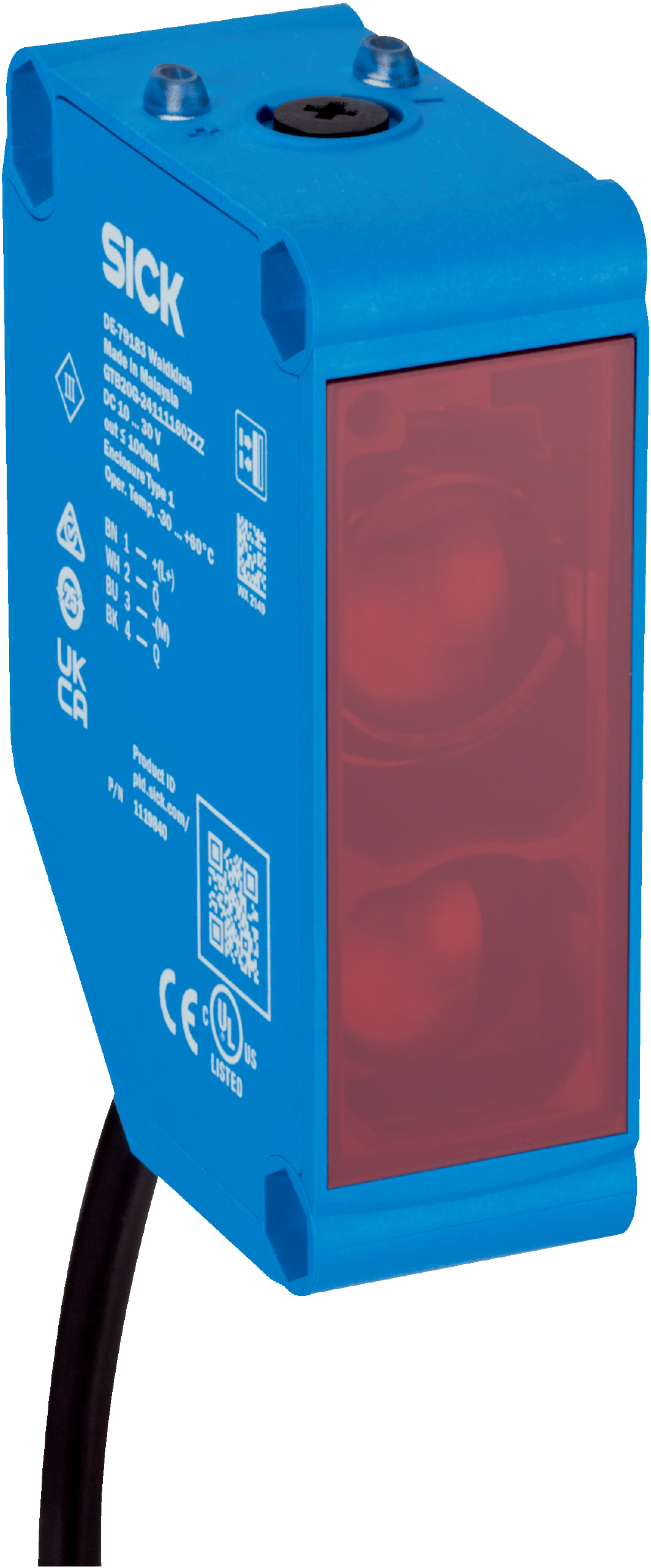

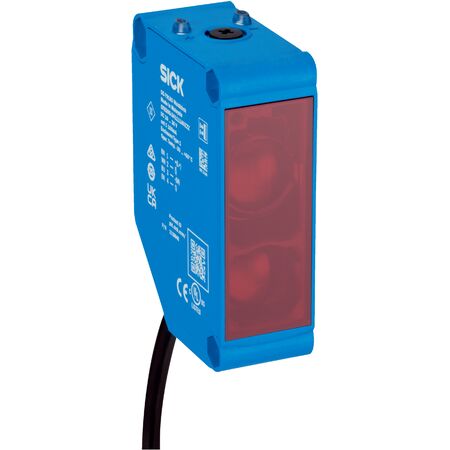

Photoelectric Proximity Sensor GTE20M-1IRC1170ZZZ | IP67 Rated | 0.005m to 3.5m Sensing Range | Dual Relay Outputs | by SICK
The GTE20M-1IRC1170ZZZ Photoelectric Proximity Sensor is designed for industrial automation, featuring a sensing range of 0.005m to 3.5m and dual relay SPDT outputs for versatile applications. With an IP67 rated enclosure, it ensures reliable performance in harsh environments, making it ideal for material handling and safety detection in manufacturing settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 24 V AC/DC to 240 V AC/DC
- Current consumption: ≤ 10 mA (230 V AC/DC), ≤ 45 mA (24 V AC/DC)
- Output: 2 complementary relay SPDT outputs, max 4 A at 250 V AC
- Response time: ≤ 15 ms
- Switching frequency: 10 Hz
- Protection class: II
- Cable: 5-wire, 2 m length, PVC insulated
- Housing material: Plastic ABS, front screen PMMA
- Operating temperature: -30 °C to +60 °C
- Storage temperature: -40 °C to +70 °C
- Enclosure rating: IP67
- Dimensions (H x L x W): 74.5mm x 63mm x 23.5mm
- Weight: 0.153 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Sensing range from 0.005 m to 3.5 m with 90% remission factor reference object
- Infrared LED light source with rectangular light spot of Ø 28 mm at 500 mm
- Free group LED risk marking with wavelength 850 nm and 100,000 hours average service life
- Sensitivity adjustable via 270° potentiometer
- Dual relay SPDT outputs with light/dark switching mode
- IP67 rated enclosure for dust and water protection
- Wide ambient operating temperature range from -30 °C to +60 °C
- Shock resistance of 30 g and vibration resistance from 10 Hz to 1000 Hz
- Electromagnetic compatibility compliant with EN 60947-5-2 and EN 61000-6-3
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Material handling and conveyor systems
- Safety and presence detection in manufacturing
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Long LED service life reduces waste and replacement frequency
- Energy-efficient LED light source minimizes power consumption
- Durable IP67 housing extends product lifespan in harsh environments
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK GTE20M-1IRC1170ZZZ Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
