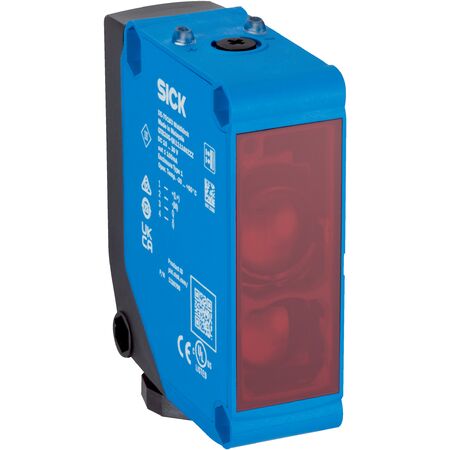

Photoelectric Proximity Sensor GTE20M-QLRC1170ZZZ | 0.005m to 3.5m Sensing Range | IP67 Rated | by SICK
The GTE20M-QLRC1170ZZZ Photoelectric Proximity Sensor is designed for industrial automation, featuring a sensing range of 0.005m to 3.5m and an infrared LED light source. With an IP67 rating for dust and water protection, this sensor is perfect for manufacturing process control and safety monitoring in production lines, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor (energetic)
- Sensing range: 0.005 m to 3.5 m (object with 90% remission factor)
- Light source: Infrared LED, wavelength 850 nm
- Light spot size: Ø 28 mm at 500 mm distance
- LED risk group: Free group according to EN 62471
- Supply voltage: 24 V AC/DC to 240 V AC/DC
- Current consumption: ≤ 10 mA (230 V AC/DC), ≤ 45 mA (24 V AC/DC)
- Output: 2 complementary relay SPDT outputs, light/dark switching
- Output current max: 4 A @ 250 V AC, 4 A @ 24 V DC
- Response time: ≤ 15 ms
- Switching frequency: 10 Hz
- Protection class: II
- Enclosure rating: IP67
- Operating temperature: -30 °C to +60 °C
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 Hz to 1000 Hz, amplitude 1 mm
- Dimensions (H x L x W): 74.5mm x 63mm x 23.5mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Sensing range from 0.005 m to 3.5 m with 90% remission factor reference object
- Infrared LED light source with rectangular light spot of Ø 28 mm at 500 mm
- Free LED risk group with wavelength of 850 nm and average service life of 100,000 hours
- Sensitivity adjustable via 270° potentiometer
- Dual relay SPDT outputs with light/dark switching mode
- Response time ≤ 15 ms and switching frequency up to 10 Hz
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -30 °C to +60 °C
- Shock resistance of 30 g and vibration resistance from 10 Hz to 1000 Hz
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and optimal sensor performance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in production lines
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Long LED service life reduces waste and replacement frequency
- Energy-efficient LED technology minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK GTE20M-QLRC1170ZZZ Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing process control applications.
