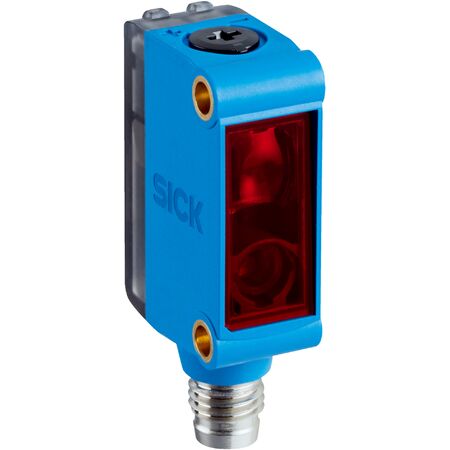

Photoelectric Proximity Sensor GTE6-N1201S72 | IP67 Rated | 1,000 Hz Switching Frequency | NPN Output | by SICK
The GTE6-N1201S72 Photoelectric Proximity Sensor is designed for industrial automation, featuring a sensing range of 5 mm to 110 mm and a high switching frequency of 1,000 Hz. With an IP67 rated enclosure, it ensures reliable performance in harsh environments, making it ideal for manufacturing process control and safety detection in machinery.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Proximity Sensor GTE6-N1201S72 | IP67 Rated | 1,000 Hz Switching Frequency | NPN Output | by SICK
Brand: SICK
SKU: 1088411
Alternatively Known As: Photoelectric proximity sensor, SICK photo sensor, GTE6 sensor, NPN photoelectric sensor, industrial proximity sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Ripple: < 5 V pp
- Output current max: ≤ 100 mA
- Switching frequency: 1,000 Hz
- Response time: < 0.5 ms
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Housing material: Plastic ABS/PC
- Front screen material: Plastic PMMA
- Cable material: Plastic PVC
- Cable length: 2 m
- Conductor size: 0.14 mm²
- Dimensions (H x L x W): 31.5mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Sensing range from 5 mm to 110 mm
- Visible red light with 650 nm wavelength
- PinPoint LED light source with 2 mm x 50 mm light spot size at 50 mm distance
- Mechanical spindle adjustment with 5 turns
- NPN digital output with light/dark switching mode
- High switching frequency of 1,000 Hz and response time under 0.5 ms
- Protection class III and IP67 rated enclosure for harsh environments
- Cable connection with 3-wire, 2 m length
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Packaging and material handling systems
- Safety and presence detection in machinery
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 housing minimizes waste by extending product lifespan
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK GTE6-N1201S72 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
