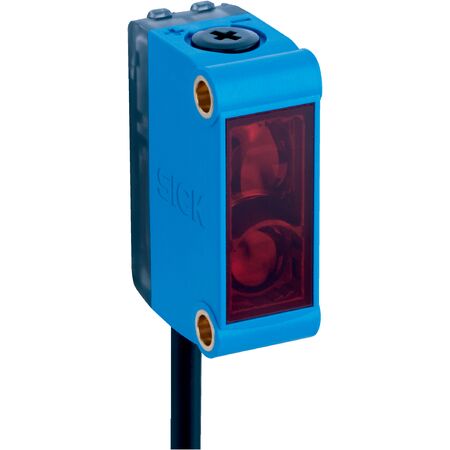

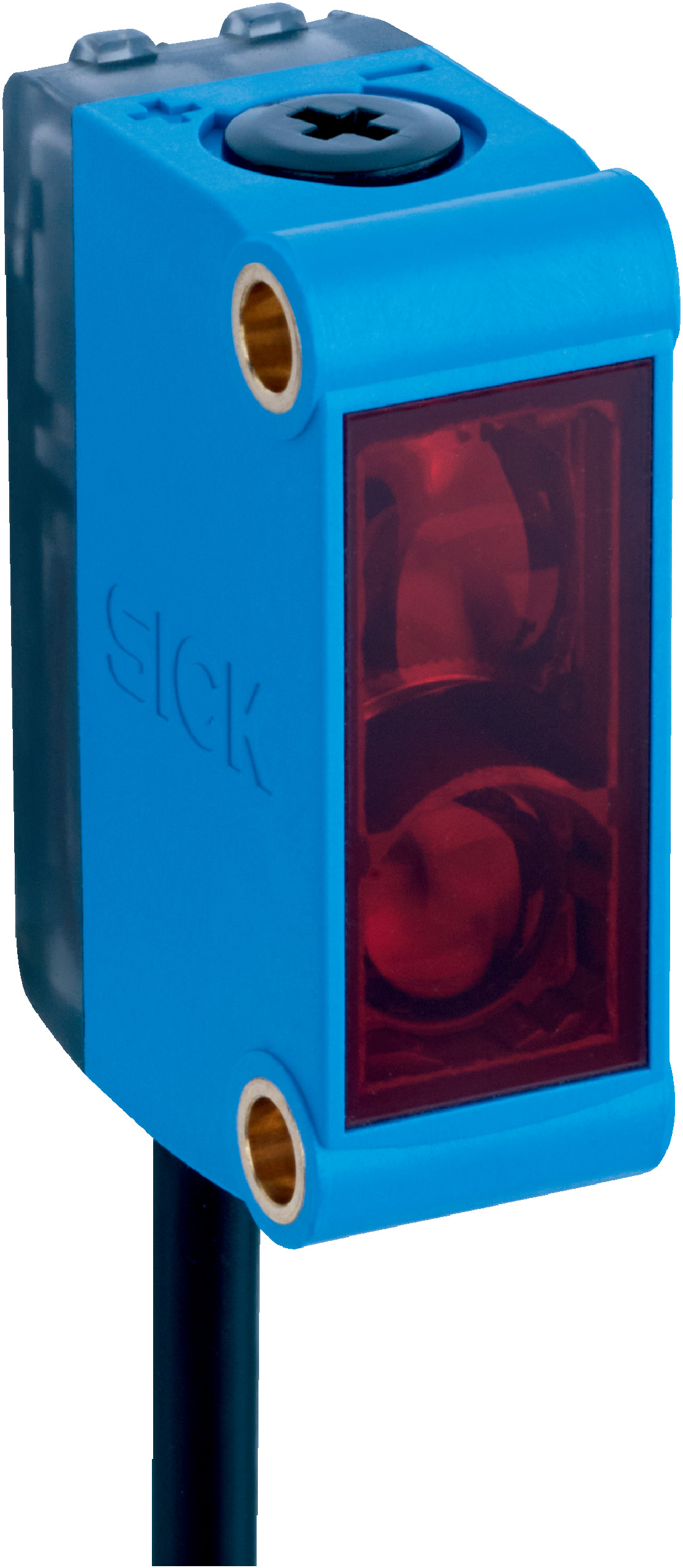

Photoelectric Proximity Sensor GTE6-N1211 | IP67 Rated | Fast Response Time | NPN Output | by SICK
The GTE6-N1211 Photoelectric Proximity Sensor is designed for industrial automation, featuring a sensing range of 10 mm to 300 mm and a fast response time of under 1.25 ms. With an IP67 enclosure rating and robust plastic housing, it’s perfect for manufacturing process control and safety systems, ensuring reliable object detection in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Proximity Sensor GTE6-N1211 | IP67 Rated | Fast Response Time | NPN Output | by SICK
Brand: SICK
SKU: 1050713
Alternatively Known As: Photoelectric sensor, Proximity sensor, Optical sensor, SICK GTE6 sensor, Industrial photo sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC with ±10% ripple
- Current consumption: 30 mA
- Protection class: III
- Digital output type: NPN
- Switching mode: Light/dark switching selectable
- Signal voltage NPN HIGH/LOW: Approx. VS / ≤ 3 V
- Output current max: ≤ 100 mA
- Response time: < 1.25 ms
- Switching frequency: 500 Hz
- Circuit protection: A, B, D
- Housing material: Plastic ABS/PC
- Front screen material: Plastic PMMA
- Cable material: Plastic PVC
- Cable length: 2 m
- Enclosure rating: IP67
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Dimensions (H x L x W): 31.5mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Sensing range from 10 mm to 300 mm
- PinPoint LED light source with visible red light at 650 nm wavelength
- Mechanical spindle adjustment with 5 turns
- NPN digital output with selectable light/dark switching mode
- Fast response time under 1.25 ms and switching frequency of 500 Hz
- Robust plastic ABS/PC housing with IP67 enclosure rating
- Cable connection with 3-wire, 2 m length
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and sensor alignment.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Material handling and packaging systems
- Safety and security systems requiring precise sensing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 rated housing ensures long product life and reduces waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK GTE6-N1211 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
