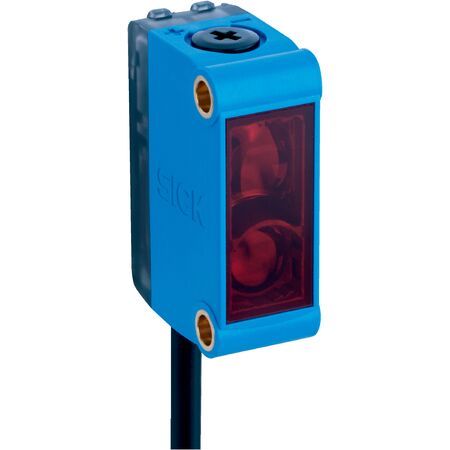

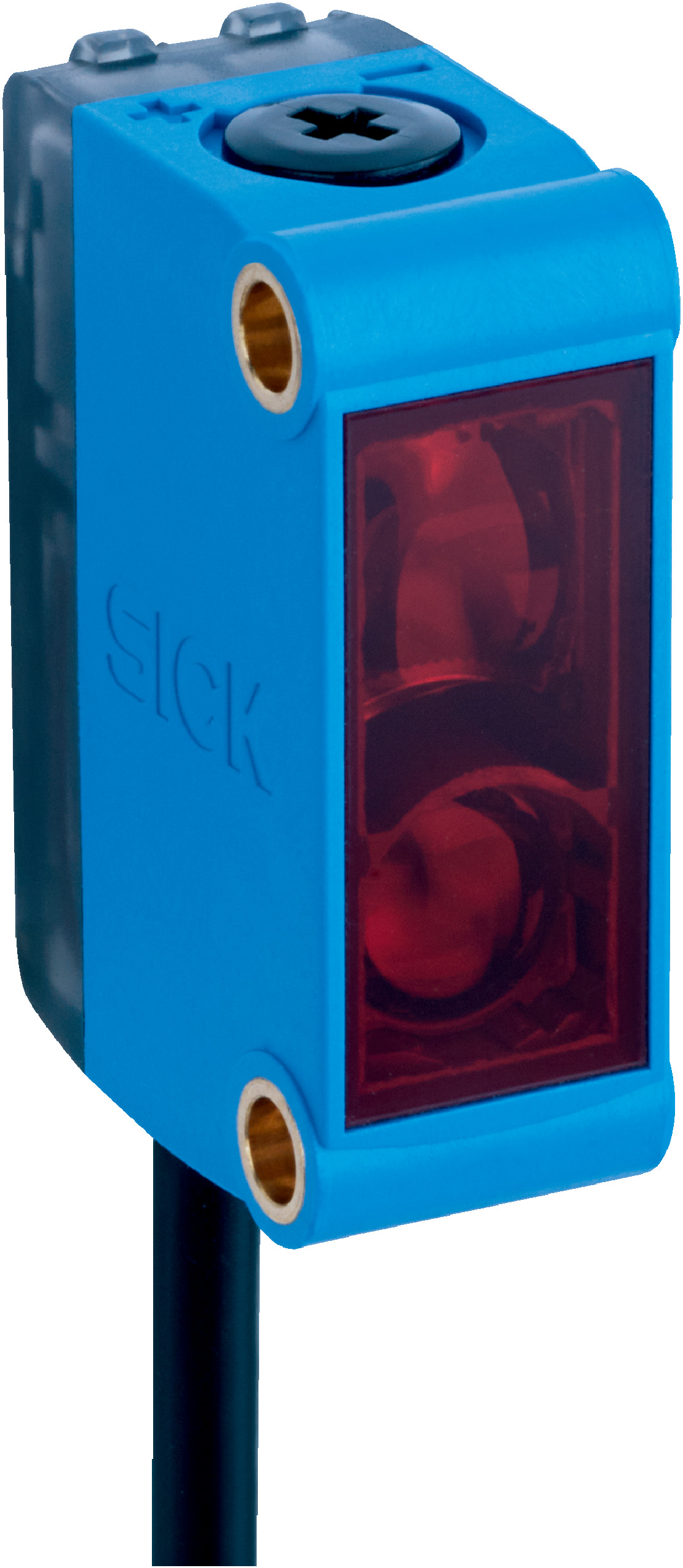

Photoelectric Proximity Sensor GTE6-P1231 | IP67 Rated | 500 Hz Switching Frequency | PNP Output | by SICK
The GTE6-P1231 Photoelectric Proximity Sensor is designed for industrial automation, featuring a sensing range of 40 mm to 900 mm and a high switching frequency of 500 Hz. With an IP67 enclosure rating, it ensures reliable performance in harsh environments, making it ideal for object detection and safety monitoring in manufacturing and material handling applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Proximity Sensor GTE6-P1231 | IP67 Rated | 500 Hz Switching Frequency | PNP Output | by SICK
Brand: SICK
SKU: 1065760
Alternatively Known As: Photoelectric sensor, Proximity sensor, Optical sensor, Photo sensor, SICK GTE6 sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC with ±10% ripple
- Current consumption: 30 mA
- Output type: PNP digital output with light/dark switching
- Output current max: ≤ 100 mA
- Response time: < 1.25 ms
- Switching frequency: 500 Hz
- Housing material: Plastic ABS/PC with PMMA front screen
- Cable: 3-wire, 2 m length, PVC insulation
- Enclosure rating: IP67
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- MTTFD: 1,749 years
- Mission time: 20 years
- Dimensions (H x L x W): 31.5mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Sensing range from 40 mm to 760 mm, max 900 mm
- PinPoint LED light source with visible red light at 650 nm wavelength
- Mechanical spindle adjustment with 5 turns
- Light/dark switching mode selectable via light/dark selector
- High switching frequency of 500 Hz and response time under 1.25 ms
- Protection class III with IP67 enclosure rating
- Cable connection with 3-wire, 2 m length
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper wiring and sensor alignment for optimal performance and safety.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with 30 mA current draw
- Durable IP67 rated housing reduces waste by extending product life
- Complies with China RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK GTE6-P1231 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
