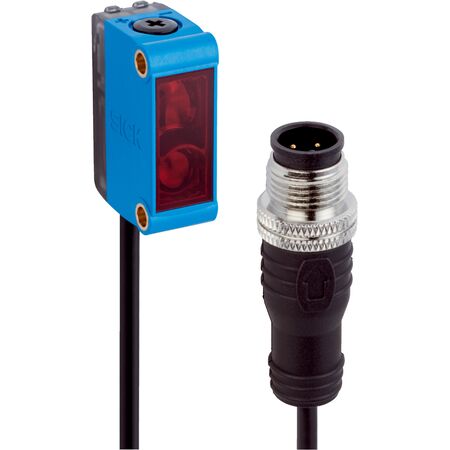

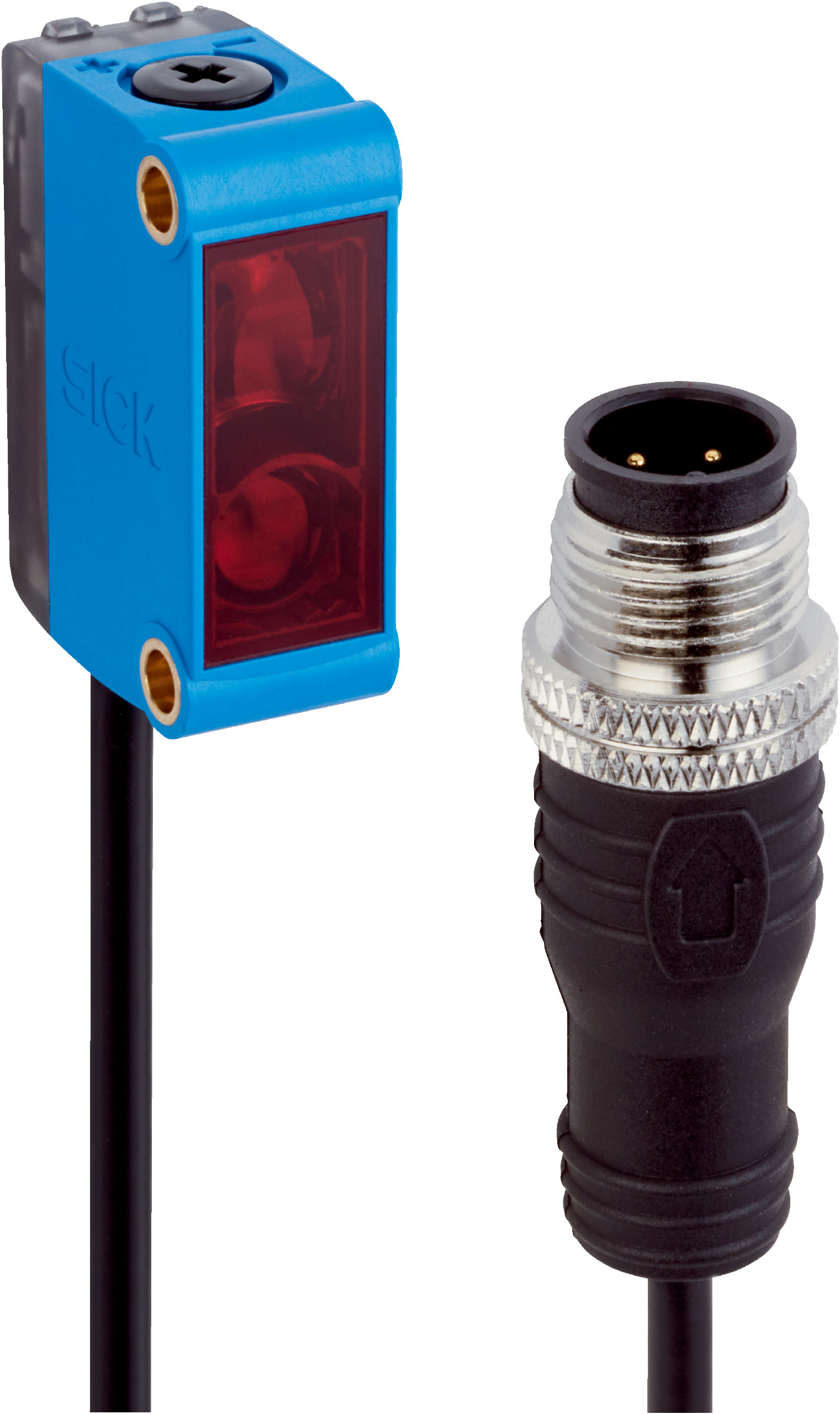

Photoelectric Proximity Sensor GTE6-P7211 | 15mm to 250mm Sensing Range | IP67 Rated | by SICK
The GTE6-P7211 Photoelectric Proximity Sensor is designed for industrial automation, featuring a sensing range of 15 mm to 250 mm and a fast response time of under 1.25 ms. With its durable IP67 rated housing, this sensor ensures reliable performance in demanding environments, making it ideal for precise object detection and position sensing in manufacturing lines.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Proximity Sensor GTE6-P7211 | 15mm to 250mm Sensing Range | IP67 Rated | by SICK
Brand: SICK
SKU: 1053589
Alternatively Known As: Photoelectric proximity sensor, SICK GTE6 sensor, Red light proximity sensor, Industrial photo sensor
Technical Specifications
- Functional principle: Photoelectric proximity sensor (energetic)
- Sensing range: 15 mm to 250 mm (max 10 mm to 300 mm)
- Light source: PinPoint LED, visible red light, 650 nm wavelength
- Light spot size: Ø 7 mm at 90 mm distance
- Supply voltage: 10 V DC to 30 V DC with ±10% ripple
- Current consumption: 30 mA
- Output type: PNP digital output with light/dark switching selectable
- Output current max: ≤ 100 mA
- Response time: < 1.25 ms
- Switching frequency: 500 Hz
- Protection class: III
- Housing material: Plastic ABS/PC with PMMA front screen
- Cable: PVC, 300 mm length with M12 4-pin connector
- Enclosure rating: IP67
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Dimensions (H x L x W): 31.5mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Sensing range from 15 mm to 250 mm, max 10 mm to 300 mm
- PinPoint LED visible red light with 650 nm wavelength
- Mechanical spindle adjustment with 5 turns
- Fast response time under 1.25 ms and switching frequency of 500 Hz
- IP67 rated enclosure for dust and water protection
- Cable with M12 male connector, 4-pin, 300 mm length
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper wiring and sensor alignment.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Safety and control systems requiring precise proximity sensing
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with 30 mA current draw
- Durable IP67 rated housing reduces replacement frequency and waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK GTE6-P7211 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and precise object detection applications.
