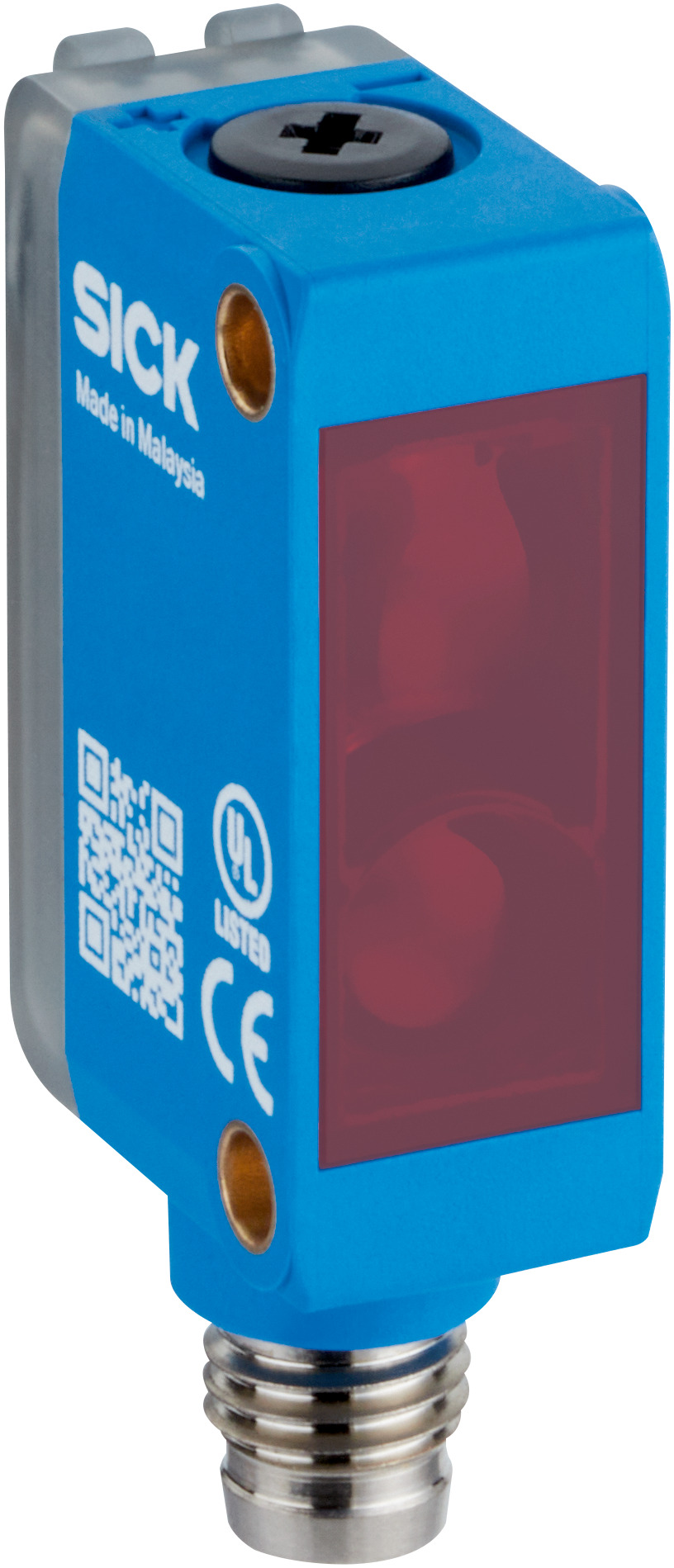

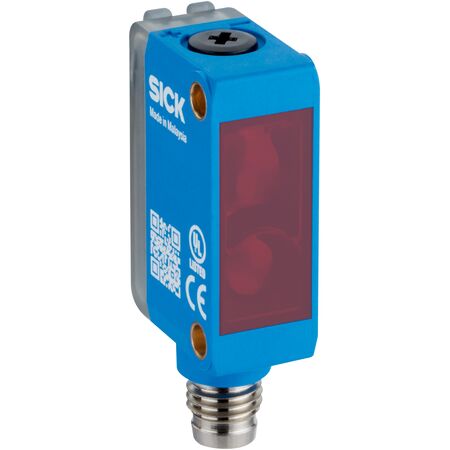

Photoelectric Proximity Sensor GTE6SP-22A1146EZZZ | IP67 Rated | 500 Hz Switching Frequency | Red Light Source | by SICK
The GTE6SP-22A1146EZZZ photoelectric proximity sensor is designed for industrial automation, featuring a sensing range of 30 mm to 900 mm and a high switching frequency of 500 Hz. With robust IP67 protection and a durable ABS housing, it ensures reliable performance in harsh environments, making it ideal for object detection and manufacturing process control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 20 mA without load at 24 V
- Output type: 1 PNP digital output, light switching mode
- Output current max: ≤ 100 mA
- Response time: ≤ 1,250 µs
- Switching frequency: 500 Hz
- Protection: Reverse polarity, overcurrent, short-circuit
- Housing material: Plastic ABS
- Front screen material: Plastic PMMA
- Connector: Male M8, 4-pin
- Enclosure rating: IP67
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 Hz to 55 Hz, amplitude 0.5 mm
- Dimensions (H x L x W): 31.6mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Sensing range from 30 mm to 900 mm, optimal between 80 mm and 190 mm
- PinPoint LED light source with visible red light at 640 nm wavelength
- Point-shaped light spot with Ø 3.4 mm at 150 mm distance
- LED indicators for power and object detection status
- Adjustable sensing range via potentiometer with 5 rotations
- Operating mode switch for light/dark switching inversion
- High switching frequency of 500 Hz and response time ≤ 1,250 µs
- Protection class III with reverse polarity, overcurrent, and short-circuit protection
- Robust plastic ABS housing with IP67 rating for harsh environments
- Wide ambient operating temperature range from -30 °C to +55 °C
- Shock resistance of 30 g and vibration resistance from 10 Hz to 55 Hz
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Long LED service life of 100,000 hours reduces waste and replacement frequency
- Energy-efficient operation with low current consumption (≤ 20 mA)
- Robust design minimizes environmental impact through durability and reliability
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK GTE6SP-22A1146EZZZ photoelectric proximity sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
