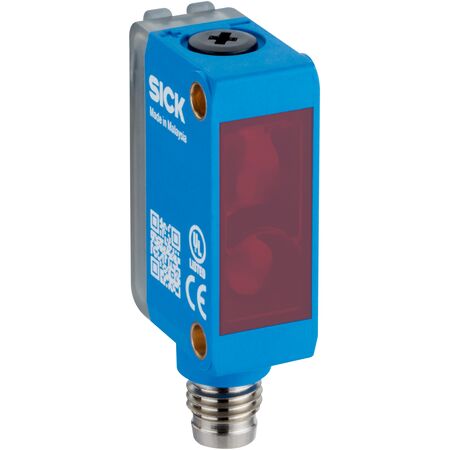

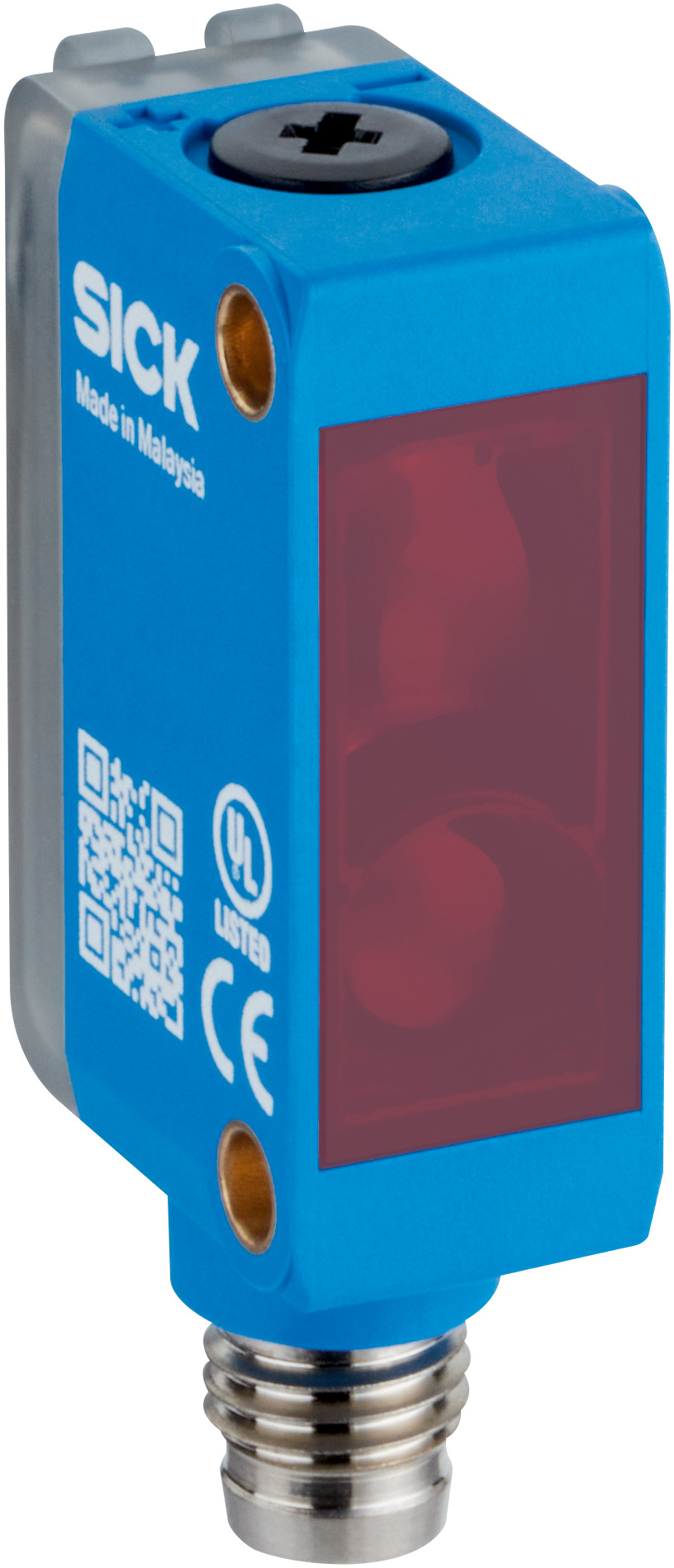

Photoelectric Proximity Sensor GTE6SP-22E1146EZZZ | IP67 Rated | 500 Hz Switching Frequency | Adjustable Sensing Range | by SICK
The GTE6SP-22E1146EZZZ photoelectric proximity sensor is designed for industrial automation, featuring a sensing range of 30 mm to 900 mm and a high switching frequency of 500 Hz. With robust IP67 protection and a durable ABS housing, it ensures reliable performance in harsh environments, making it ideal for manufacturing process control and material handling applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 20 mA without load at 24 V
- Output type: NPN open collector, light switching
- Output current max: ≤ 100 mA
- Switching frequency: 500 Hz
- Response time: ≤ 1,250 µs
- Protection: Reverse polarity, overcurrent, short-circuit
- Housing material: Plastic ABS
- Front screen material: Plastic PMMA
- Connector: Male M8, 4-pin
- Enclosure rating: IP67
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 Hz to 55 Hz, amplitude 0.5 mm
- Dimensions (H x L x W): 31.6mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Sensing range from 30 mm to 900 mm, optimal performance between 80 mm and 190 mm
- PinPoint LED light source with visible red light at 640 nm wavelength
- Point-shaped light spot with diameter of 3.4 mm at 150 mm distance
- LED indicators for power and object detection status
- Adjustable sensing range via potentiometer with 5 rotations
- Operating mode switch for inverting switching function (light/dark switching)
- High switching frequency of 500 Hz and response time ≤ 1,250 µs
- Protection class III with reverse polarity, overcurrent, and short-circuit protection
- Robust plastic ABS housing with IP67 rating for dust and water protection
- Operating temperature range from -30 °C to +55 °C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and sensor alignment.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Material handling and packaging systems
- Safety and monitoring in production lines
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Long LED service life of 100,000 hours reduces waste and replacement frequency
- Energy-efficient operation with low current consumption (≤ 20 mA)
- Robust design minimizes environmental impact through durability and reduced maintenance
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK GTE6SP-22E1146EZZZ photoelectric proximity sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
