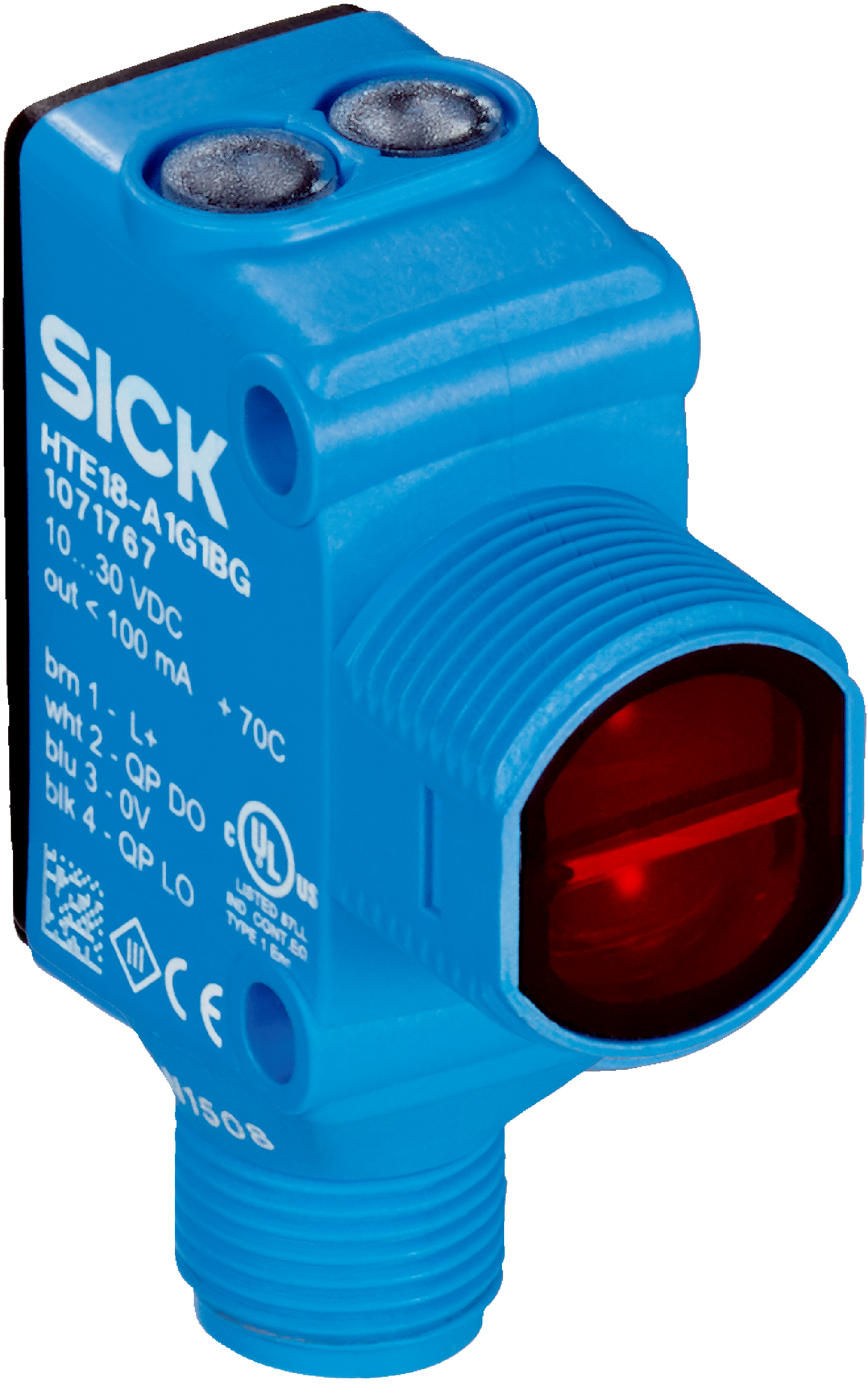

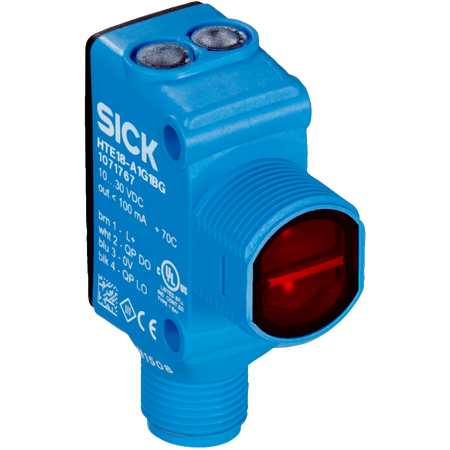

Photoelectric Proximity Sensor HTE18-B4A1AB | IP67 & IP69K Rated | Fast Response Time | by SICK
The HTE18-B4A1AB Photoelectric Proximity Sensor is designed for industrial automation, featuring a sensing range of 10 mm to 250 mm and a fast response time of ≤ 0.5 ms. With robust IP67 and IP69K ratings, it excels in harsh environments, making it ideal for manufacturing process control and safety monitoring in machinery.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Photoelectric Proximity Sensor, Infrared Proximity Sensor, M18 Proximity Sensor, Industrial Proximity Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 20 mA
- Switching output: PNP and NPN light switching
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1000 Hz
- Connection type: Male connector M12, 4-pin
- Cable material: Plastic, PVC
- Protection class: III
- Enclosure rating: IP67, IP69K
- Housing material: Plastic, VISTAL®
- Optics material: Plastic, PMMA
- Operating temperature: -40 °C to +70 °C
- Storage temperature: -40 °C to +75 °C
- EMC compliance: EN 60947-5-2
- Dimensions (H x L x W): 48.5mm x 31.8mm x 16.2mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Hybrid housing design with blue color
- Sensing range from 10 mm to 250 mm, max up to 1000 mm
- Infrared LED light source with 850 nm wavelength
- M18 threaded housing for head/side mounting
- Switching output options: PNP and NPN light switching
- High switching frequency of 1000 Hz and fast response time ≤ 0.5 ms
- Robust plastic VISTAL® housing and PMMA optics
- Protection rating IP67 and IP69K for harsh environments
- Wide ambient operating temperature range from -40 °C to +70 °C
- Electromagnetic compatibility compliant with EN 60947-5-2
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and safety standards to ensure proper operation and compliance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with supply voltage from 10 V DC to 30 V DC
- Durable design reduces waste and replacement frequency
- Complies with China RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK HTE18-B4A1AB Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
