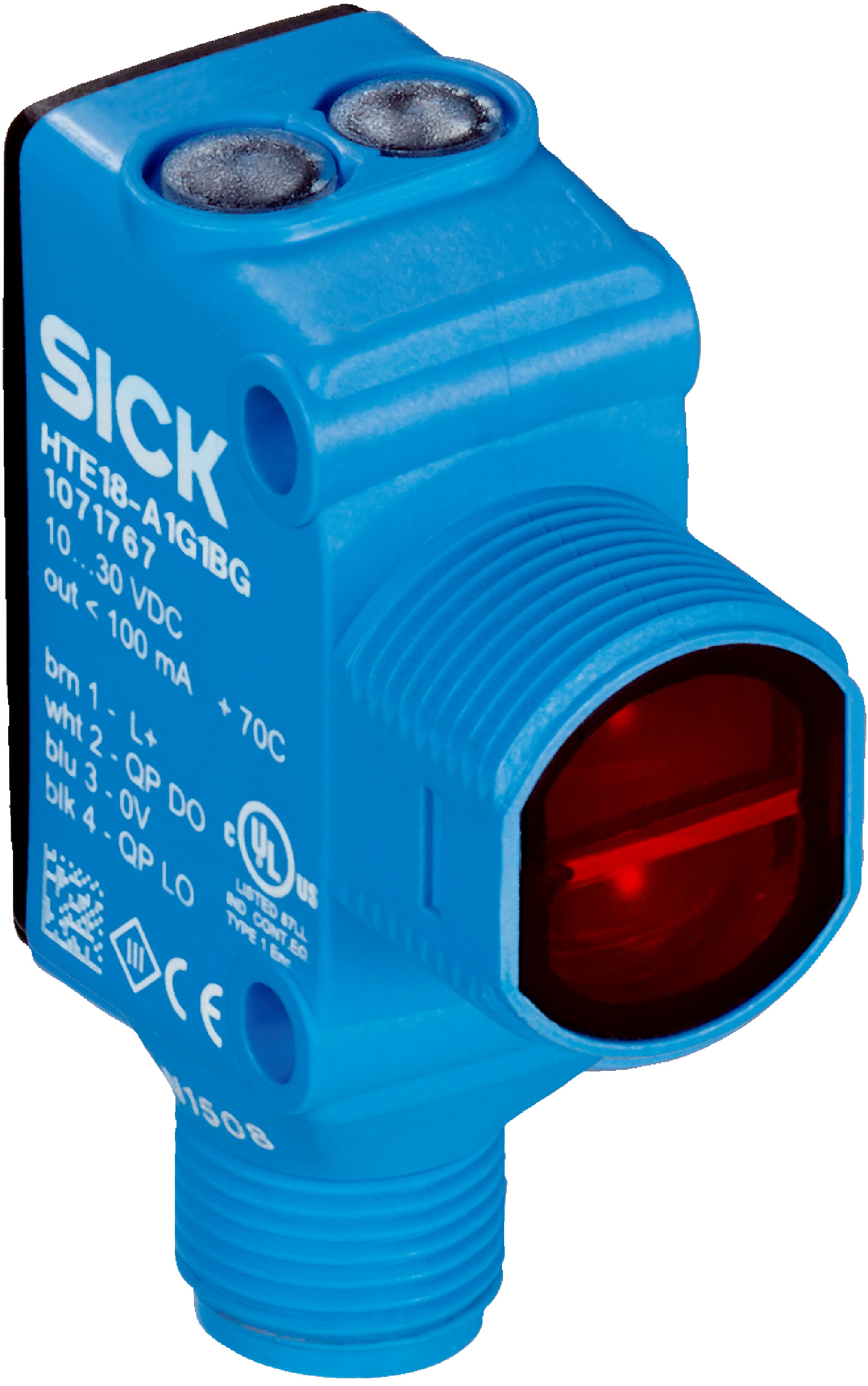

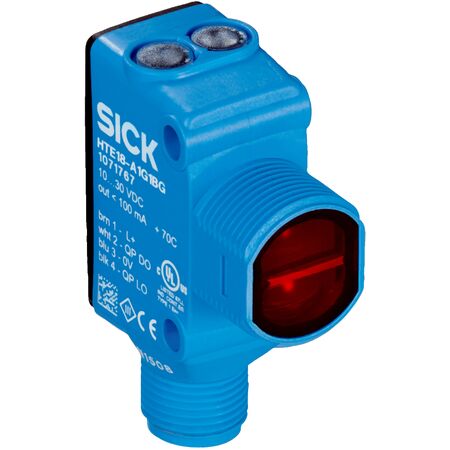

Photoelectric Proximity Sensor HTE18-P4A1BHP10 | IP67 & IP69K Rated | Fast Response Time | by SICK
The HTE18-P4A1BHP10 Photoelectric Proximity Sensor is designed for industrial automation, featuring a sensing range of 10 mm to 250 mm and a fast response time of ≤ 0.5 ms. With an IP67 and IP69K rated enclosure, it ensures robust protection in harsh environments, making it ideal for manufacturing process control and safety monitoring in machinery.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 20 mA
- Switching output: PNP complementary with light/dark switching
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1000 Hz
- Connection type: Male M12, 4-pin connector
- Housing material: Plastic, VISTAL®
- Optics material: Plastic, PMMA
- Enclosure rating: IP67, IP69K
- Operating temperature: -40 °C to +70 °C
- Storage temperature: -40 °C to +75 °C
- Electromagnetic compatibility: EN 60947-5-2
- Dimensions (H x L x W): 48.5mm x 31.8mm x 16.2mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Hybrid housing design with blue color
- Sensing range from 10 mm to 250 mm, max up to 1000 mm
- Infrared LED light source with 850 nm wavelength
- Adjustment potentiometers for sensitivity and light/dark switching
- Signal strength light bar for easy monitoring
- High switching frequency of 1000 Hz and fast response time ≤ 0.5 ms
- IP67 and IP69K rated enclosure for robust protection
- Operating temperature range from -40 °C to +70 °C
- Male M12 4-pin connector with plastic PVC cable
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable IP67/IP69K housing reduces waste by extending product life
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK HTE18-P4A1BHP10 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
