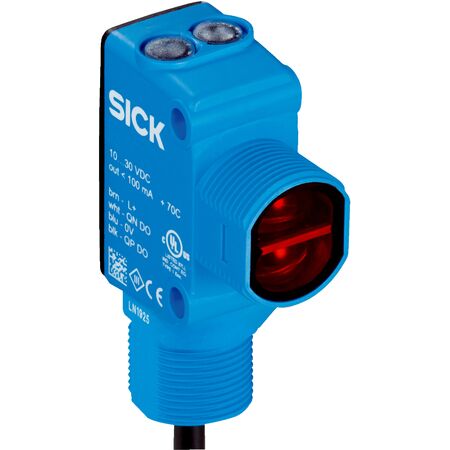

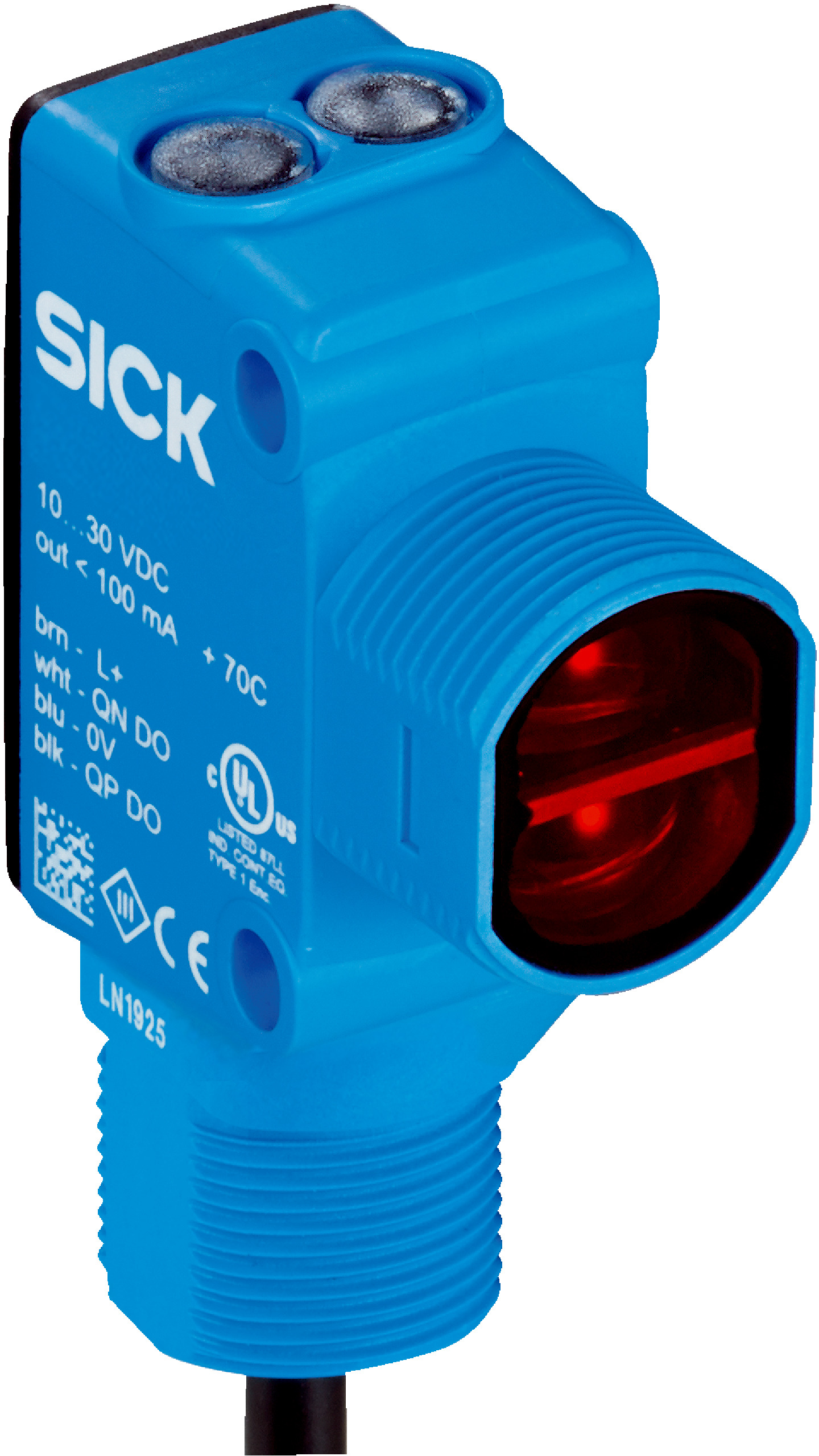

Photoelectric Proximity Sensor HTE18B-F4B2BH | IP67 & IP69K Rated | Fast Response Time | by SICK
The HTE18B-F4B2BH Photoelectric Proximity Sensor is designed for industrial automation, featuring a sensing range of 5 mm to 600 mm and a fast response time of ≤ 0.5 ms. With its durable IP67 and IP69K rated housing, this sensor is perfect for harsh environments, ensuring reliable object detection and safety monitoring in manufacturing and material handling applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 20 mA
- Switching output: Push-pull PNP/NPN complementary
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Light source: PinPoint LED, wavelength 631 nm
- Light spot size at 500 mm: 10 mm x 18 mm
- Connection: Cable with M12 male connector, 4-pin, 150 mm
- Housing material: Plastic VISTAL®
- Optics material: Plastic PMMA
- Protection class: III
- Enclosure rating: IP67, IP69K
- Operating temperature: –40 °C to +70 °C
- Storage temperature: –40 °C to +75 °C
- EMC compliance: EN 60947-5-2
- Dimensions (H x L x W): 50.1mm x 31.4mm x 16.2mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Hybrid housing design with blue color
- Sensing range from 5 mm up to 600 mm
- Visible red light with PinPoint LED light source
- Signal strength light bar for easy adjustment
- Light/dark switching with potentiometer adjustments
- Push-pull PNP/NPN complementary switching outputs
- Fast response time of ≤ 0.5 ms and switching frequency of 1,000 Hz
- Cable with M12 male connector, 4-pin, 150 mm length
- High protection rating IP67 and IP69K for harsh environments
- Wide ambient operating temperature range from –40 °C to +70 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable IP67/IP69K rated housing reduces waste from replacements
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK HTE18B-F4B2BH Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
