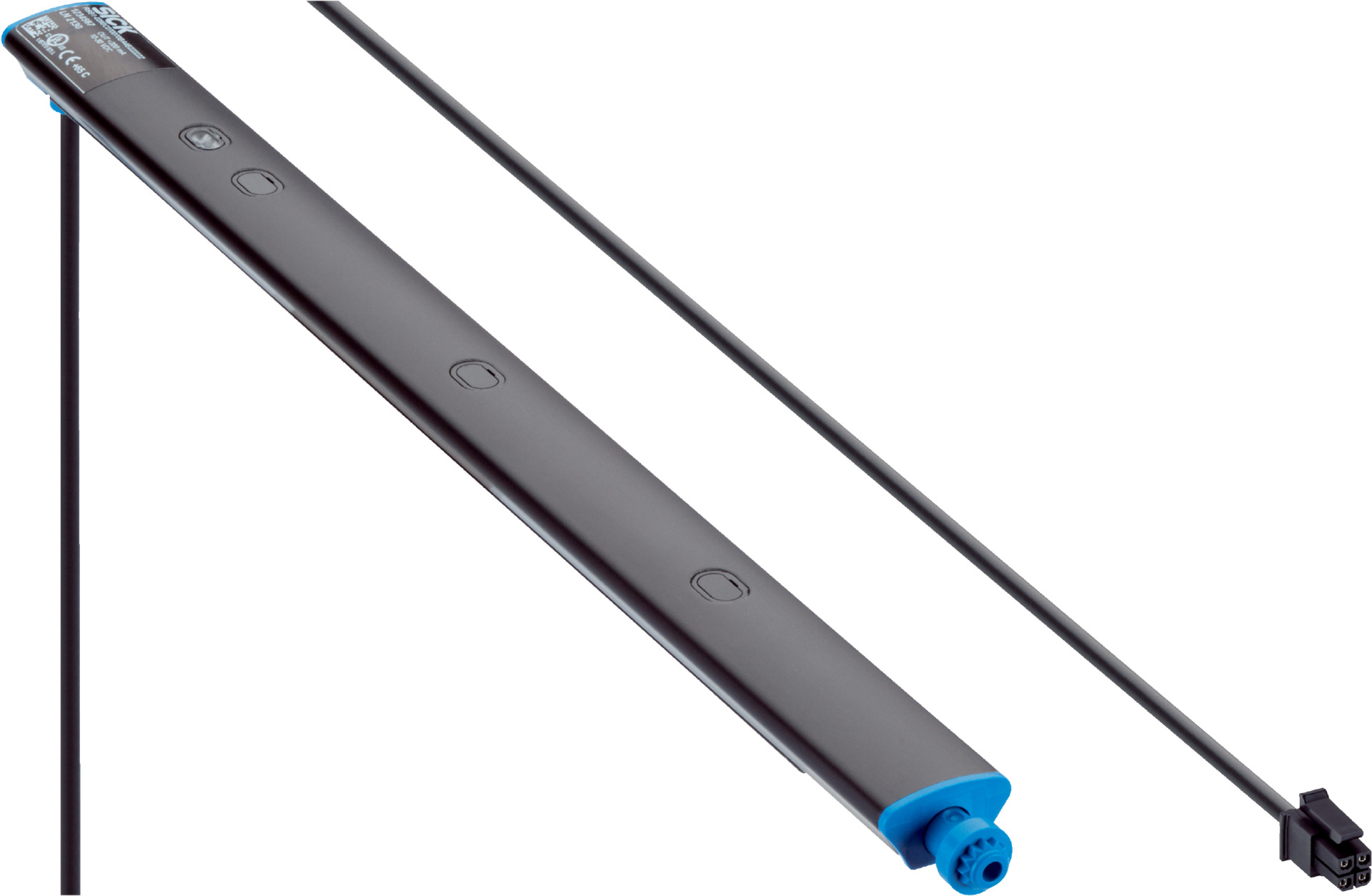

Photoelectric Proximity Sensor | Infrared LED | 2 mm to 300 mm Sensing Range | IP67 Rated | by SICK
The Photoelectric Proximity Sensor is designed for precise object detection, featuring a sensing range from 2 mm to 300 mm and an infrared LED light source at 850 nm. With a rapid response time of ≤ 1 ms and an IP67 rated enclosure, this sensor is perfect for industrial automation and detecting various object types, ensuring reliability in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor (energetic)
- Sensing range: 2 mm to 300 mm (optimal 2 mm to 45 mm)
- Light source: Infrared LED, 850 nm wavelength
- Number of beams: 7 with 118 mm separation
- Response time: ≤ 1 ms
- Switching frequency: 500 Hz
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 32 mA at 24 V
- Output type: 1 PNP digital output, light switching
- Output current max: ≤ 100 mA
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -40 °C to +60 °C
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 Hz to 55 Hz, amplitude 1 mm
- Cable: 150 mm length with MOLEX 4-pin connector
- Housing material: Anodised aluminum
- Front screen: PMMA plastic
- Dimensions (H x L x W): 17mm x 856mm x 20mm
- Weight: 0.31 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Sensing range from 2 mm to 300 mm, optimal 2 mm to 45 mm
- Infrared LED light source with 850 nm wavelength
- 7 beams with 118 mm beam separation
- LED green operating indicator and LED yellow status indicator
- Response time ≤ 1 ms and switching frequency 500 Hz
- IP67 rated enclosure for robust protection
- Operating temperature range from -40 °C to +60 °C
- Shock resistance 30 g and vibration resistance 10 Hz to 55 Hz
- Cable with MOLEX-connector 4-pin, 150 mm length
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and safety compliance.
Applications
- Detecting flat objects
- Detecting perforated objects
- Detecting objects with position tolerances
- Detecting uneven, shiny objects
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Long LED service life of 100,000 hours reduces waste and replacement frequency
- Energy-efficient LED technology minimizes power consumption
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now

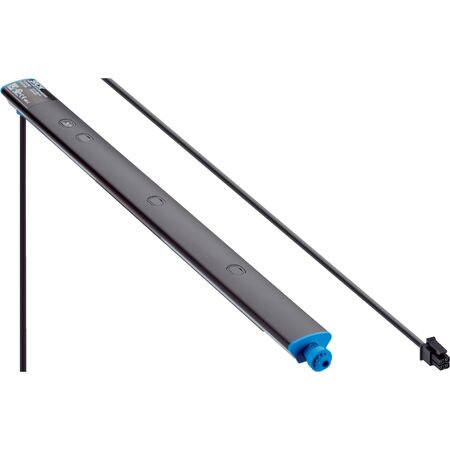

The SICK RSB1-0856G118086PZ0BS02ZZZ Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
