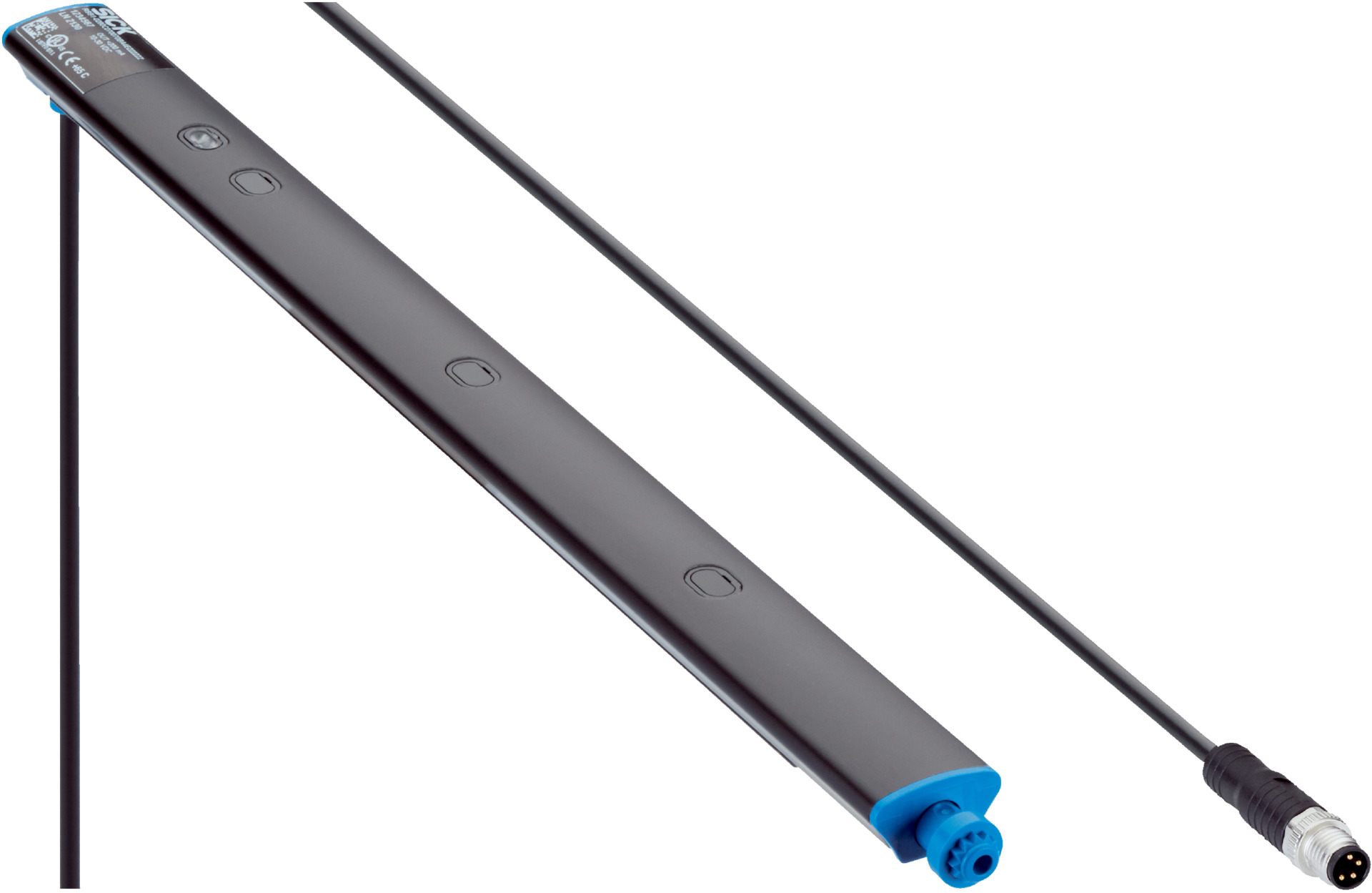

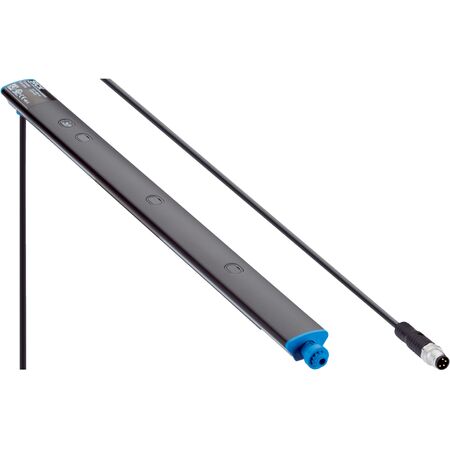

Photoelectric Proximity Sensor | Infrared LED | IP67 Rated | 2mm to 300mm Sensing Range | by SICK
The Photoelectric Proximity Sensor is designed for precise object detection, featuring an infrared LED light source with a sensing range of 2mm to 300mm. Ideal for industrial automation, this sensor offers a fast response time of ≤ 1 ms and operates effectively in challenging environments with an IP67 rating for dust and water protection. Its durable anodised aluminum housing ensures longevity, making it perfect for detecting flat, perforated, or shiny objects.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 20mm x 17mm x 672mm
- Weight: 0.244 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Sensing range from 2 mm to 300 mm, optimal performance between 2 mm and 45 mm
- Infrared LED light source with 850 nm wavelength
- Point-shaped light spot size 27 mm x 29 mm at 45 mm distance
- Four beams with 134 mm beam separation
- LED green operating indicator and LED yellow status indicator
- Light/dark switching mode with PNP output
- Response time ≤ 1 ms and switching frequency 500 Hz
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -40 °C to +60 °C
- Shock resistance 30 g and vibration resistance 10 Hz to 55 Hz
- Housing made of anodised aluminum with PMMA front screen
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure correct wiring and optimal sensor performance.
Applications
- Detecting flat objects
- Detecting perforated objects
- Detecting objects with position tolerances
- Detecting uneven, shiny objects
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable metal housing extends product life reducing waste
- High reliability reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK RSB1-0672D134135FP3DZZZP0C Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
