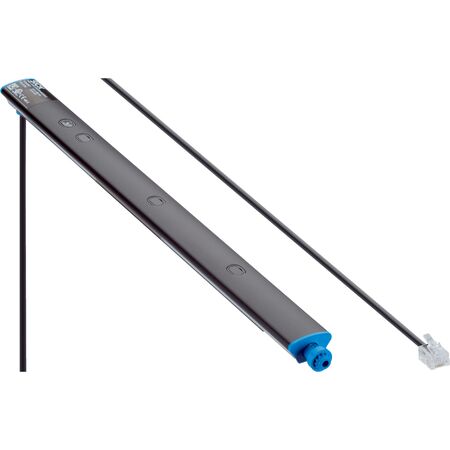

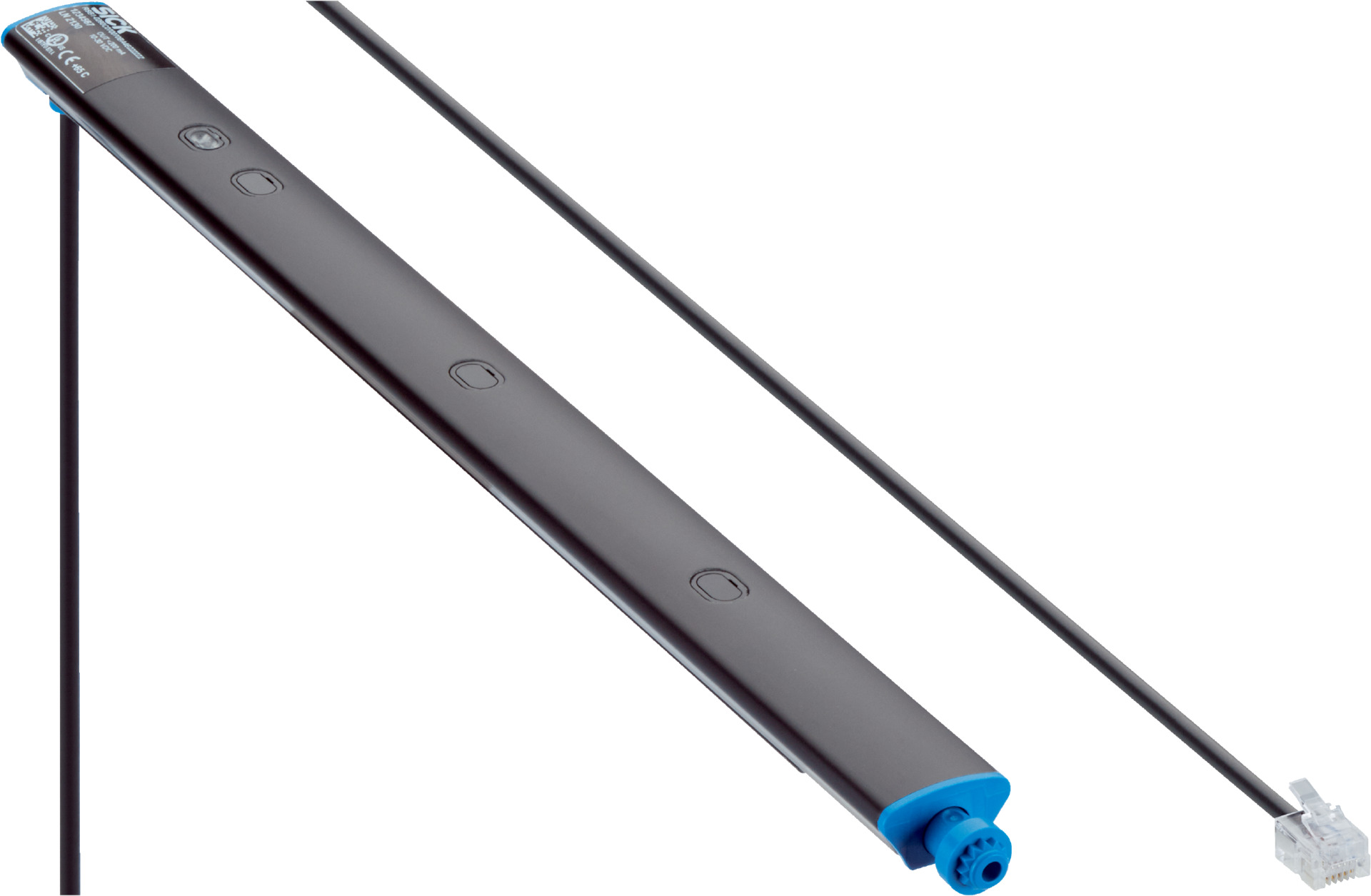

Photoelectric Proximity Sensor | Infrared LED | IP67 Rated | 2mm to 300mm Sensing Range | by SICK
The photoelectric proximity sensor RSB1-0614D106148HKAHZZZZZZ features an infrared LED light source and a sensing range from 2 mm to 300 mm, making it ideal for detecting flat, perforated, and shiny objects. With a rapid response time of ≤ 1 ms and an IP67 rated enclosure, this sensor is built for reliable performance in industrial automation applications, ensuring durability and efficiency in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 17 mA without load at 24 V
- Switching mode: Light/dark switching with PNP open collector output
- Output current max: ≤ 100 mA
- Response time: ≤ 1 ms
- Switching frequency: 500 Hz
- LED risk group: Free group
- Cable with RJ12 6-pin connector, 2.5 m length
- Housing material: Anodised aluminum with PMMA front screen
- Operating temperature: -40 °C to +60 °C
- Enclosure rating: IP67
- Dimensions (H x L x W): 17mm x 614mm x 20mm
- Weight: 0.223 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Sensing range from 2 mm to 300 mm, optimal performance between 2 mm and 45 mm
- Infrared LED light source with 850 nm wavelength
- Point-shaped light spot size 27 mm x 29 mm at 45 mm distance
- Four beams with 106 mm beam separation
- LED green operating indicator and LED yellow status indicator
- Response time ≤ 1 ms and switching frequency 500 Hz
- Protection class III with reverse polarity, overcurrent, and short-circuit protection
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -40 °C to +60 °C
- Shock resistance 30 g and vibration resistance 10 Hz to 55 Hz
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Detecting flat objects
- Detecting perforated objects
- Detecting objects with position tolerances
- Detecting uneven, shiny objects
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Long LED service life of 100,000 hours reduces waste and replacement frequency
- Energy-efficient LED technology minimizes power consumption
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK RSB1-0614D106148HKAHZZZZZZ photoelectric proximity sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
