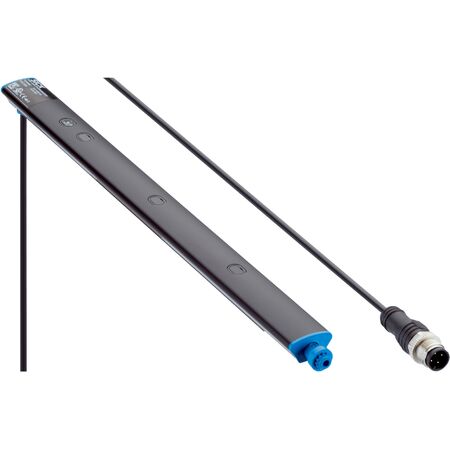

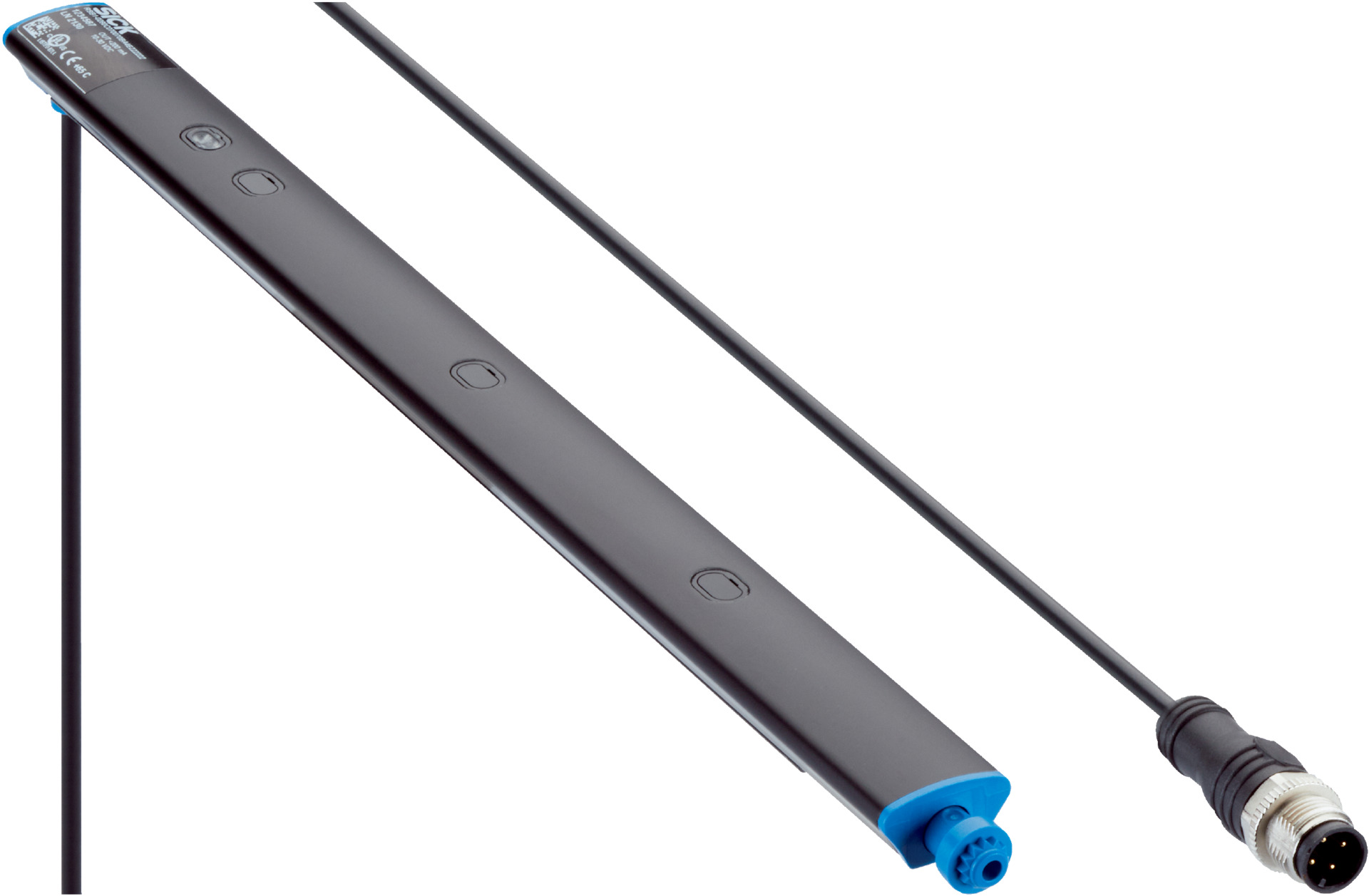

Photoelectric Proximity Sensor | Infrared LED | IP67 Rated | 2mm to 300mm Sensing Range | by SICK
The Photoelectric Proximity Sensor is designed for precise object detection in industrial automation, featuring an infrared LED light source and a sensing range of 2mm to 300mm. With an IP67 rated enclosure for dust and water protection, this robust sensor ensures reliable performance in challenging environments, making it ideal for detecting various object types in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 25 mA without load at 24 V
- Output type: PNP open collector, max 100 mA
- Response time: ≤ 1 ms
- Switching frequency: 500 Hz
- Protection class: III
- Ripple: ≤ 5 V pp
- LED risk group: Free group
- Operating temperature: -40 °C to +60 °C
- Storage temperature: -40 °C to +75 °C
- Enclosure rating: IP67
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 Hz to 55 Hz, amplitude 1 mm
- EMC compliance: EN 60947-5-2
- Dimensions (H x L x W): 17mm x 690mm x 20mm
- Weight: 0.25 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Sensing range from 2 mm to 300 mm, optimal 2 mm to 45 mm
- Infrared LED light source with 850 nm wavelength
- Point-shaped light spot size 27 mm x 29 mm at 45 mm distance
- Six beams with 98 mm separation and 99 mm distance to housing edge
- LED indicators for power and object presence status
- Robust metal aluminum anodised housing with PMMA front screen
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -40 °C to +60 °C
- High shock and vibration resistance
- Cable with M12 4-pin connector, 150 mm length
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for object detection
- Detecting flat, perforated, uneven, and shiny objects
- Position tolerance detection in manufacturing processes
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Long LED service life of 100,000 hours reduces waste and replacement frequency
- Energy-efficient LED light source minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for details.
Available Now
The SICK RSB1-0690F098099HH4BS01ZZZ Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
