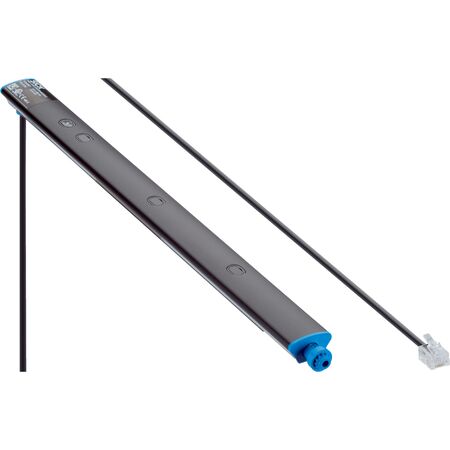

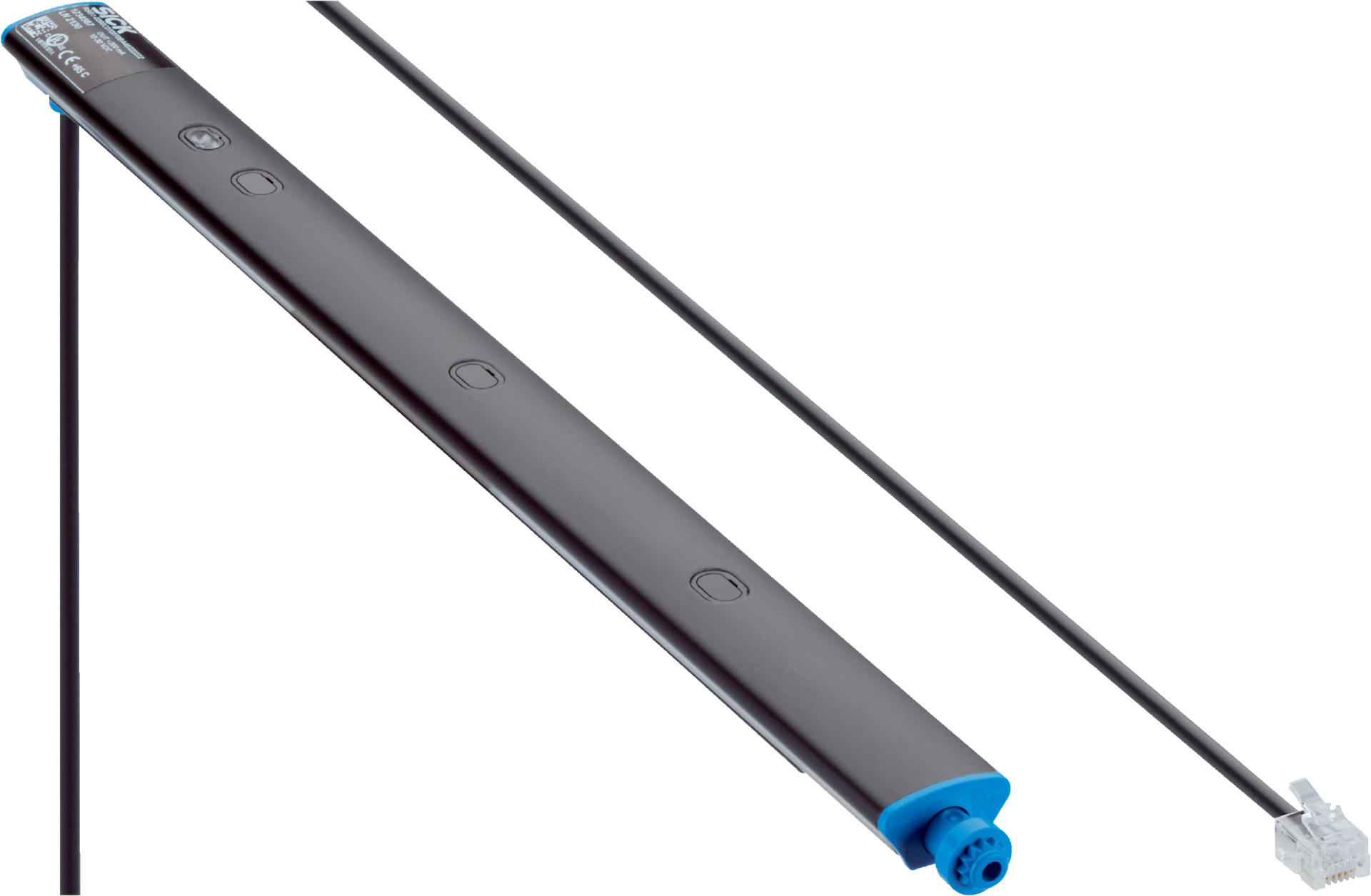

Photoelectric Proximity Sensor | Infrared LED | IP67 Rated | 2 mm to 300 mm Sensing Range | by SICK
The Photoelectric Proximity Sensor RSB1-0725D145145PNAGS01P0E features an infrared LED light source with an 850 nm wavelength, providing a sensing range from 2 mm to 300 mm. With a rapid response time of ≤ 1 ms and a switching frequency of 500 Hz, this sensor is perfect for detecting flat, perforated, and shiny objects in industrial automation applications. Its robust IP67 enclosure ensures durability in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 17 mA without load at 24 V
- Digital outputs: 2 complementary PNP outputs
- Switching mode: Light switching
- Output current max: ≤ 100 mA
- Response time: ≤ 1 ms
- Switching frequency: 500 Hz
- LED wavelength: 850 nm
- LED risk group: Free group
- Enclosure rating: IP67
- Operating temperature: -40 °C to +60 °C
- Housing material: Anodised aluminum
- Front screen material: PMMA plastic
- Cable length: 2 m with RJ12 6-pin connector
- Dimensions (H x L x W): 17mm x 725mm x 20mm
- Weight: 0.263 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Sensing range from 2 mm to 300 mm, recommended 2 mm to 45 mm
- Infrared LED light source with 850 nm wavelength
- Point-shaped light spot size 27 mm x 29 mm at 45 mm distance
- Four beams with 145 mm beam separation
- LED green operating indicator and LED yellow status indicator
- Type with T-slot for mounting
- Response time ≤ 1 ms and switching frequency 500 Hz
- Protection class III with reverse polarity, overcurrent, and short-circuit protection
- IP67 rated enclosure for dust and water protection
- Operating temperature range -40 °C to +60 °C
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper wiring and compliance with safety standards.
Applications
- Detecting flat objects
- Detecting perforated objects
- Detecting objects with position tolerances
- Detecting uneven, shiny objects
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Long LED service life of 100,000 hours reduces waste and replacement frequency
- Energy-efficient LED light source minimizes power consumption
- Robust IP67 housing ensures durability and reduces environmental impact from frequent replacements
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK RSB1-0725D145145PNAGS01P0E photoelectric proximity sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
