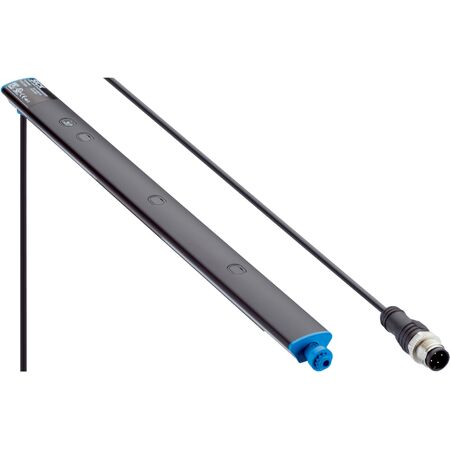

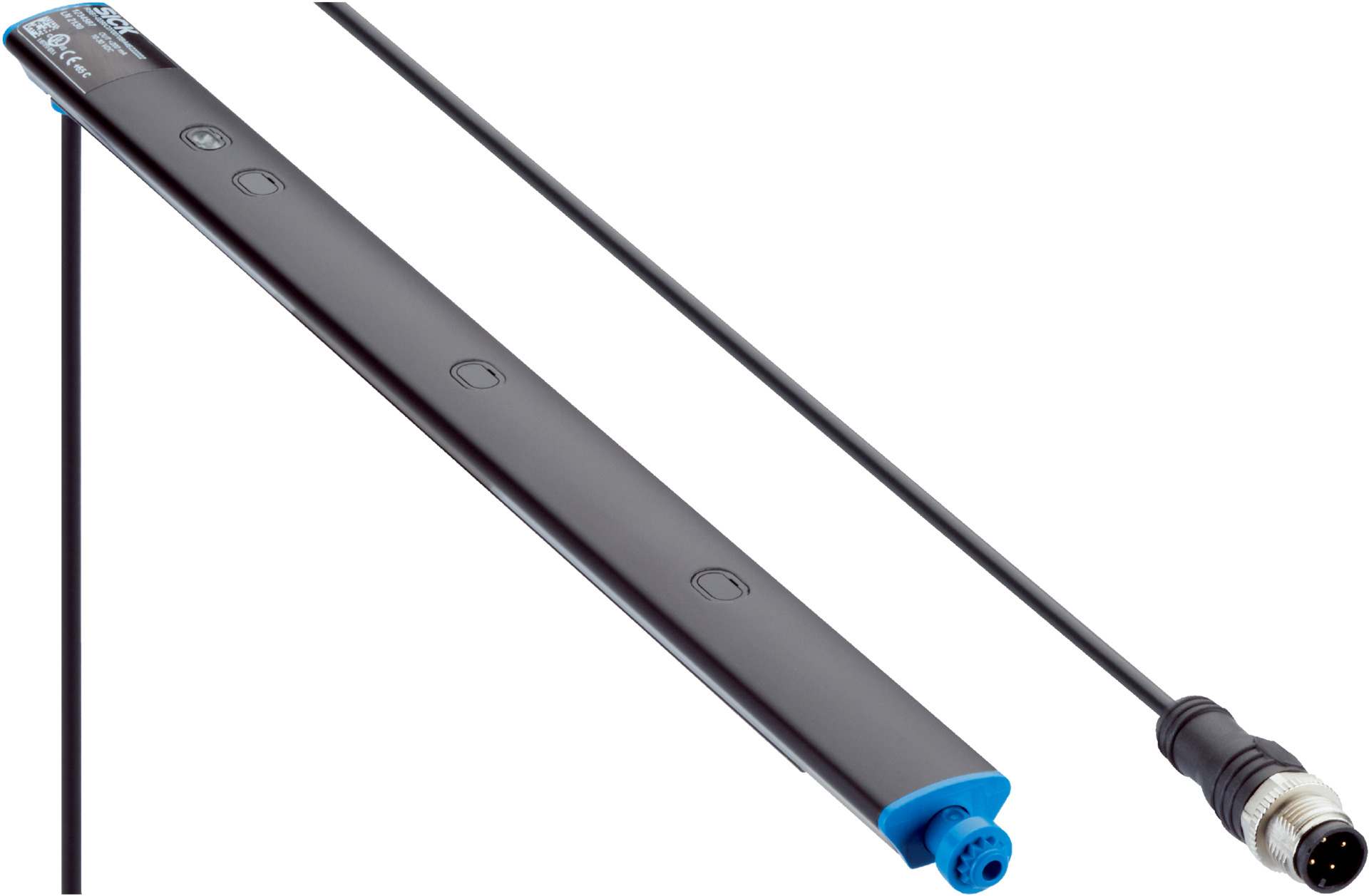

Photoelectric Proximity Sensor | Infrared LED | IP67 Rated | 500 Hz Switching Frequency | by SICK
The Photoelectric Proximity Sensor is designed for precise object detection in industrial automation, featuring an infrared LED light source and a sensing range of 2 mm to 300 mm. With a high switching frequency of 500 Hz and a rapid response time of ≤ 1 ms, it ensures reliable performance in detecting various object types, including flat and shiny surfaces. Built to withstand harsh environments, this sensor is IP67 rated for dust and water protection, making it ideal for manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 15 mA without load at 24 V
- Digital outputs: 2 complementary push-pull (PNP/NPN), light/dark switching
- Output current max: ≤ 100 mA
- Response time: ≤ 1 ms
- Switching frequency: 500 Hz
- LED risk group: Free group
- Protection: Reverse polarity, overcurrent, short-circuit
- Enclosure rating: IP67
- Operating temperature: -40 °C to +60 °C
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 Hz to 55 Hz, amplitude 1 mm
- Dimensions (H x L x W): 17mm x 400mm x 20mm
- Weight: 0.15 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Sensing range from 2 mm to 300 mm, optimal 2 mm to 45 mm
- Infrared LED light source with 850 nm wavelength
- Point-shaped light spot size 27 mm x 29 mm at 45 mm distance
- Three beams with 100 mm separation
- LED indicators for power and object presence
- High switching frequency of 500 Hz and response time ≤ 1 ms
- Protection class III with reverse polarity, overcurrent, and short-circuit protection
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -40 °C to +60 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor equipment to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Detecting flat, perforated, uneven, and shiny objects
- Position tolerance detection in manufacturing processes
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Long LED service life of 100,000 hours reduces waste and replacement frequency
- Energy-efficient LED technology minimizes power consumption
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK RSB1-0400C100100AB4DZZZZZZ Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
