Photoelectric Proximity Sensor | Infrared LED | IP67 Rated | 500 Hz Switching Frequency | by SICK
The Photoelectric Proximity Sensor is designed for precise object detection in industrial automation, featuring an infrared LED light source and a sensing range of 2 mm to 300 mm. With a robust IP67-rated aluminum housing, it ensures reliable performance in harsh environments, making it ideal for detecting various object types in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 23 mA without load at 24 V
- Output type: 1 PNP digital output, light switching mode
- Output current max: ≤ 100 mA
- Response time: ≤ 1 ms
- Switching frequency: 500 Hz
- Protection: Reverse polarity, overcurrent, short-circuit protected
- Enclosure rating: IP67
- Operating temperature: -40 °C to +60 °C
- Material: Anodised aluminum housing, PMMA front screen, PVC cable
- Cable length: 1.5 m with MOLEX 4-pin connector
- Dimensions (H x L x W): 20mm x 17mm x 559mm
- Weight: 0.203 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Sensing range from 2 mm to 300 mm, optimal 2 mm to 45 mm
- Infrared LED light source with 850 nm wavelength
- Point-shaped light spot size 27 mm x 29 mm at 45 mm distance
- 5 beams with 100 mm beam separation
- LED indicators for power and object presence
- High switching frequency of 500 Hz and response time ≤ 1 ms
- Protection class III with reverse polarity, overcurrent, and short-circuit protection
- Robust metal aluminum anodised housing with IP67 rating
- Wide ambient operating temperature range from -40 °C to +60 °C
- Shock resistance 30 g and vibration resistance 10 Hz to 55 Hz
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connection and sensor alignment.
Applications
- Industrial automation for object detection
- Detecting flat, perforated, uneven, and shiny objects
- Position tolerance detection in manufacturing processes
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Long LED service life of 100,000 hours reduces waste and replacement frequency
- Energy-efficient LED technology minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

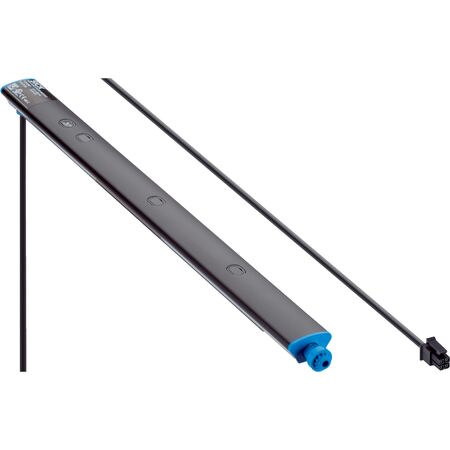

The SICK RSB1-0559E100080PZEFZZZZZZ photoelectric proximity sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
