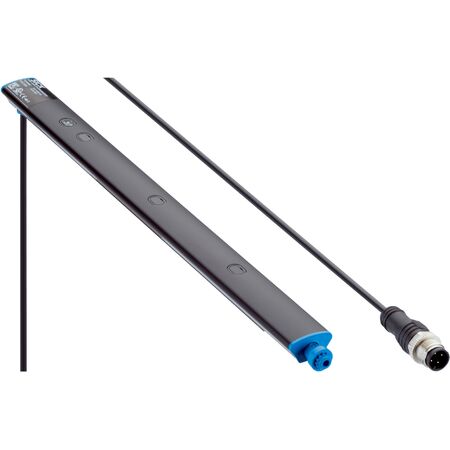

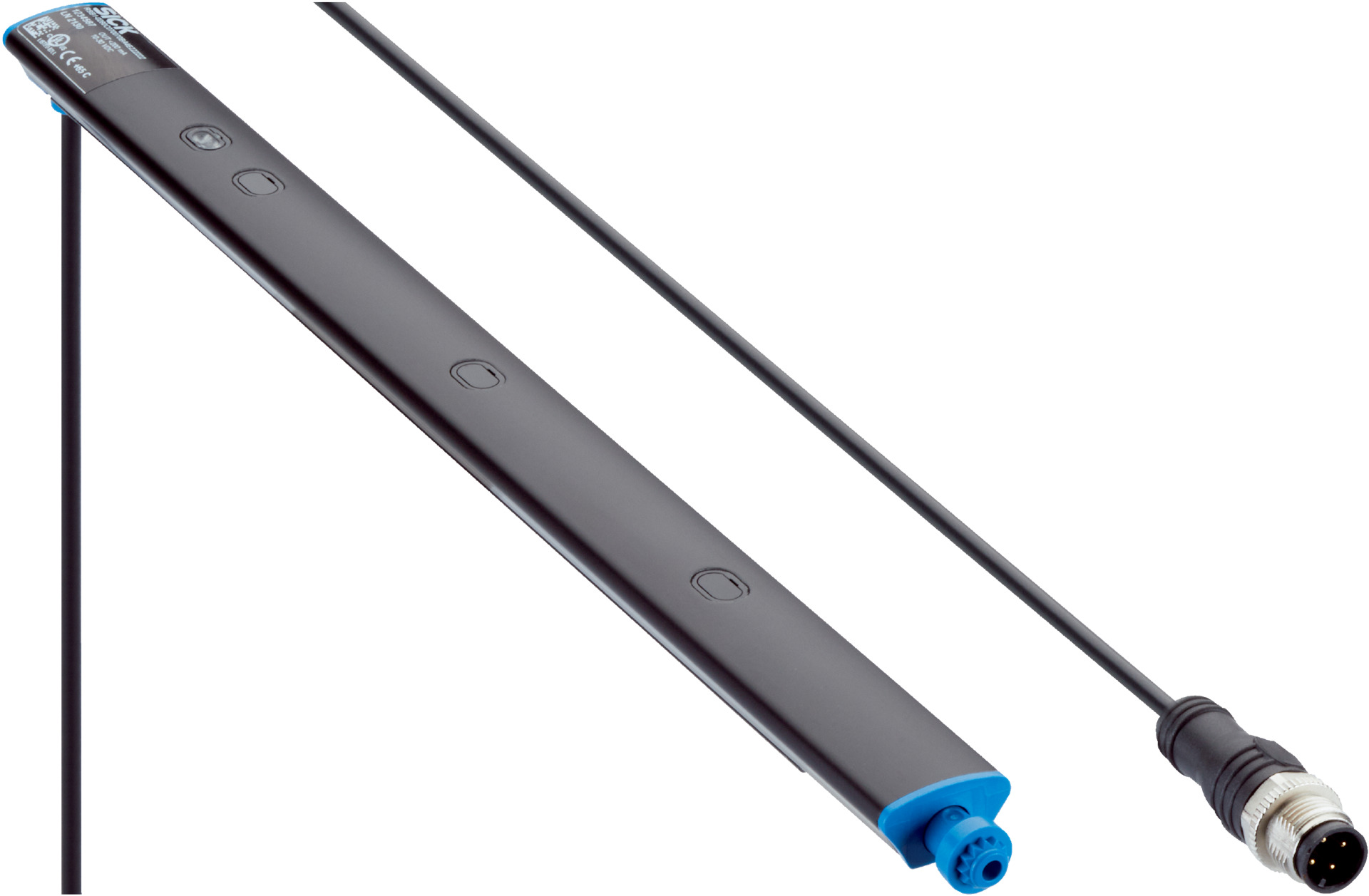

Photoelectric Proximity Sensor | Infrared LED | IP67 Rated | 500 Hz Switching Frequency | by SICK
The Photoelectric Proximity Sensor RSB1-0910H101102BA4KZZZP0A features an infrared LED light source and a high switching frequency of 500 Hz, making it ideal for industrial automation and object detection. With a sensing range of 2 mm to 300 mm and an IP67 rated enclosure, it ensures reliable performance in challenging environments, detecting various object types with precision.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 38 mA at 24 V DC without load
- Digital outputs: 2 complementary push-pull (PNP/NPN), light/dark switching
- Output current max: ≤ 100 mA
- Response time: ≤ 1 ms
- Switching frequency: 500 Hz
- Protection: Reverse polarity, overcurrent, short-circuit
- Enclosure rating: IP67
- Operating temperature: -40 °C to +60 °C
- Material: Anodised aluminum housing, PMMA front screen, PVC cable
- Cable length: 3 m with M12 4-pin connector
- Dimensions (H x L x W): 17mm x 910mm x 20mm
- Weight: 0.33 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Sensing range from 2 mm to 300 mm, optimal 2 mm to 45 mm
- Infrared LED light source with 850 nm wavelength
- Point-shaped light spot size 27 mm x 29 mm at 45 mm distance
- 8 beams with 101 mm beam separation
- LED indicators for power and object presence
- High switching frequency of 500 Hz and response time ≤ 1 ms
- Protection class III with reverse polarity, overcurrent, and short-circuit protection
- IP67 rated enclosure for dust and water resistance
- Operating temperature range from -40 °C to +60 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and safety standards.
Applications
- Industrial automation for object detection
- Detecting flat, perforated, uneven, and shiny objects
- Position tolerance detection in manufacturing processes
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Long LED service life of 100,000 hours reduces waste and replacement frequency
- Energy-efficient LED technology minimizes power consumption
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK RSB1-0910H101102BA4KZZZP0A photoelectric proximity sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
