Photoelectric Proximity Sensor | Infrared LED | IP67 Rated | 500 Hz Switching Frequency | by SICK
The Photoelectric Proximity Sensor is designed for industrial automation, featuring an infrared LED light source and a robust IP67-rated aluminum housing. With a sensing range of 2 mm to 300 mm and a high switching frequency of 500 Hz, it excels in detecting various object types, ensuring reliable performance in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 23 mA at 24 V
- Output type: PNP, light switching
- Output current max: ≤ 100 mA
- Response time: ≤ 1 ms
- Switching frequency: 500 Hz
- Protection: Reverse polarity, overcurrent, short-circuit
- Enclosure rating: IP67
- Operating temperature: -40 °C to +60 °C
- Material: Aluminum anodised housing, PMMA front screen
- Cable: PVC, 150 mm length with MOLEX 4-pin connector
- Dimensions (H x L x W): 20mm x 17mm x 556mm
- Weight: 0.202 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Sensing range from 2 mm to 300 mm, optimal 2 mm to 45 mm
- Infrared LED light source with 850 nm wavelength
- Point-shaped light spot size 27 mm x 29 mm at 45 mm distance
- 5 beams with 100 mm beam separation
- LED indicators for power and object presence
- High switching frequency of 500 Hz and response time ≤ 1 ms
- Robust metal aluminum anodised housing with IP67 rating
- Wide ambient operating temperature range from -40 °C to +60 °C
- Protection class III with reverse polarity, overcurrent, and short-circuit protection
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for object detection
- Detecting flat, perforated, uneven, and shiny objects
- Position tolerance detection in manufacturing processes
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Long LED service life of 100,000 hours reduces waste and replacement frequency
- Energy-efficient LED light source minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now

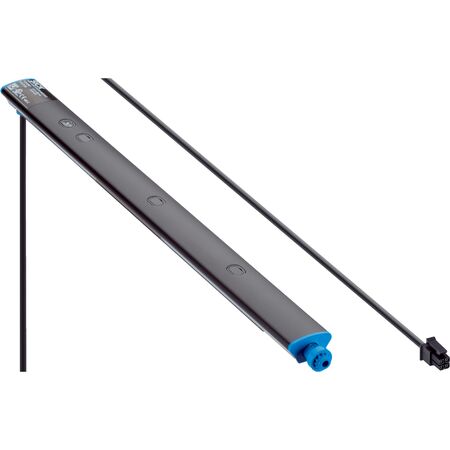

The SICK RSB1-0556E100078PZ0BS02ZZZ Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
