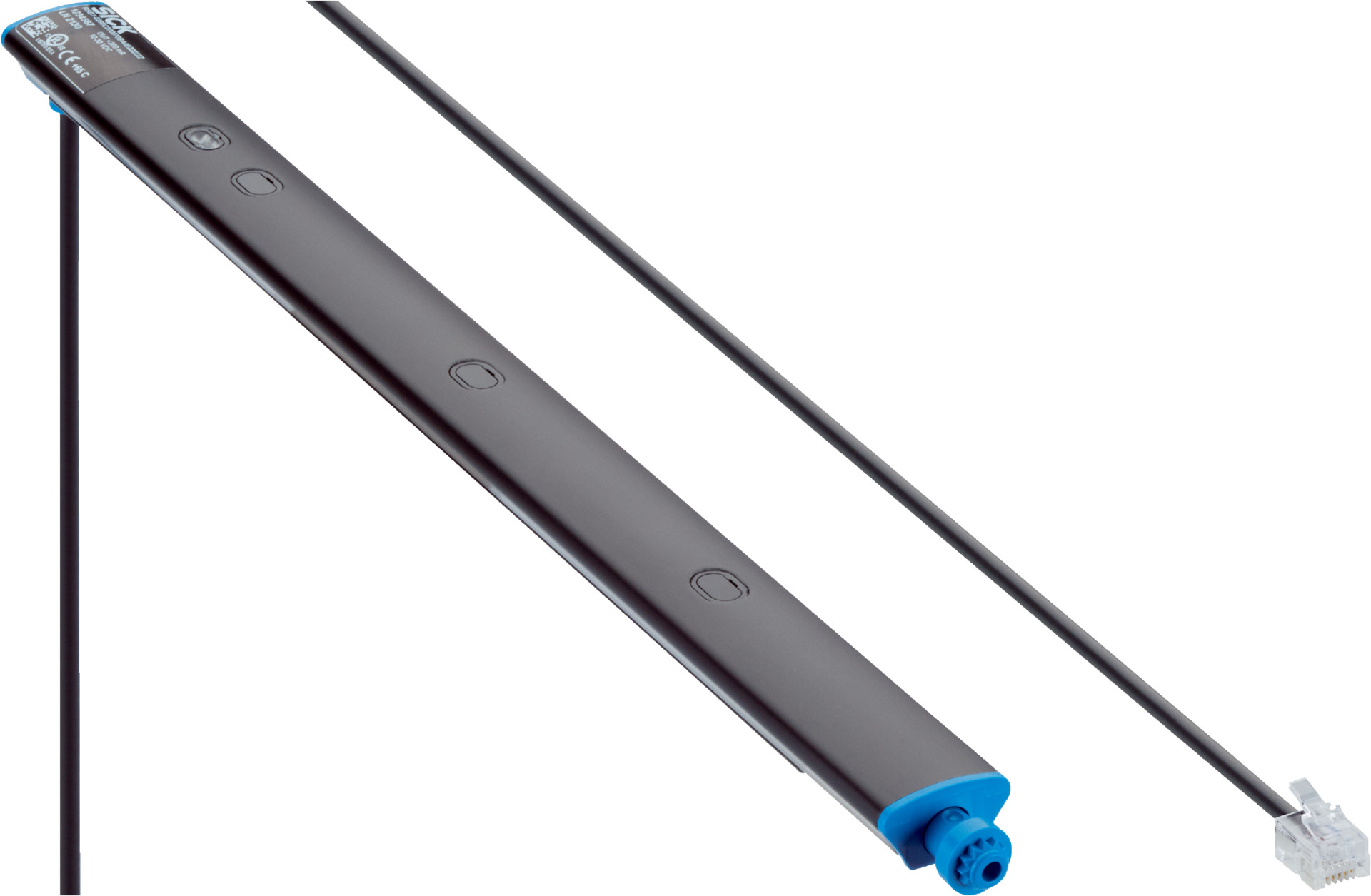

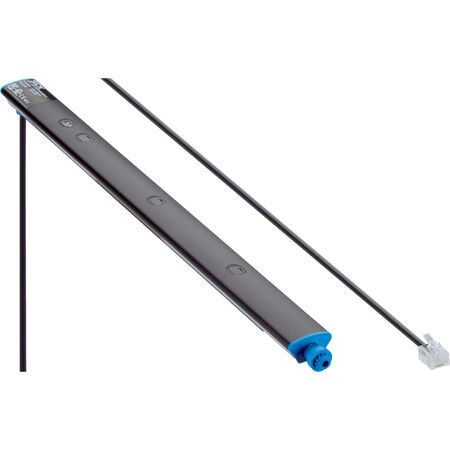

Photoelectric Proximity Sensor | Infrared LED | IP67 Rated | 500 Hz Switching Frequency | by SICK
The photoelectric proximity sensor RSB1-0725D145145PNAGS01ZZZ features an infrared LED light source and a sensing range of 2 mm to 300 mm, making it ideal for detecting flat, perforated, and shiny objects in industrial automation. With a high switching frequency of 500 Hz and a response time of ≤ 1 ms, this sensor ensures quick and reliable performance. Its IP67 rating provides excellent protection against dust and water, ensuring durability in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 17 mA without load at 24 V
- Digital outputs: 2 complementary PNP outputs with light switching mode
- Output current max: ≤ 100 mA
- Response time: ≤ 1 ms
- Switching frequency: 500 Hz
- Protection: Reverse polarity, overcurrent, short-circuit protected
- Enclosure rating: IP67
- Operating temperature: -40 °C to +60 °C
- Material: Anodised aluminum housing, PMMA front screen, PVC cable
- Cable length: 2 m with RJ12 6-pin connector
- Dimensions (H x L x W): 17mm x 725mm x 20mm
- Weight: 0.263 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Sensing range from 2 mm to 300 mm, optimal performance between 2 mm and 45 mm
- Infrared LED light source with 850 nm wavelength
- Point-shaped light spot size 27 mm x 29 mm at 45 mm distance
- Four beams with 145 mm beam separation
- LED indicators for power and object presence
- Type with T-slot for mounting
- High switching frequency of 500 Hz and response time ≤ 1 ms
- Protection class III with reverse polarity, overcurrent, and short-circuit protection
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -40 °C to +60 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Detecting flat objects
- Detecting perforated objects
- Detecting objects with position tolerances
- Detecting uneven, shiny objects
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Long LED service life of 100,000 hours reduces waste and replacement frequency
- Energy-efficient LED technology minimizes power consumption
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK RSB1-0725D145145PNAGS01ZZZ photoelectric proximity sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
