Photoelectric Proximity Sensor | Infrared LED | IP67 Rated | 500 Hz Switching Frequency | by SICK
The Photoelectric Proximity Sensor is designed for precise object detection in industrial automation, featuring an infrared LED light source and a robust IP67-rated aluminum housing. With a sensing range of 2 mm to 300 mm and a high switching frequency of 500 Hz, it ensures reliable performance in various applications, including detecting flat and shiny objects. Ideal for manufacturing processes, this sensor is built to withstand harsh environments with a wide operating temperature range from -40 °C to +60 °C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 38 mA at 24 V DC without load
- Output type: 2 complementary push-pull outputs (PNP/NPN)
- Switching mode: Light/dark switching
- Output current max: ≤ 100 mA
- Protection: Reverse polarity, overcurrent, and short-circuit protected
- Response time: ≤ 1 ms
- Switching frequency: 500 Hz
- Enclosure rating: IP67
- Operating temperature: -40 °C to +60 °C
- Material: Anodised aluminum housing, PMMA front screen, PVC cable
- Cable length: 500 mm with 6-pin RJ12 connector
- Dimensions (H x L x W): 20mm x 17mm x 864mm
- Weight: 0.314 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Sensing range from 2 mm to 300 mm, optimal 2 mm to 45 mm
- Infrared LED light source with 850 nm wavelength
- Point-shaped light spot size 27 mm x 29 mm at 45 mm distance
- 8 beams with 96 mm beam separation
- LED indicators for power and object detection status
- High switching frequency of 500 Hz and response time ≤ 1 ms
- Robust metal aluminum anodised housing with IP67 rating
- Wide ambient operating temperature range from -40 °C to +60 °C
- Cable with 6-pin RJ12 connector, 500 mm length
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for object detection
- Detecting flat, perforated, uneven, and shiny objects
- Position tolerance detection in manufacturing processes
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Long LED service life of 100,000 hours reduces waste and replacement frequency
- Energy-efficient LED technology minimizes power consumption
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now

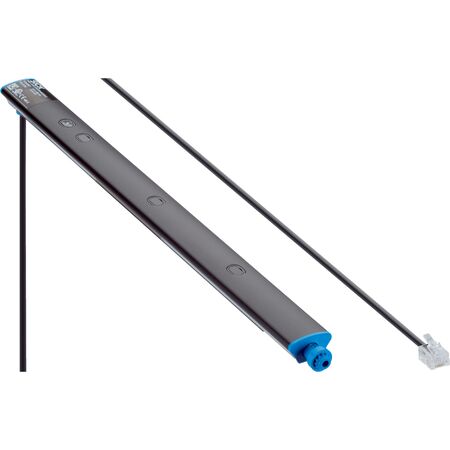

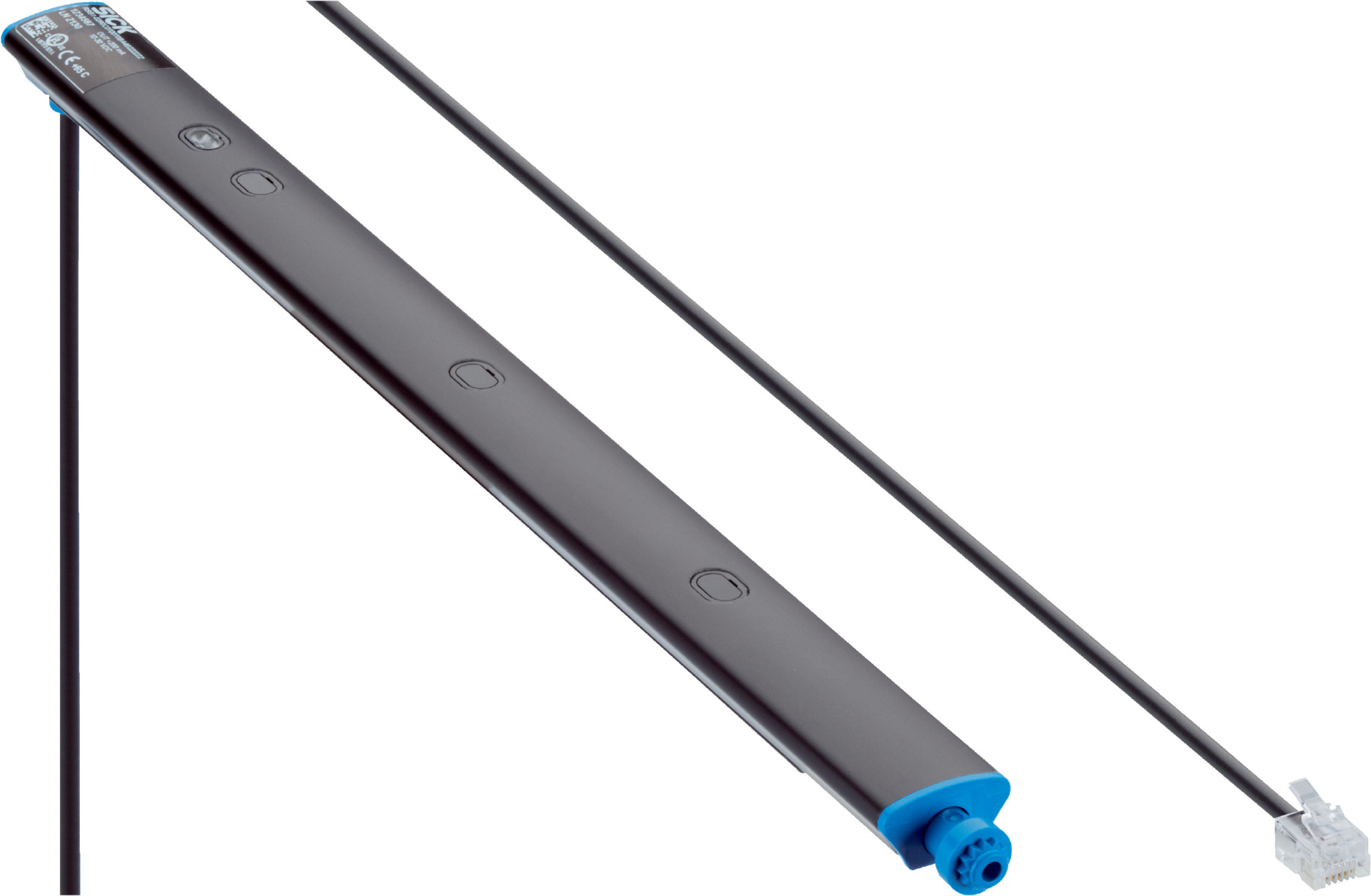

The SICK RSB1-0864H096096ABADZZZP0A photoelectric proximity sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
