Photoelectric Proximity Sensor | Infrared LED | IP67 Rated | 500 Hz Switching Frequency | by SICK
The Photoelectric Proximity Sensor is designed for precise object detection in industrial automation, featuring an infrared LED light source and a sensing range of 2 mm to 300 mm. With a robust IP67 rated housing, it withstands harsh environments while providing a fast response time of ≤ 1 ms and a high switching frequency of 500 Hz. Ideal for detecting various object types, this sensor ensures reliable performance in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 8 mA without load at 24 V
- Output type: PNP digital output, max 100 mA
- Response time: ≤ 1 ms
- Switching frequency: 500 Hz
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -40 °C to +60 °C
- Storage temperature: -40 °C to +75 °C
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 Hz to 55 Hz, amplitude 1 mm
- Cable: 137 mm M8 4-pin connector, 100 mm PVC cable
- Housing material: Anodised aluminum with PMMA front screen
- Dimensions (H x L x W): 20mm x 17mm x 360mm
- Weight: 0.131 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Sensing range from 2 mm to 300 mm, optimal 2 mm to 45 mm
- Infrared LED light source with 850 nm wavelength
- Two beams with 150 mm separation and 120 mm distance to housing edge
- LED indicators for power and object detection status
- Robust IP67 rated housing for harsh environments
- High switching frequency of 500 Hz and fast response time ≤ 1 ms
- Reverse polarity, overcurrent, and short-circuit protected outputs
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for object detection
- Detecting flat, perforated, uneven, and shiny objects
- Position tolerance detection in manufacturing processes
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Long LED service life of 100,000 hours reduces waste and replacement frequency
- Energy-efficient LED technology minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now

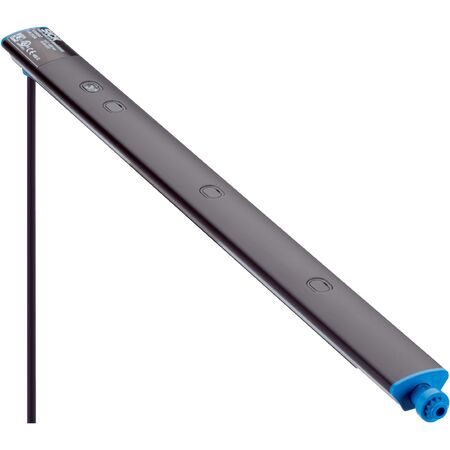

The SICK RSB1-0360B150120FZ0BS06ZZZ photoelectric proximity sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
