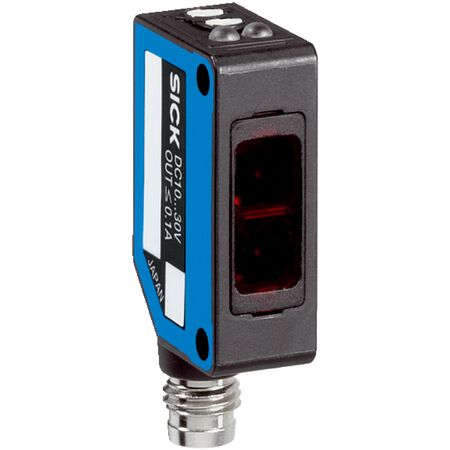

Photoelectric Proximity Sensor WT100L-E1141 | IP65 Rated | 2000 Hz Switching Frequency | Laser Class 1 | by SICK
The WT100L-E1141 Photoelectric Proximity Sensor is designed for precise object detection in industrial automation. With a sensing range of up to 450 mm and a high switching frequency of 2000 Hz, it excels in detecting small and fast-moving objects. Its IP65 rated enclosure ensures durability against dust and water, making it ideal for various manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: NPN
- Switching mode: Light/dark switching selectable
- Response time: < 0.25 ms
- Switching frequency: 2000 Hz
- Connection: 3-wire cable, 2 m length, PVC insulation
- Housing material: Plastic (ABS/PC/POM)
- Optics material: Plastic (PMMA)
- Enclosure rating: IP65
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -40 °C to +70 °C
- Weight: 50 g
- Laser safety: IEC 60825-1 certified
- Dimensions (H x L x W): 31mm x 20mm x 11mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Visible red laser light source with 650 nm wavelength
- Sensing range up to 400 mm, max 450 mm
- Laser class 1 safety
- Potentiometer adjustment with 270° rotation
- Selectable light/dark switching mode
- High switching frequency of 2000 Hz
- IP65 rated enclosure for dust and water protection
- Supplied with stainless steel mounting bracket
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with photoelectric sensor setup and electrical safety standards.
Applications
- Detecting small objects
- Detection of objects moving at high speeds
- Industrial automation and manufacturing processes
- Object presence detection in conveyor systems
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption with 30 mA current draw
- Durable housing materials extend product life and reduce waste
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK WT100L-E1141 Photoelectric Proximity Sensor is available for immediate purchase. Ideal for industrial automation and object detection applications.
