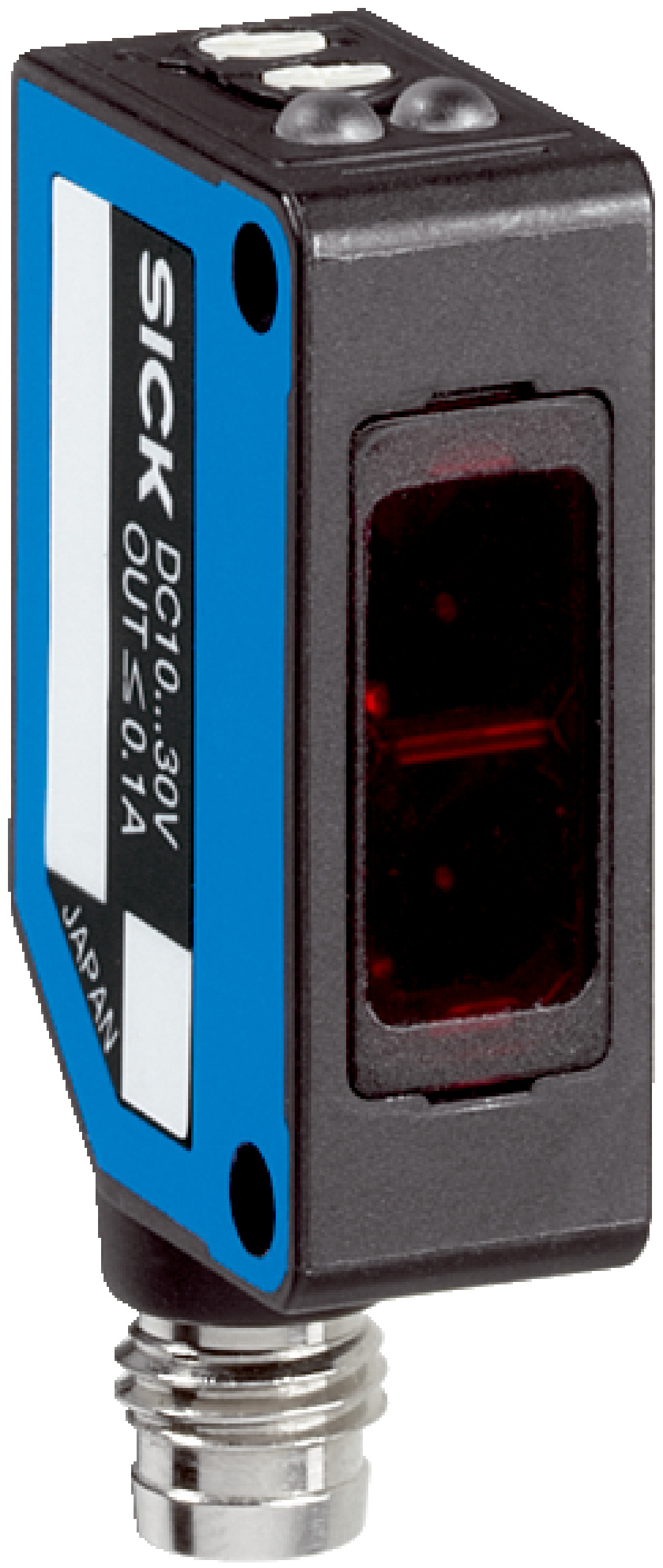

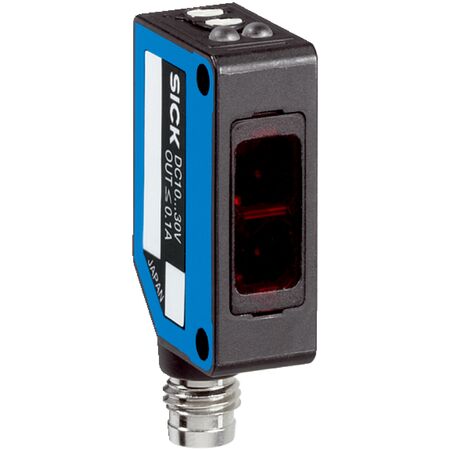

Photoelectric Proximity Sensor WT100L-E2141 | IP65 Rated | 2000 Hz Switching Frequency | Laser Class 1 | by SICK
The WT100L-E2141 Photoelectric Proximity Sensor is designed for precise object detection in industrial automation, featuring a sensing range of up to 450 mm and a high switching frequency of 2000 Hz. With an IP65 rated enclosure for dust and water resistance, this sensor is perfect for detecting small objects and high-speed movements in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC with ±10% ripple
- Current consumption: 30 mA
- Switching output: NPN transistor
- Switching mode: Light/dark switching selectable
- Signal voltage NPN HIGH/LOW: Approx. VS / < 1.8 V
- Output current max: ≤ 100 mA
- Response time: < 0.25 ms
- Switching frequency: 2000 Hz
- Connection type: M8, 3-pin connector
- Circuit protection: Types A, B, D
- Housing material: Plastic (ABS/PC/POM)
- Optics material: Plastic (PMMA)
- Enclosure rating: IP65
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -40 °C to +70 °C
- Weight: 10 g
- Laser class: 1
- Dimensions (H x L x W): 31mm x 20mm x 11mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Visible red laser light source with 650 nm wavelength
- Sensing range up to 400 mm, max 450 mm
- Laser class 1 for safety
- Potentiometer adjustment with 270° rotation
- Light/dark switching mode selectable via rotary switch
- High switching frequency of 2000 Hz
- IP65 rated enclosure for dust and water resistance
- Compact rectangular housing design
- Includes stainless steel mounting bracket
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with photoelectric sensor setup and electrical safety standards.
Applications
- Detection of small objects
- Detection of objects moving at high speeds
- Industrial automation and manufacturing processes
- Object presence detection in conveyor systems
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption with 10 V DC to 30 V DC supply voltage
- Durable housing materials extend product life and reduce waste
- IP65 rating protects against dust and water, reducing failure rates
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WT100L-E2141 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
