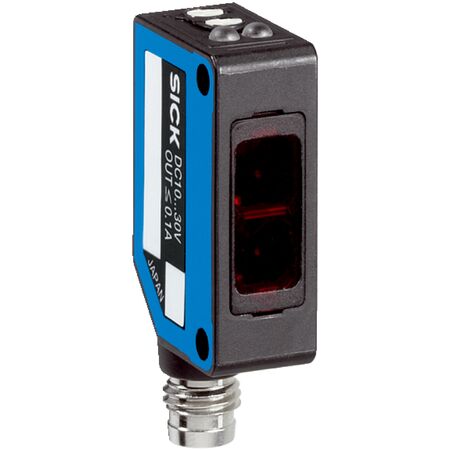

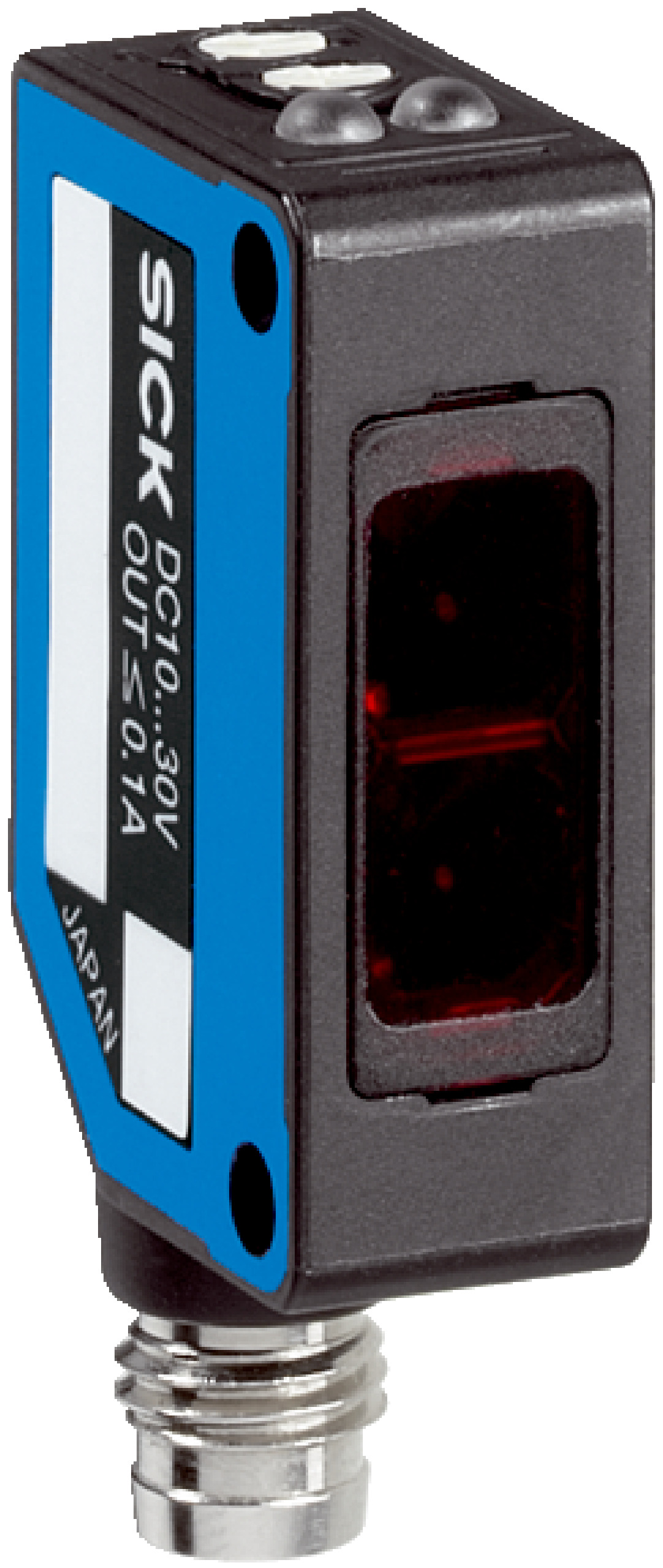

Photoelectric Proximity Sensor WT100L-F2141 | IP65 Rated | 400mm Sensing Range | Fast Response Time | by SICK
The WT100L-F2141 Photoelectric Proximity Sensor is designed for high-speed object detection in industrial automation. With a sensing range of up to 400 mm and a fast response time of under 0.25 ms, it ensures precise positioning in manufacturing lines and robotics. Its IP65 rated enclosure provides dust and water resistance, making it ideal for various applications while maintaining low power consumption.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC with ±10% ripple
- Current consumption: 30 mA
- Switching output: PNP with light/dark switching selectable
- Output current max: ≤ 100 mA
- Response time: < 0.25 ms
- Switching frequency: 2,000 Hz
- Connection type: M8, 3-pin connector
- Housing material: Plastic (ABS/PC/POM)
- Optics material: Plastic (PMMA)
- Enclosure rating: IP65
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -40 °C to +70 °C
- Laser wavelength: 650 nm
- Laser class: 1
- Dimensions (H x L x W): 31mm x 20mm x 11mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Rectangular housing design with visible red laser light source
- Sensing range up to 400 mm with a laser class 1 safety rating
- Adjustable potentiometer with 270° rotation for sensitivity tuning
- High switching frequency of 2,000 Hz and fast response time under 0.25 ms
- IP65 rated enclosure for dust and water resistance
- Includes stainless steel mounting bracket for easy installation
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure correct sensor alignment and electrical connection.
Applications
- Industrial automation for detecting small objects
- High-speed object detection in manufacturing lines
- Position sensing in robotics and conveyor systems
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption with 30 mA current draw
- Durable ABS/PC/POM plastic housing extends product life reducing waste
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK WT100L-F2141 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
