Photoelectric Proximity Sensor | IP67 Rated | 1000 Hz Switching Frequency | 1 mm to 1100 mm Sensing Range | by SICK

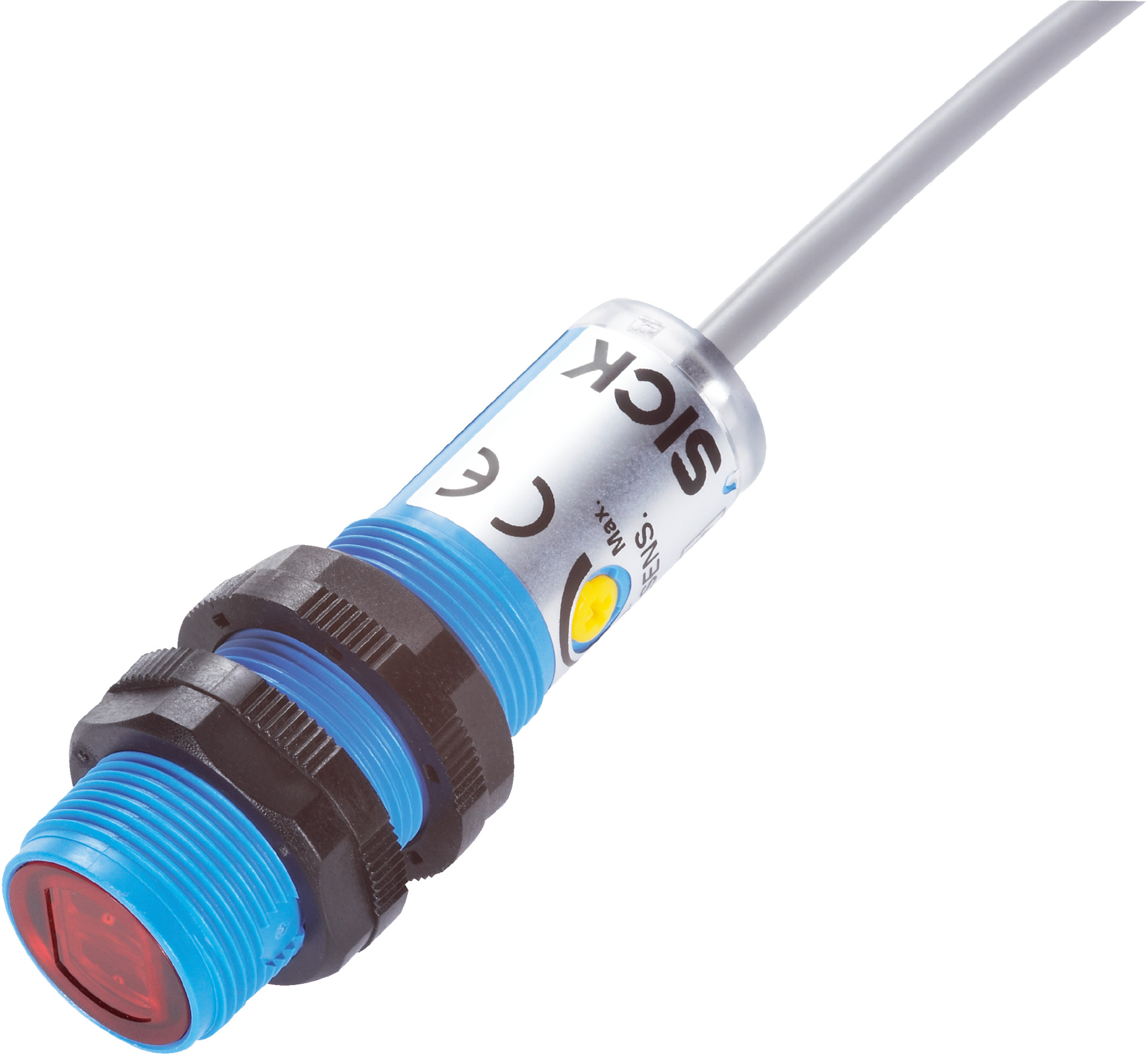

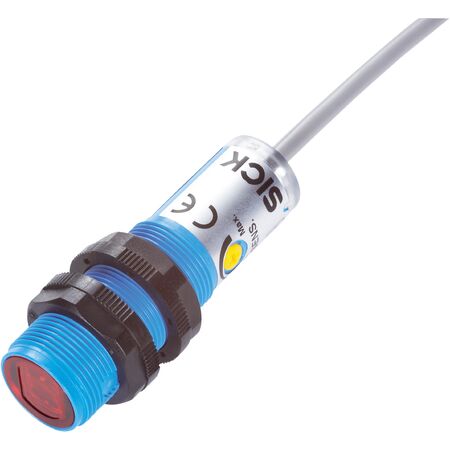

The Photoelectric Proximity Sensor VTE180-2P41187 is designed for industrial automation, featuring a sensing range from 1 mm to 1100 mm and a high switching frequency of 1000 Hz. With an IP67 enclosure rating and robust plastic housing, it ensures reliable performance in harsh environments, making it ideal for manufacturing process control and safety monitoring in machinery.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP
- Switching mode: Light/dark switching selectable
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1000 Hz
- Connection type: 4-wire cable, 2 m length
- Cable diameter: Ø 3.8 mm, PVC material
- Protection class: III
- Enclosure rating: IP67
- Housing material: Plastic (PBT/PC)
- Optics material: Plastic (PMMA)
- Ambient operating temperature: -25 °C to +55 °C
- Ambient storage temperature: -40 °C to +70 °C
- Dimensions (H x L x W): 18mm x 62.5mm x 18mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Visible red light LED with wavelength of 645 nm
- Sensing range from 1 mm up to 1100 mm
- Axial optical axis with approx. 1.2° focus and angle of dispersion
- Selectable light/dark switching mode via control cable
- High switching frequency of 1000 Hz and fast response time ≤ 0.5 ms
- Robust plastic housing (PBT/PC) with IP67 enclosure rating
- Operating temperature range from -25 °C to +55 °C
- Includes fastening nuts for easy installation
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK VTE180-2P41187 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
