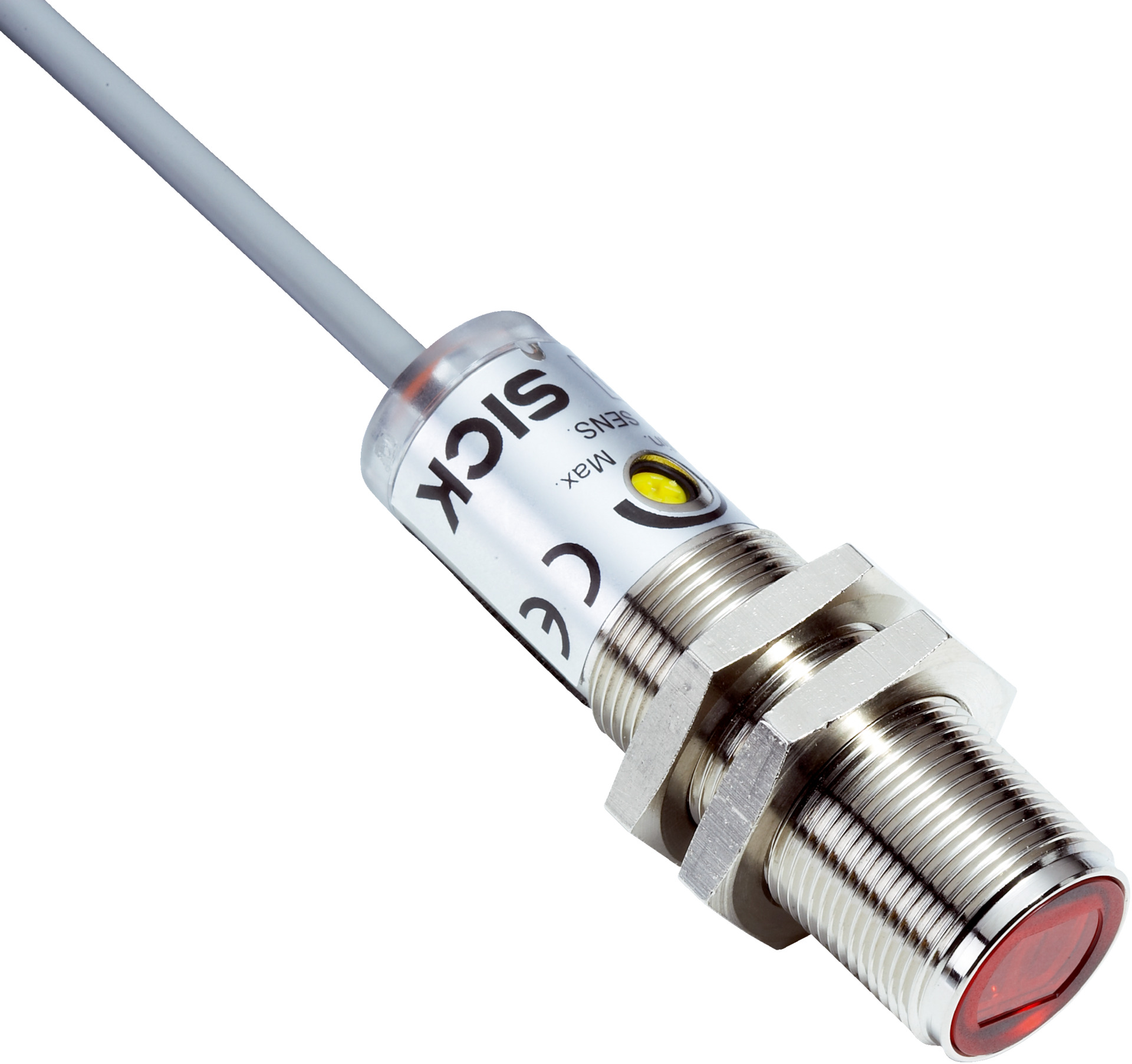

Photoelectric Proximity Sensor SICK VTE180-2N41182 | IP67 Rated | 1000 Hz Switching Frequency | Fast Response Time | by SICK
The SICK VTE180-2N41182 Photoelectric Proximity Sensor is designed for industrial automation, featuring a sensing range of 1 mm to 1100 mm and a high switching frequency of 1000 Hz. With an IP67 rated enclosure for dust and water protection, this sensor is perfect for manufacturing process control and material handling applications, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: NPN transistor
- Switching mode: Light/dark selectable
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1000 Hz
- Connection: 4-wire cable, 2 m length, PVC material
- Protection class: III
- Enclosure rating: IP67
- Housing material: Nickel-plated brass and polycarbonate
- Optics material: PMMA plastic
- Operating temperature: -25°C to +55°C
- Storage temperature: -40°C to +70°C
- Weight: 95 g
- Dimensions (H x L x W): 18mm x 62.5mm x 18mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Visible red light LED with wavelength of 645 nm
- Sensing range from 1 mm up to 1100 mm
- Axial optical axis with approx. 1.2° focus and angle of dispersion
- Selectable light/dark switching mode via control cable
- High switching frequency of 1000 Hz and fast response time ≤ 0.5 ms
- Robust metal housing with nickel-plated brass and PC
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -25°C to +55°C
- Includes fastening nuts for easy installation
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Material handling and packaging systems
- Safety and monitoring in production lines
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable construction extends product lifespan, reducing waste
- Complies with China-RoHS for restricted hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK VTE180-2N41182 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
