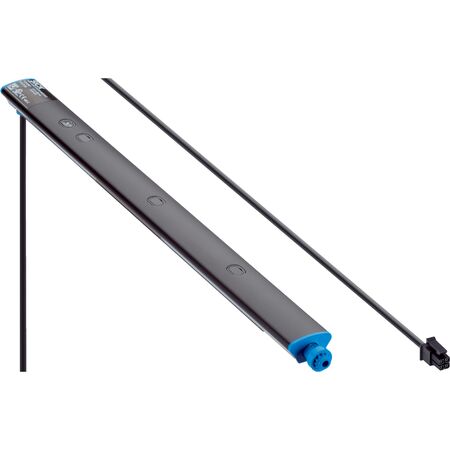

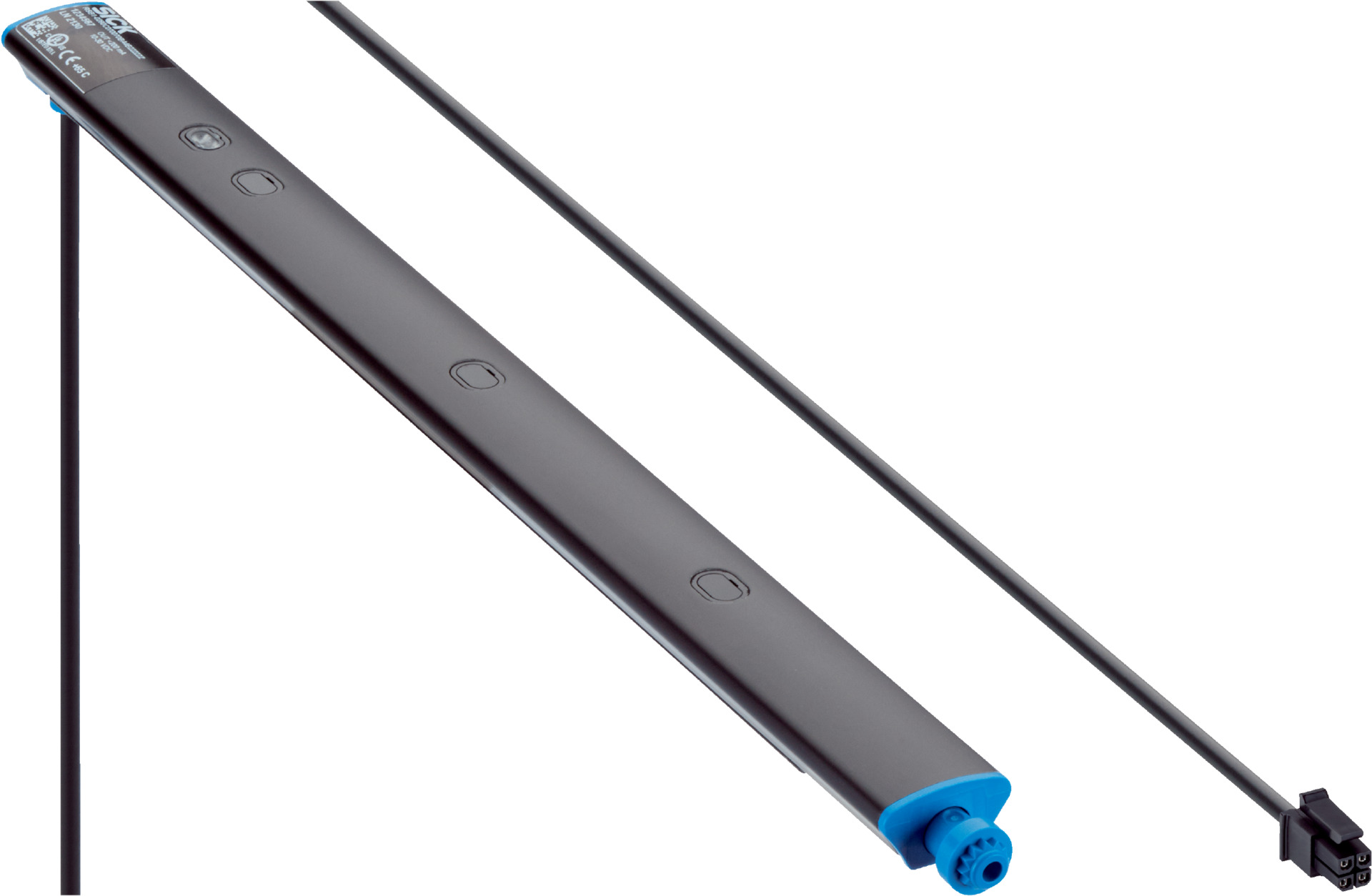

Photoelectric Proximity Sensor RSB1-0856G118086PZEBZZZZZZ | IP67 Rated | 2mm to 300mm Sensing Range | 1ms Response Time | by SICK
The Photoelectric Proximity Sensor RSB1-0856G118086PZEBZZZZZZ is designed for precise object detection in industrial automation. With a sensing range of 2mm to 300mm and a rapid response time of ≤ 1 ms, it excels in detecting flat, perforated, and shiny objects. Its robust IP67 enclosure ensures durability in harsh environments, making it ideal for various applications where reliability is crucial.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 32 mA without load at 24 V
- Digital output: 1 PNP light switching output, max 100 mA
- Response time: ≤ 1 ms
- Switching frequency: 500 Hz
- LED risk group: Free group
- Enclosure rating: IP67
- Operating temperature: -40 °C to +60 °C
- Storage temperature: -40 °C to +75 °C
- Material: Anodised aluminum housing, PMMA front screen, PVC cable
- Cable length: 150 mm with MOLEX 4-pin connector
- Dimensions (H x L x W): 17mm x 856mm x 20mm
- Weight: 0.311 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Sensing range from 2 mm to 300 mm, optimal performance between 2 mm and 45 mm
- Infrared LED light source with 850 nm wavelength
- Point-shaped light spot size 27 mm x 29 mm at 45 mm distance
- 7 beams with 118 mm beam separation
- LED green operating indicator and LED yellow object presence indicator
- Response time ≤ 1 ms and switching frequency 500 Hz
- Protection class III with reverse polarity, overcurrent, and short-circuit protection
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -40 °C to +60 °C
- Shock resistance 30 g and vibration resistance 10 Hz to 55 Hz
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper connection and operation.
Applications
- Detecting flat objects
- Detecting perforated objects
- Detecting objects with position tolerances
- Detecting uneven, shiny objects
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Long LED service life of 100,000 hours reduces waste and replacement frequency
- Energy-efficient LED technology minimizes power consumption
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK RSB1-0856G118086PZEBZZZZZZ Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
