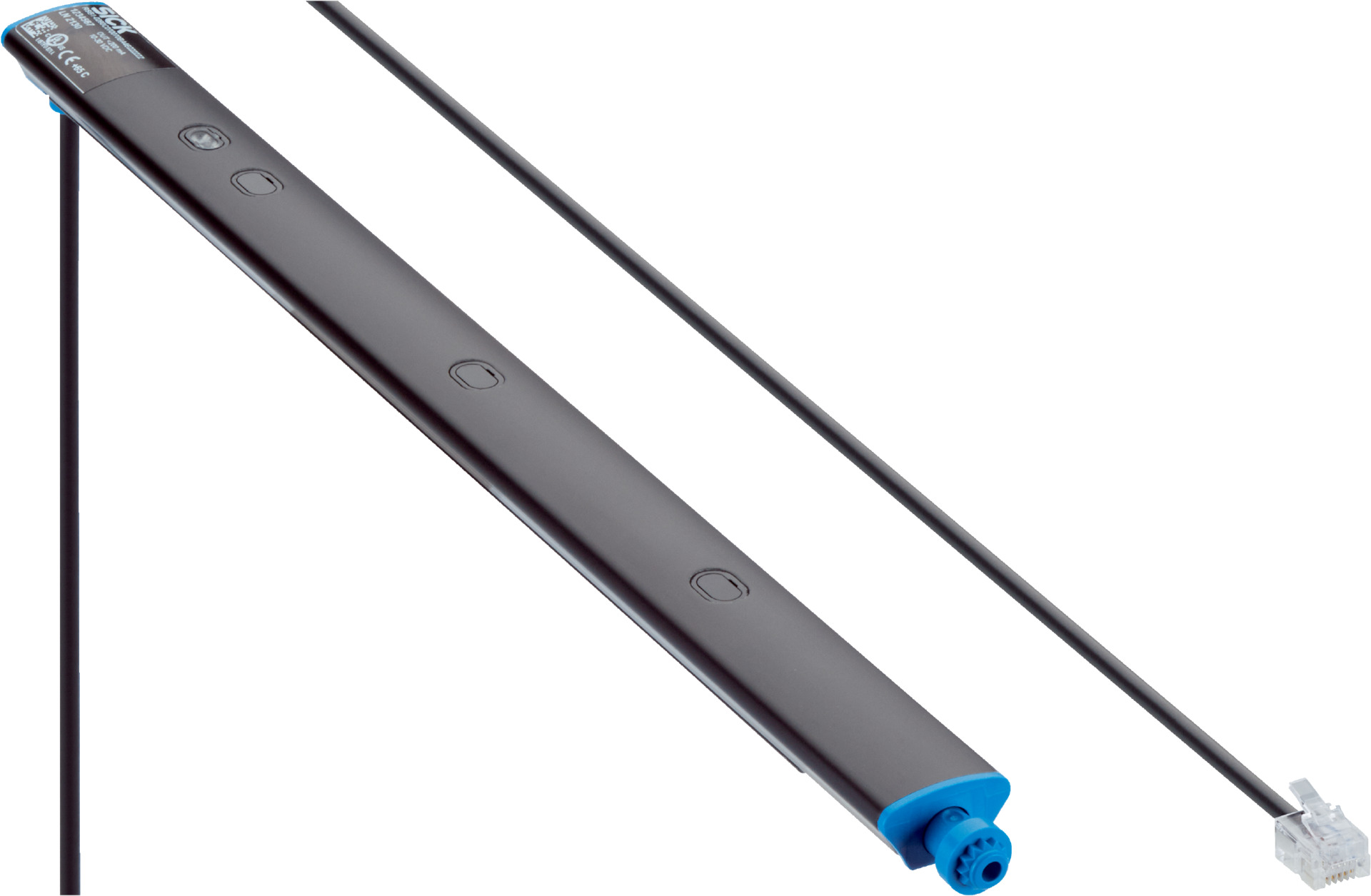

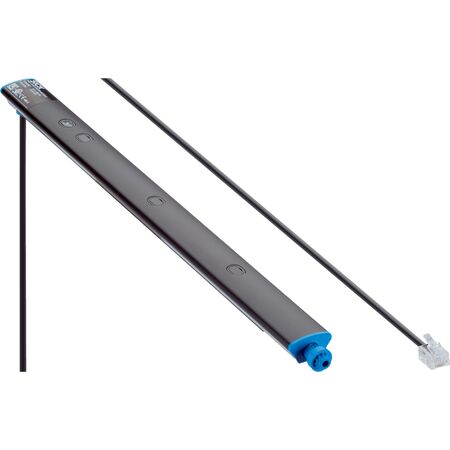

Photoelectric Proximity Sensor RSB1-0609C152153PNAGS01P0E | IP67 Rated | 500 Hz Switching Frequency | Infrared LED | by SICK
The Photoelectric Proximity Sensor RSB1-0609C152153PNAGS01P0E is designed for precise object detection in industrial automation. With a sensing range of 2 mm to 300 mm and a high switching frequency of 500 Hz, it ensures rapid response times of ≤ 1 ms. Built for durability with an IP67 rating, this sensor is perfect for detecting flat, perforated, and shiny objects in various applications, making it an essential tool for professionals in the field.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 15 mA without load at 24 V
- Digital outputs: 2 complementary PNP outputs, light switching mode
- Response time: ≤ 1 ms
- Switching frequency: 500 Hz
- Protection class: III
- Enclosure rating: IP67
- Operating temperature range: -40 °C to +60 °C
- Storage temperature range: -40 °C to +75 °C
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 Hz to 55 Hz, amplitude 1 mm
- Cable connection: 2 m cable with 6-pin RJ12 connector
- Housing material: Anodised aluminum
- Front screen material: PMMA plastic
- Dimensions (H x L x W): 17mm x 609mm x 20mm
- Weight: 0.221 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Sensing range from 2 mm to 300 mm, optimal performance between 2 mm and 45 mm
- Infrared LED light source with 850 nm wavelength
- Point-shaped light spot size 27 mm x 29 mm at 45 mm distance
- Three beams with 152 mm separation
- LED indicators for power and object detection status
- Type with T-slot for mounting
- High switching frequency of 500 Hz and response time ≤ 1 ms
- Protection class III with reverse polarity, overcurrent, and short-circuit protection
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and safety compliance.
Applications
- Detecting flat objects
- Detecting perforated objects
- Detecting objects with position tolerances
- Detecting uneven, shiny objects
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Long LED service life of 100,000 hours reduces waste and replacement frequency
- Energy-efficient LED technology minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK RSB1-0609C152153PNAGS01P0E Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
