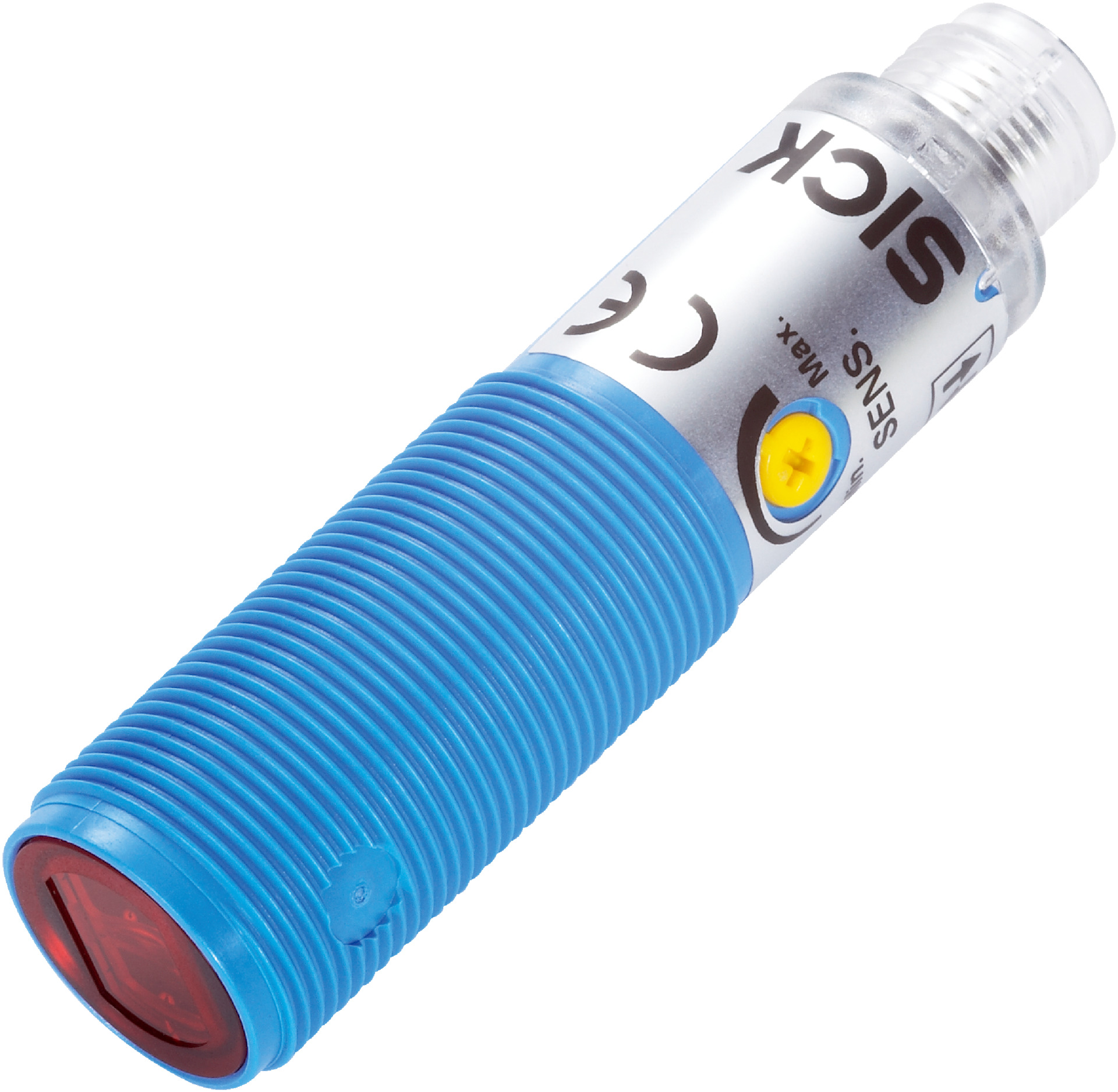

Photoelectric Proximity Sensor | IP67 Rated | Fast Response Time | Selectable Light/Dark Switching | by SICK
The Photoelectric Proximity Sensor is designed for industrial automation, featuring a robust IP67-rated housing and a fast response time of ≤ 0.5 ms. With a sensing range of 1 mm to 1100 mm and selectable light/dark switching mode, it's perfect for object detection and position sensing in manufacturing lines, ensuring safety and efficiency in your operations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP
- Switching mode: Light/dark switching selectable
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1000 Hz
- Connection type: Male M12, 4-pin connector
- Protection class: III
- Housing material: Plastic (PBT/PC)
- Optics material: Plastic (PMMA)
- Enclosure rating: IP67
- Ambient operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- MTTFD: 1982 years
- Dimensions (H x L x W): 18mm x 70mm x 18mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Visible red light LED with wavelength of 645 nm
- Sensing range from 1 mm up to 1100 mm
- Axial optical axis with approx. 1.2° focus and angle of dispersion
- Potentiometer adjustment with 270° sensing range control
- Robust plastic housing (PBT/PC) with IP67 enclosure rating
- Fast response time ≤ 0.5 ms and switching frequency up to 1000 Hz
- Selectable light/dark switching mode via control cable
- Male M12 4-pin connector for connection
- Wide ambient operating temperature range from -25 °C to +55 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with photoelectric sensor wiring and safety standards to ensure proper operation and compliance.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Safety and monitoring in machinery
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable IP67 housing reduces waste by extending product life
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK VTE180-2P42487 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
