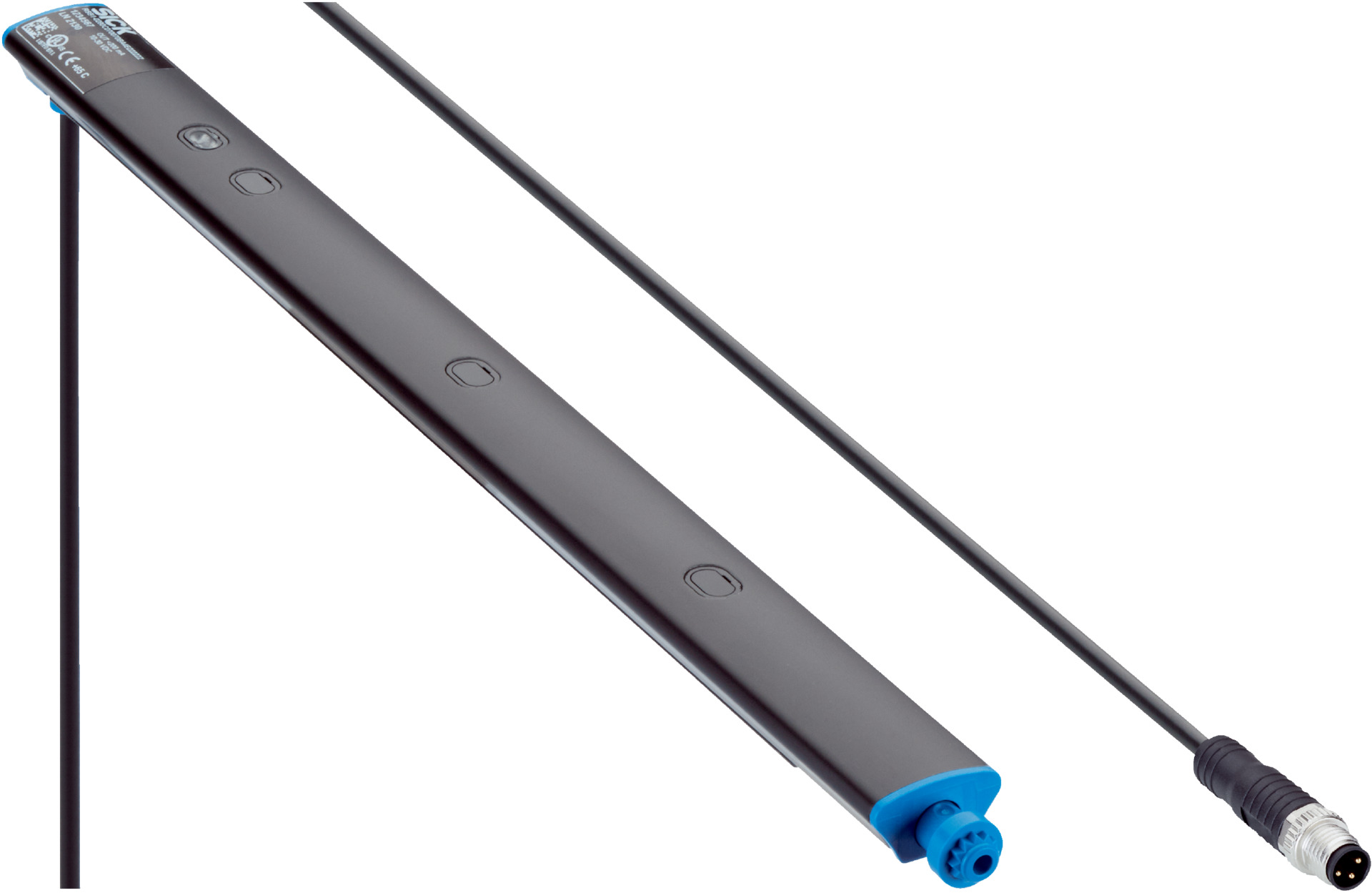

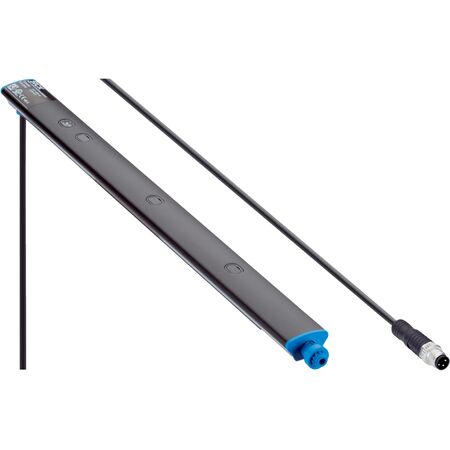

Photoelectric Proximity Sensor SICK RSB1-0910H101050AZ2DZZZP0A | IP67 Rated | Infrared LED | 2mm to 300mm Sensing Range | by SICK
The Photoelectric Proximity Sensor is designed for precise object detection, featuring a sensing range of 2mm to 300mm and an IP67 rating for dust and water protection. With a rapid response time of ≤ 1 ms and a robust anodised aluminum housing, this sensor is perfect for industrial automation applications, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 38 mA without load at 24 V
- Protection class: III
- Digital output: 1 push-pull PNP/NPN, max 100 mA
- Response time: ≤ 1 ms
- Switching frequency: 500 Hz
- Enclosure rating: IP67
- Operating temperature: -40 °C to +60 °C
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 Hz to 55 Hz, amplitude 1 mm
- Cable with M8 3-pin connector, 500 mm length
- Housing material: anodised aluminum
- Front screen material: PMMA
- Dimensions (H x L x W): 17mm x 910mm x 20mm
- Weight: 0.33 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Sensing range from 2 mm to 300 mm, optimal performance between 2 mm and 45 mm
- Infrared LED light source with 850 nm wavelength
- Point-shaped light spot size 27 mm x 29 mm at 45 mm distance
- 8 beams with 101 mm beam separation
- LED indicators: green for power on, yellow for object presence
- Response time ≤ 1 ms and switching frequency up to 500 Hz
- Push-pull digital output (PNP/NPN) with reverse polarity, overcurrent, and short-circuit protection
- Robust metal aluminum anodised housing with PMMA front screen
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -40 °C to +60 °C
- Shock resistance 30 g and vibration resistance 10 Hz to 55 Hz
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor equipment to ensure proper setup and safety compliance.
Applications
- Detecting flat objects
- Detecting perforated objects
- Detecting objects with position tolerances
- Detecting uneven, shiny objects
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Long LED service life of 100,000 hours reduces waste and replacement frequency
- Energy-efficient LED light source minimizes power consumption
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK RSB1-0910H101050AZ2DZZZP0A Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
