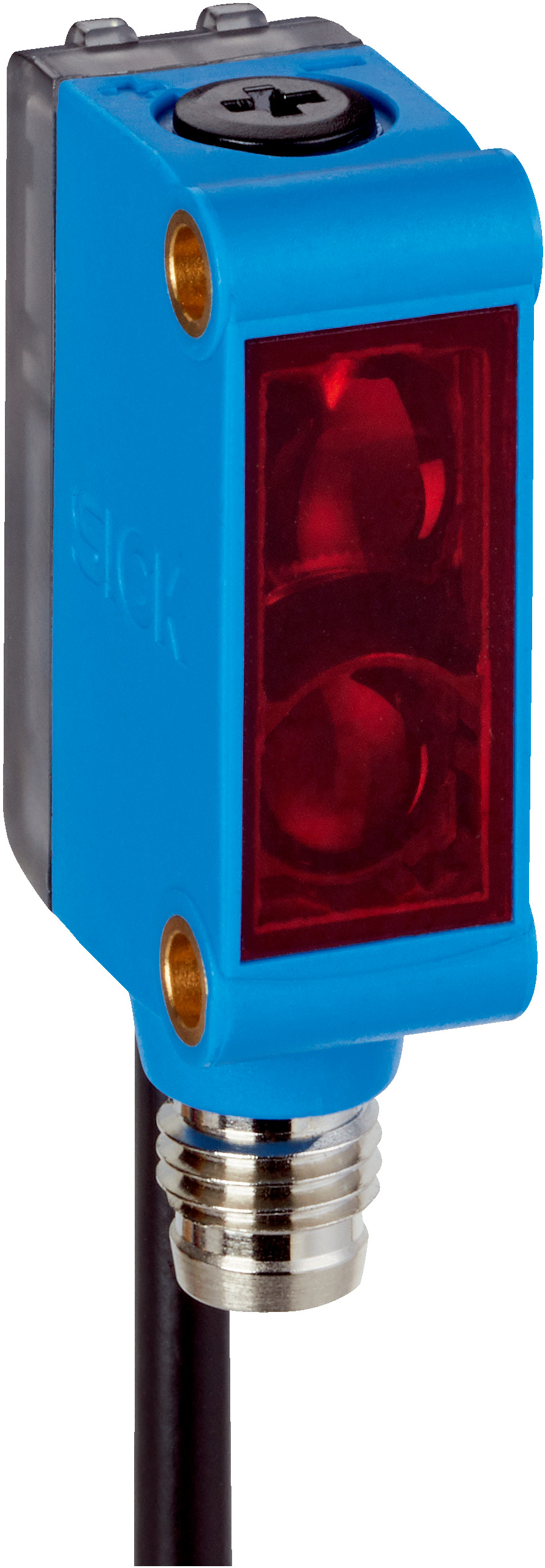

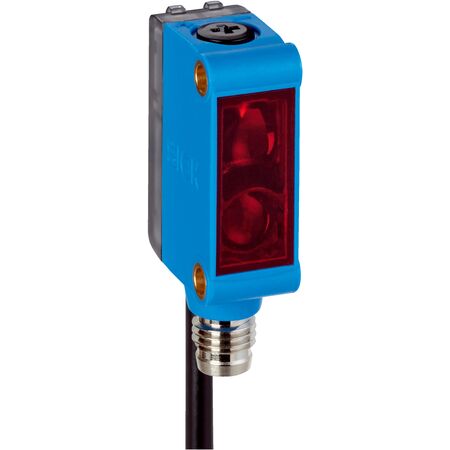

Photoelectric Proximity Sensor GTB6-CC011K00 | Light Grid System | IP65 & IP67 Rated | by SICK
The Photoelectric Proximity Sensor GTB6-CC011K00 features advanced light grid system technology and a PinPoint LED visible red light source with a 650 nm wavelength. Ideal for industrial automation and safety light grid applications, this sensor is built for durability with a compact ABS housing and high protection ratings of IP65 and IP67, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: Photoelectric proximity sensor with light grid system
- Light source: PinPoint LED, visible red light
- Light spot size at 100 mm distance: Ø 6 mm
- Wavelength: 650 nm
- Supply voltage: 12 V via FlexChain host
- Adjustment: Potentiometer for sensitivity
- Connection type: Male M8 4-pin connector and cable with female M8 4-pin connector (0.15 m)
- Housing material: Plastic (ABS)
- Enclosure rating: IP65, IP67
- Protection class: III
- Operating range: 0.25 m
- Shock resistance: Single shocks 30 g, 11 ms; continuous shocks 25 g, 6 ms
- Vibration resistance: Sinusoidal oscillation 20-2000 Hz, 10 g
- EMC: Compliant with EN 61000-6-2 and EN 61000-6-3
- Ambient light immunity: Direct 9,000 lx
- Operating temperature: -25°C to +55°C
- Storage temperature: -25°C to +70°C
- Dimensions (H x L x W): 31.5mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with light grid system technology
- PinPoint LED visible red light source with 650 nm wavelength
- Compact housing made of durable ABS plastic
- High protection rating with IP65 and IP67 enclosure
- Adjustable sensitivity via potentiometer
- Robust against shocks and vibrations
- Wide ambient operating temperature range from -25°C to +55°C
- EMC compliant with EN 61000-6-2 and EN 61000-6-3 standards
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with photoelectric sensor systems and FlexChain integration to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection and positioning
- Safety light grid systems in manufacturing environments
- Integration in FlexChain host systems for enhanced sensor networks
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption via 12 V supply through FlexChain host
- Durable ABS housing reduces need for frequent replacements
- High resistance to environmental factors extends product lifespan
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK GTB6-CC011K00 FlexChain Guest Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety light grid applications.
