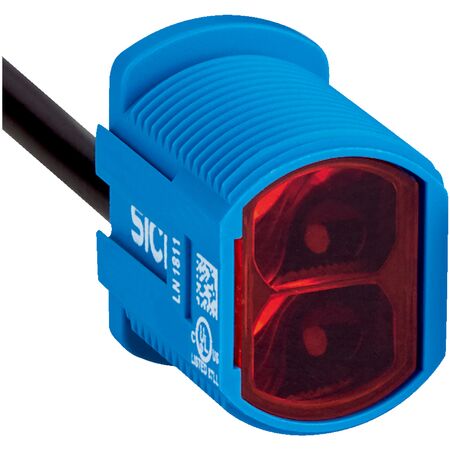

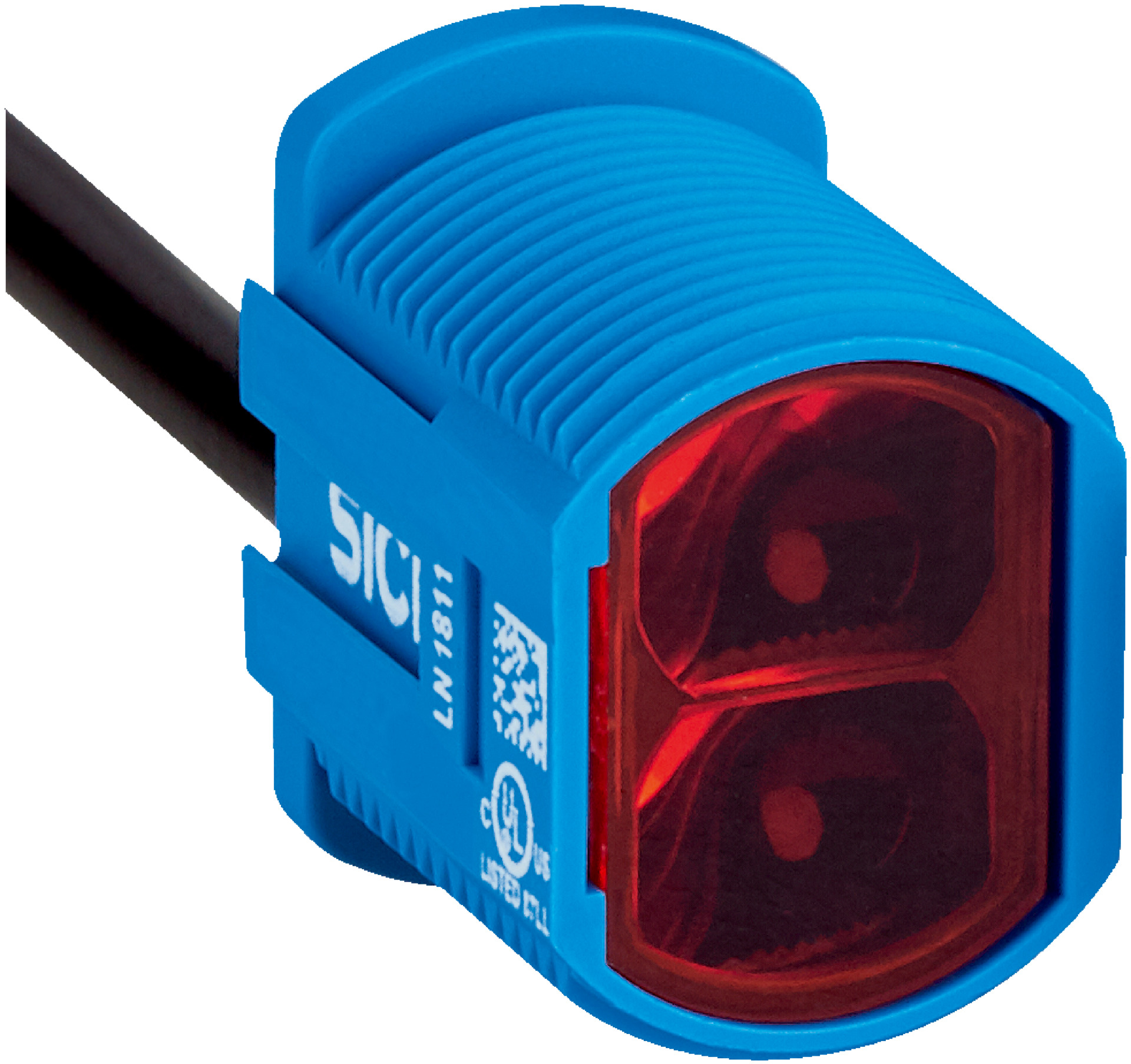

Photoelectric Proximity Sensor M18 | 700mm Sensing Range | IP67 Rated | by SICK
The Photoelectric Proximity Sensor M18 is designed for precise object detection in industrial automation, featuring a sensing range of up to 700 mm and a visible red PinPoint LED light source. With a high switching frequency of 500 kHz and a rapid response time of ≤ 1 ms, this sensor is perfect for manufacturing process control and material handling applications, ensuring reliable performance in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor, energetic
- Sensing range max.: 0 mm to 700 mm
- Light source: PinPoint LED, visible red light at 625 nm wavelength
- Switching output: Push-pull PNP/NPN with light and dark switching
- Supply voltage: 10 V DC to 30 V DC with ripple < 10%
- Current consumption: ≤ 15 mA
- Output current max: 100 mA
- Response time: ≤ 1 ms
- Switching frequency: 500 kHz
- Connection: Cable open end, 4-wire, 2 m, PVC material
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: –40 °C to +55 °C
- Housing material: Plastic ABS, Optics material: Plastic PMMA
- Dimensions (H x L x W): 20.5mm x 23mm x 14.4mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Hybrid housing design with M18 thread diameter
- Sensing range up to 700 mm with visible red PinPoint LED light source
- Push-pull PNP/NPN switching output with light and dark switching modes
- High switching frequency of 500 kHz and response time ≤ 1 ms
- Cable open end, 4-wire, 2 m length with plastic PVC material
- Protection class III and IP67 rated enclosure for harsh environments
- Wide ambient operating temperature range from –40 °C to +55 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper wiring and mounting according to safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Material handling and packaging systems
- Robotics and conveyor systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable IP67 rated housing reduces waste from frequent replacements
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK ZTE18-9AB1G2 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
