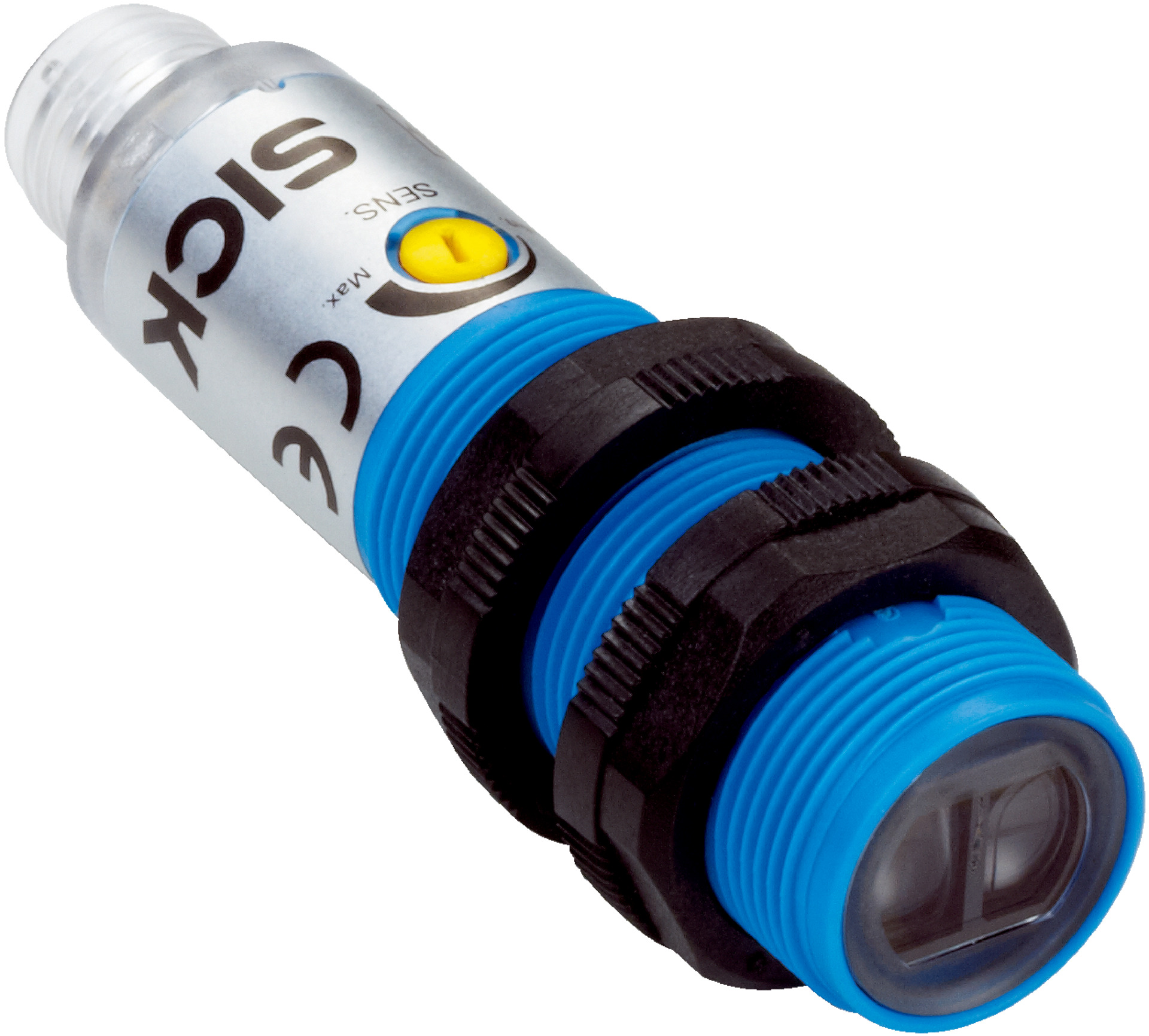

Photoelectric Proximity Sensor M18 | Background Suppression | IP67 Rated | Fast Response Time | by SICK
The Photoelectric Proximity Sensor M18 is designed for precise object detection in industrial automation, featuring background suppression and a sensing range of 30 mm to 200 mm. With a fast response time of ≤ 1 ms and an IP67 rated enclosure, this sensor is perfect for manufacturing process control and material handling applications, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 30 mm to 200 mm (max 350 mm)
- Light source: Visible red LED, 632 nm wavelength
- Focus angle: Approx. 2.8°
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 35 mA
- Switching output: PNP, max output current ≤ 100 mA
- Switching mode: Light/dark selectable via control cable
- Response time: ≤ 1 ms
- Switching frequency: 500 Hz
- Connection: Male M12, 4-pin connector
- Protection class: III
- Enclosure rating: IP67
- Housing material: Plastic (PBT/PC)
- Optics material: Plastic (PMMA)
- Operating temperature: -25°C to +55°C
- Storage temperature: -40°C to +70°C
- Dimensions (H x L x W): 18mm x 50mm x 18mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Visible red light LED with wavelength of 632 nm
- Sensing range from 30 mm to 200 mm, max up to 350 mm
- Cylindrical housing design with M18 x 1 thread diameter
- Potentiometer adjustment with 4 turns for sensing range
- IP67 rated enclosure for dust and water protection
- Fast response time of ≤ 1 ms and switching frequency of 500 Hz
- Selectable light/dark switching mode via control cable
- Male connector M12, 4-pin connection type
- Robust plastic housing (PBT/PC) and optics (PMMA)
- Wide ambient operating temperature range from -25°C to +55°C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper sensor alignment and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Material handling and packaging systems
- Safety and monitoring in machinery
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now

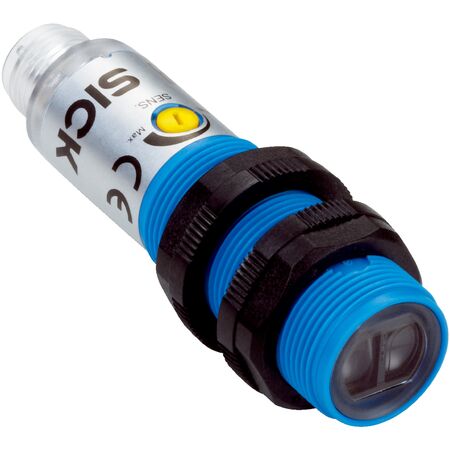

The SICK VTB180-2P42417 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
