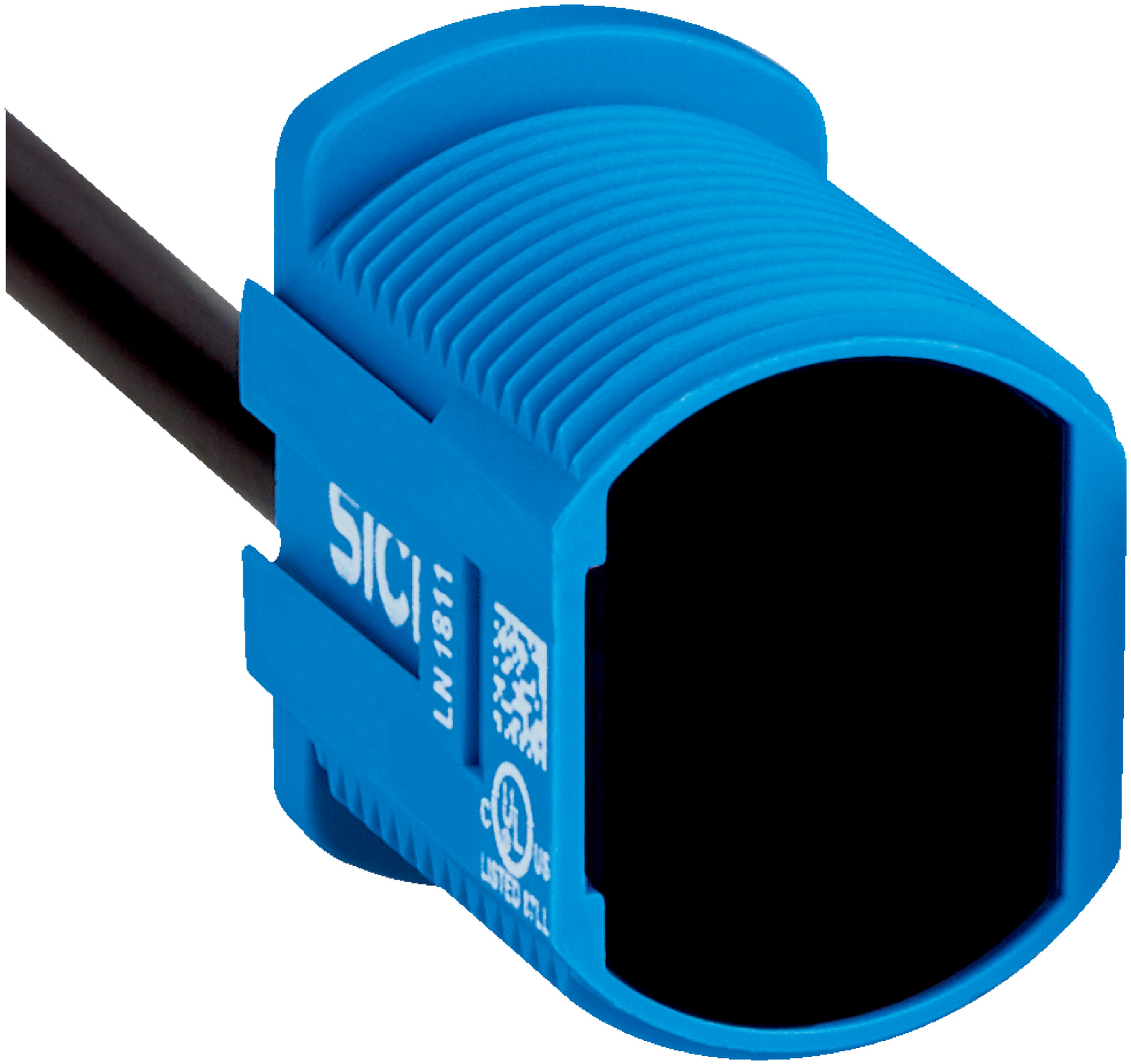

Photoelectric Proximity Sensor M18 | Background Suppression | IP67 Rated | High Switching Frequency | by SICK
The Photoelectric Proximity Sensor M18 is designed for precise object detection in industrial automation, featuring background suppression and a sensing range of 5 mm to 100 mm. With a high switching frequency of 500 kHz and a response time of ≤ 1 ms, this sensor is perfect for manufacturing process control and robotics applications, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 15 mA
- Switching output: NPN, light switching
- Output current max: 100 mA
- Switching frequency: 500 kHz
- Response time: ≤ 1 ms
- Cable material: Plastic, PVC
- Conductor cross section: 0.13 mm²
- Protection class: III
- Housing material: Plastic, ABS
- Optics material: Plastic, PMMA
- Enclosure rating: IP67
- Operating temperature: –40 °C to +55 °C
- Storage temperature: –40 °C to +70 °C
- Dimensions (H x L x W): 21mm x 23mm x 14mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Hybrid housing design with M18 thread diameter
- Sensing range from 5 mm to 100 mm
- Infrared light source with PinPoint LED
- Light spot size Ø 8 mm at 100 mm distance
- High switching frequency of 500 kHz
- Response time ≤ 1 ms
- Cable with M8 male connector, 4-pin, 500 mm length
- Enclosure rating IP67 for dust and water protection
- Wide ambient operating temperature range from –40 °C to +55 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper mounting and wiring.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Robotics and material handling
- Packaging and assembly lines
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with efficient infrared LED technology
- Durable IP67 rated housing reduces waste from replacements
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

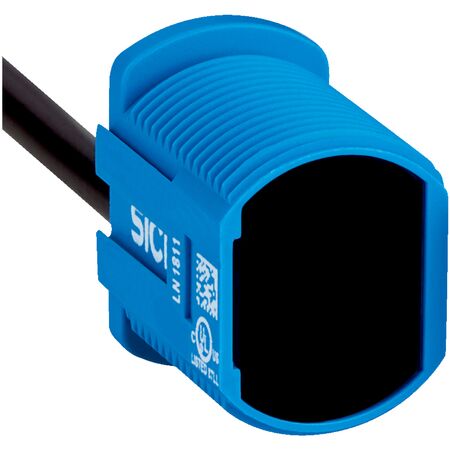

The SICK ZTB18-9NZ3D1D04 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
