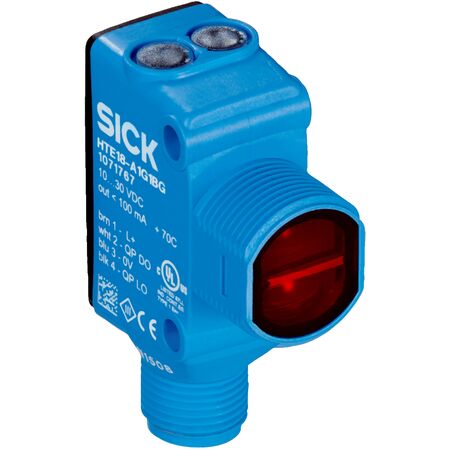

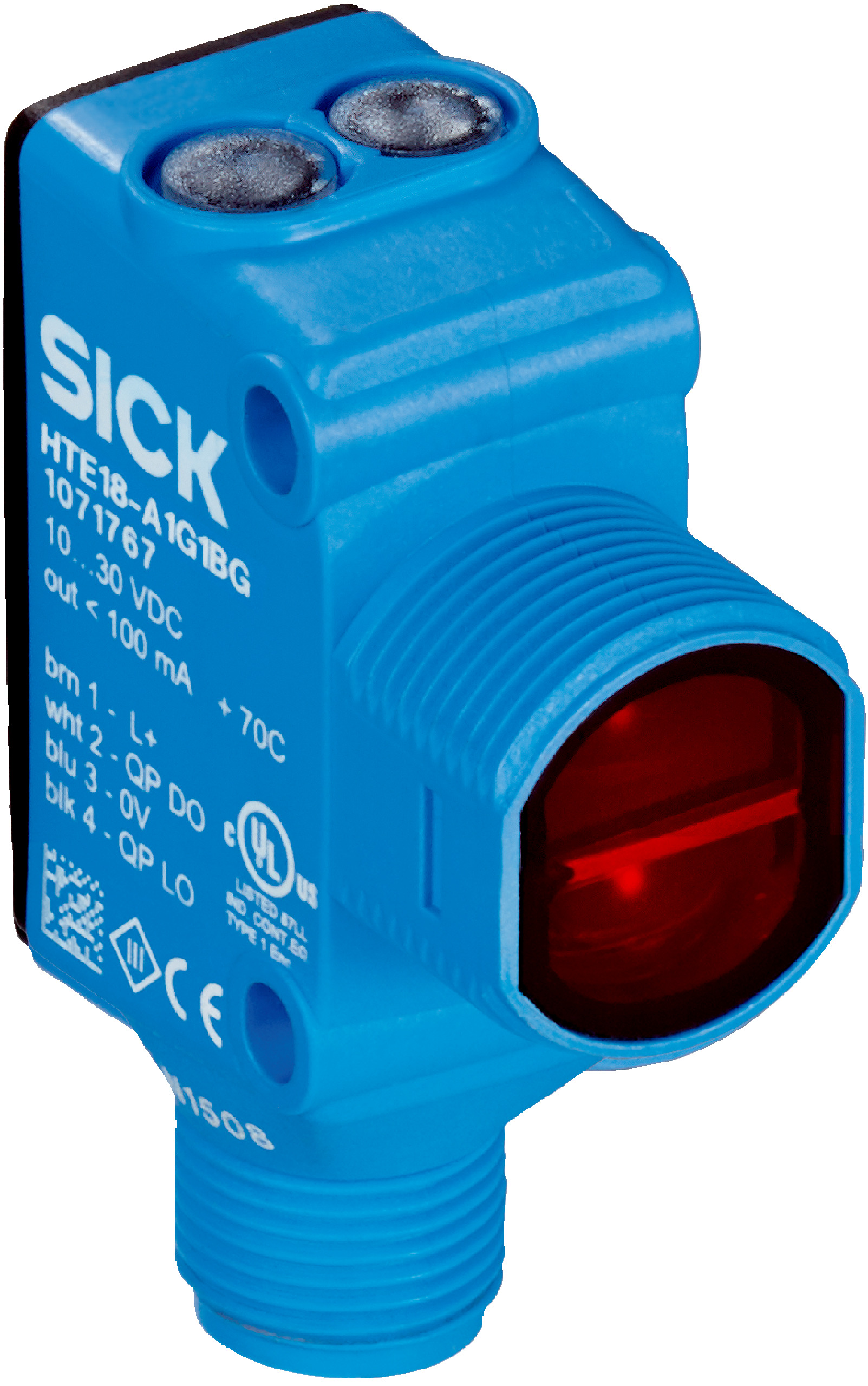

Photoelectric Proximity Sensor M18 | Background Suppression | IP67 & IP69K Rated | Fast Response Time | by SICK
The Photoelectric Proximity Sensor M18 is designed for industrial automation, featuring background suppression and a sensing range of up to 300 mm. With a fast response time of ≤ 0.5 ms and IP67/IP69K ratings, it's perfect for harsh environments in manufacturing and packaging applications, ensuring reliable object detection and process control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 20 mA
- Switching output: PNP complementary
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Light source: PinPoint LED, wavelength 631 nm
- Sensing range max: 5 mm to 300 mm
- Housing material: Plastic (VISTAL®)
- Optics material: Plastic (PMMA)
- Enclosure rating: IP67, IP69K
- Connection type: Male connector M12, 4-pin
- Operating temperature: –40 °C to +65 °C
- EMC: EN 60947-5-2 compliant
- Dimensions (H x L x W): 49mm x 32mm x 16mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Visible red light with PinPoint LED
- Sensing range up to 300 mm
- Hybrid housing design with M18 thread diameter
- IP67 and IP69K rated for harsh environments
- Fast response time of ≤ 0.5 ms and switching frequency of 1,000 Hz
- Complementary PNP switching outputs with light/dark switching modes
- Robust plastic housing (VISTAL®) and optics (PMMA)
- Wide operating temperature range from –40 °C to +65 °C
- EMC compliant with EN 60947-5-2
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Packaging machinery
- Material handling systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with ≤ 20 mA current draw
- Durable design reduces waste and replacement frequency
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK HTB18-P4A2BAD04 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
